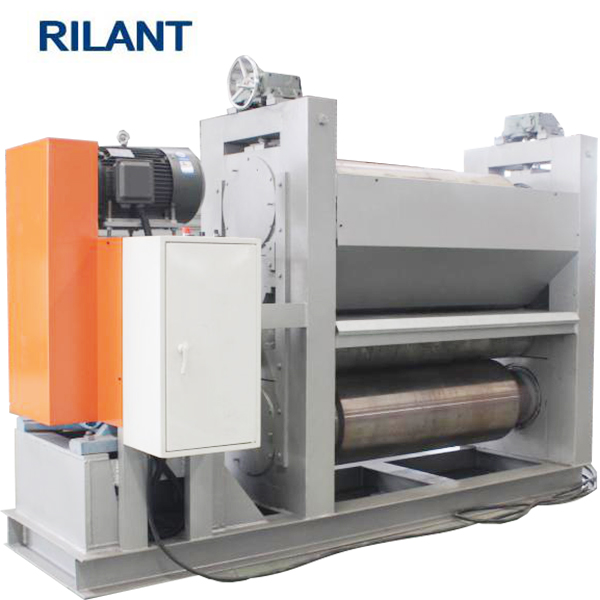

Four Roller Flattening Expanded Metal Mesh Machine 2300 * 1650 * 1930mm Szie

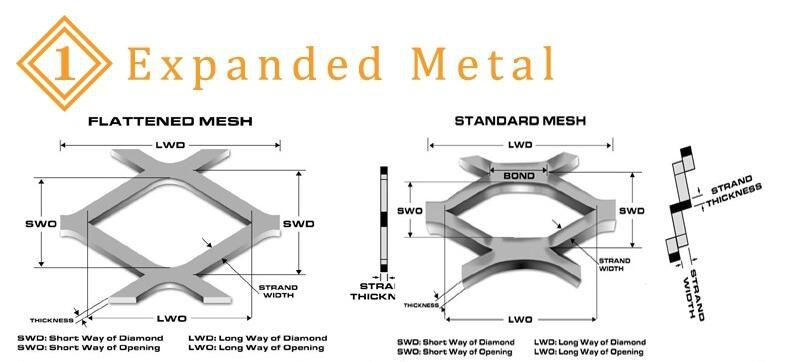

Expanded Metal Machine Four Roller Flattening Machine Flattened expanded metal Mesh

1, General Description

The high speed expanded metal flattening machine is high speed and CE certificated. it is used in filter mesh making, industry, civil architecture, road and railway etc.

2, Machine Specifications

1, Material and thickness: Max.1.5mm

2, Work speed: frequency control

3, Length of working rolls (two middle rolls): 1250mm

4, Diameter of working rolls (two middle rolls): Φ300mm

5, Hardness of working rolls: HRC63.3~63.8

6, Length of support rolls (up and down rolls): 1150mm

7, Diameter of support rolls (up and down rolls): Φ450mm

8, Hardness of support rolls: HRC53.8~54.8

9, Material of roll: high frequency quenching alloy

10, Motor power: 5.5-7.5KW

11, Overall size(L*W*H): 2300*1650*1930mm

12, Weight of machine: about 7.5 T

13, Main drive by special gear motor, adjustable by frequency converter

3, Machine Features

This four flattening machine has very high speed, performance and quality is stable.

4, Our Service

5, Package And Delivery

6, FAQ

SUZHOU RILANT MACHINERY CO.,LTD is a professional enterprise that is specialized in manufacturing, exporting &importing auto machines, moulds, filter components etc.

The main business scope included as below:

1, Die casting- deburring turnkey solution

2, Filtration-turnkey solution

3, Other customized machinery & Line
