POA200 Oxygen Gas Analyzer 32 Bit High Speed Processor For Chemical Equipment

Categories Oxygen Gas Analyzer
Brand Name: PhyMetrix
Model Number: POA-200
Place of Origin: China
MOQ: 1
Payment Terms: T/T,
Delivery Time: 1-2weeks
Portable: 32-bit High Speed Processor
Function: Blueteeth
Product: Portable Trace Oxygen Anlyzer
Weight: 2.85KG
Material: 316 Grade Stainless Steel
Measurement: Oxygen Concentration
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

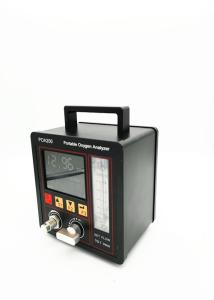

POA200 Oxygen Gas Analyzer 32 Bit High Speed Processor For Chemical Equipment

Portable Trace Oxygen Analyzer , Oxygen Gas Analyzer , 32-bit High Speed Processor


Introudction

POA200 portable trace oxygen analyzer can provide accurate analysis of trace oxygen using 32-bit high speed processor,advanced sensor signal collection and processing technology ,the range of temperature compensation technology ,has many characteristics,such as high precision ,fast response and repeatability.Suitable for industrial gas,shipping storage,chemical equipment ,oxygen monitoring and other fields.

Technical Index:

PerformanceOperating Conditions
Measurement Ranges0~1%,0~5%,0~10%,0~25%,0~100%Auto RangeOperating HumidityLess than 95%(Non-Condensing)
Resolution0.01%Operating Temp0℃ to +45 ℃
Response Time

<15s


Inlet Gas Pressure0.5-30psig
Accuracy+/-1% FSFlow Rate<1 LPM
Electrial SpecificationsMechanical Specifications
Display3.5”LCD,320*240 Screen ResolutionProtectionIntnsically Safe,Class 1,Div 1 Group B,C,D
BatteryLi-ion rechargeable,8 hours on full chargeDimensions

Height:7.08”

Width:5.60”

Depth:5.75”

Input Charge Voltage115/230VACWeight2.85KG

Rugged yet Lightweight

The POA 200 is constructed with 316 grade stainless steel. A capative sealed, glaned cable connector offers IP68 protection from any harsh environment.

At only 2.85kg, this portable analyzer can be comfortably carried around via the supplied shoulder strap or the carrying case. Powered by an internal battery, it provides the user with an operation window of 16 hours continuously on full charge. Making it ideal to make measurements in various locations.
