Class 800 LB Y Pattern Globe Valve , Forged Steel A 105 Threaded Globe Valve

Y Pattern Globe Stop Valve in Forged Steel A 105, Threaded Ends with 800Lb


PRODUCT INTRODUCTION


Description

Forged steel Y-pattern globe valve are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint,spiral wound gasket, made in F304/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
The Y-pattern valves are available in globe and check design configurations.


Globe Stop Valve Design Features

  • Y type design posses optimizing Cv value.
  • Threaded bonnet, can be designed to be welded or removable structure
  • Rotate-Rising stem
  • Low flow coefficient.
  • Body and bonnet joint accurately machined.
  • Secondary throttling face design which reduces the erosion of sealing surface.
  • Integral HF seat
  • Hightly-density and sharped flexible graphite gasket.
  • Electric or pneumatic actuator is optional
  • Y pattern body with inclined stem. This design allows less fluid turbulence and higher flow coefficient values when compared to T pattern.

Specification


Conform to ANSI B16.34. Each are tested according to API598, and marking is per MSS SP-25.

Y -pattern globe valve 1/2''-2'' with 800Lb,

Pressure seal Y-pattern globe valve 1/2''-2'' with 900-1500Lb



Globe Stop Valve Drawing and Datasheet

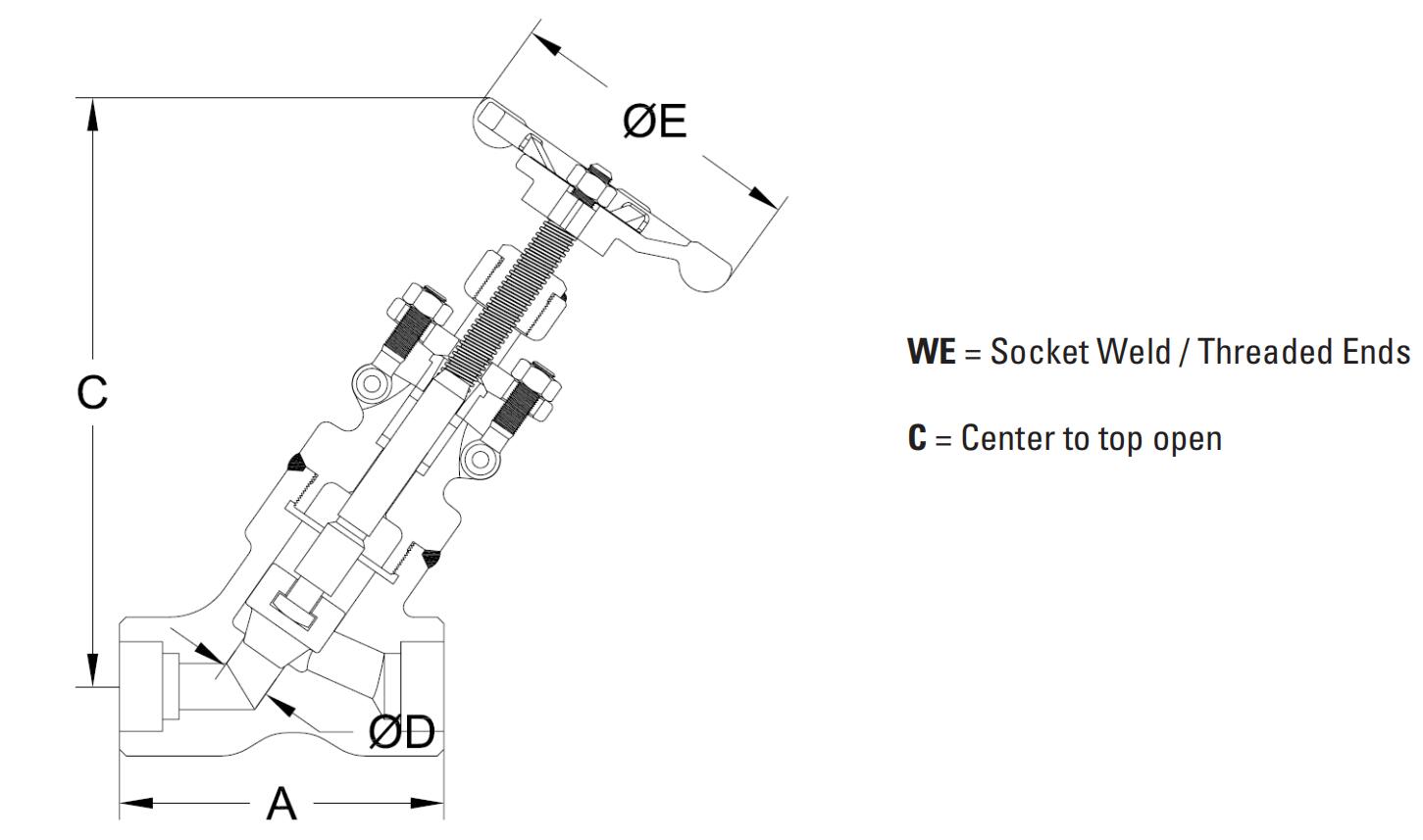

Main dimensions of Y pattern globe valve

SIZE

ASME 800
Bolted BonnetWelded Bonnet
Standard BoreStandard Bore
inACDEACDE
mmWEWE
½4.176.70.393.94.176.50.393.9
131061701010010616610100
¾4.176.70.53.94.176.50.53.9
191061701310010616613100
14.7280.694.94.727.80.694.9
251202021812512019718125
1¼5.989.80.916.35.989.60.916.3
321522492316015224323160
1½5.989.81.126.35.989.61.126.3
381522492916015224329160
27.0911.11.387.17.0910.71.387.1
501802813518018027235180

SIZE

ASME 1500 & 1690ASME 2500 & 2680
Bolted BonnetWelded BonnetWelded Bonnet
Standard BoreStandard BoreStandard Bore
inACDEACDEACDE
mmWEWEWE
½4.727.90.394.94.727.60.394.95.989.60.436.3
13120200101251201921012515224311160
¾4.727.90.54.94.727.60.54.95.989.60.556.3
19120200131251201921312515224314160
15.989.80.696.35.989.40.696.37.0911.40.757.9
25152250181601522401816018029019200
1¼5.989.80.916.35.989.40.916.37.8713.20.989.8
32152250231601522402316020033525250
1½7.0911.11.127.17.0910.71.127.17.8713.21.19.8
38180283291801802732918020033528250
27.8712.81.387.97.8712.41.387.99.0615.41.3811.8
50200324352002003163520023039035300
