| Categories | Hot Dip Galvanizing Furnace |
|---|---|
| Brand Name: | Beihai Galvanizing |
| Model Number: | Non-standard |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | No limit |
| Delivery Time: | 30-120 working days |
| Packaging Details: | Like wooden box, suit for shipping and lifting |
| Size: | customized furnace size |
| Color: | customized furnace color |

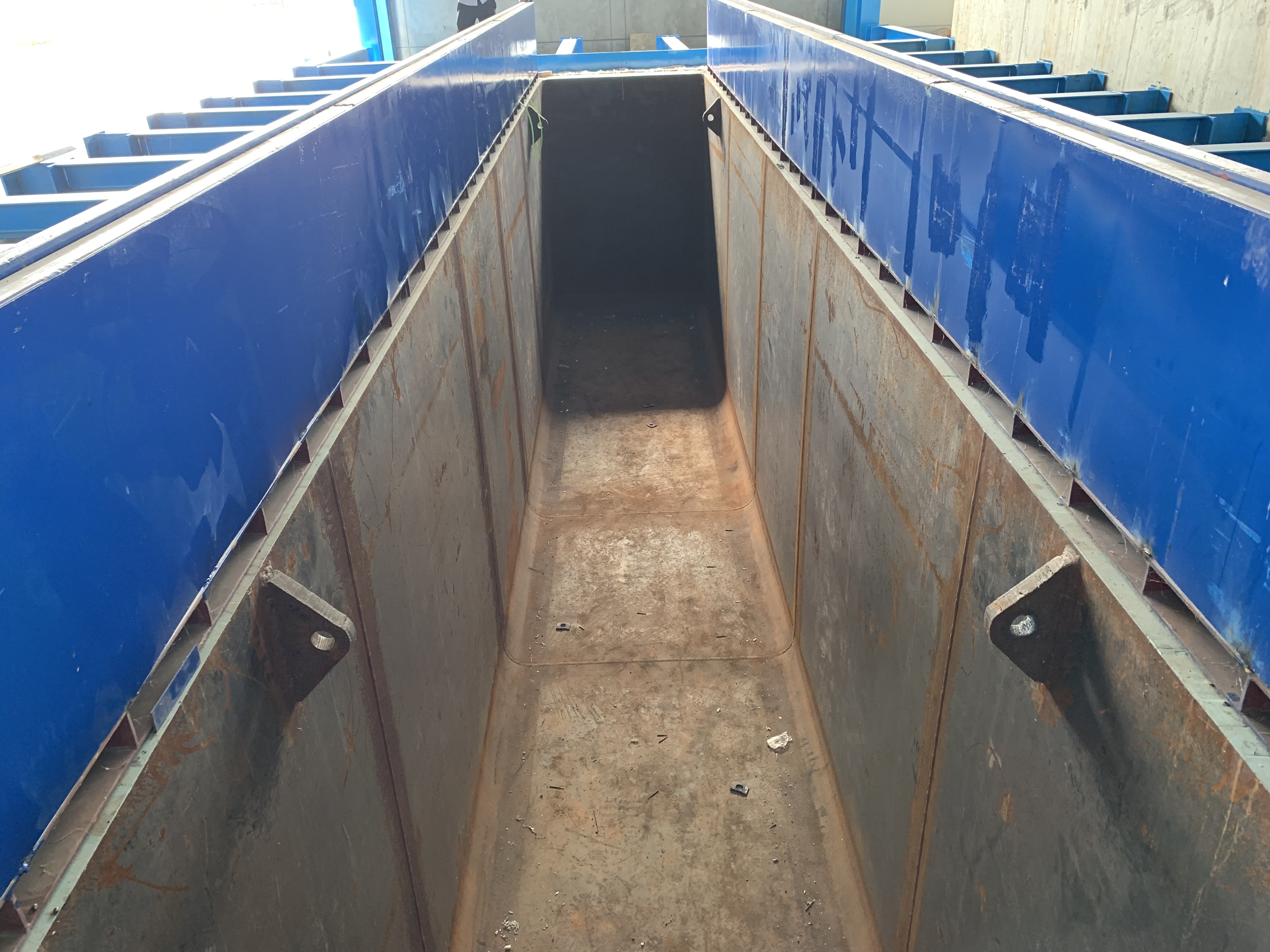

| Shape: | U-shape steel structure furnace |
| Usage: | support the zinc kettle and keep the heat |
| Heat source: | Natural Gas LPG LNG |
| Advantage: | heat even and fast |
| Company Info. |
| Weifang Xinbeihai Hot Dip Galvanizing Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
High Velocity Pulse Fired Furnace Specialized for Hot Dip Galvanizing Zinc Kettle Bath Pot
Product Description
Automatic temperature control—PLC accurate temperature control system
High velocity pulse firing burner—KromSchroder, prolong the working life of zinc kettle
Ceramic fiber module lining—light weight, low heat absorption, fast installation
Touch screen control system— Siemens, humanized design, easy to operate
Remote monitoring system— Mobile app, scientific control system
Technical specification
1 | Dimension | customized dimension | |
2 | Fuel | Gas, LNG, LPG | |
3 | Furnace temperature | 650°C | |
| 4 | Working temperature | 435℃-450℃ | |
| 5 | Power supply | 380V/220V/50Hz, 3phase etc. | |
| 6 | Control mode | Zone A/B big-small fire auto control |
Main parts
Refractory insulation materialsFurnace steel structureCombustion system and control system
| 1 | Refractory insulation materials | 1260℃ ceramic fiber module, Curing agent, Stainless steel SUS 304 module anchor, 1400℃ fireproof plate, Refractory brick. |
| 2 | Furnace steel structure | U shape support, Furnace steel plate, Stainless steel supporting rod SUS 310S. |

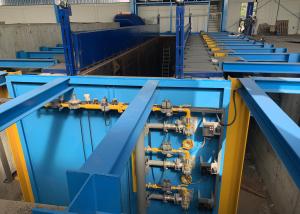

| 3 | Combustion system and control system | Germany imported KromSchroder system-burner with automatic control system(including Siemens PLC touch screen)and remote monitoring system, temp. display screen. |
Advantages
Suit for the general products
Modifiable size and customized design
Superior safety and reliability
Precise burner location
High velocity pulse-firing system
Automatic temperature control
Cyclic and even heating
Preassembled, fast and simple installation
Favorable price and long service life
Can enlarged in the future
Designed with molten zinc drain holes
Business Scope
The design, manufacture, installation, commissioning and training of
the hot dip galvanizing lines. And the improvement of old galvanizing plants.
Contact Us
If that product interest you, please contact us.
Meanwhile, please tell us the following information.
Materials to be galvanized
Biggest dimension or kettle size
Maximum weight
Maximum capacity per year
Power source
Fuel
|
