Sanhe DCS-1500L High Accuracy IBC Liquid Filling Machine With Weighing Scale

Categories IBC Filling Machine
Brand Name: Sanhe
Model Number: DCS-1500L
Certification: ISO9001:2015, CE
Place of Origin: Suzhou
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1200 Sets/Year
Delivery Time: Negotiable
Packaging Details: Wood Pallet
Product Name: IBC Filling Machine
Function: IBC Filling Weighing Filling Packing
Production Capacity: 1200 Sets/Year
Controls: PLC
Powder: Electric
Origin: Suzhou
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Sanhe DCS-1500L High Accuracy IBC Liquid Filling Machine With Weighing Scale

Sanhe DCS-1500L High Accuracy IBC Liquid Filling Machine With Weighing Scale


Main characteristic

 Suit for different kind of pails, cans, drums,ibcs
 Can made into semi-automatic or automatic packing line with drum supplier, conveyor, automatic filling machine, automatic cap supplier, automatic capping machine, pallet magazine, automatic stacking machine.

 The composition of single line filling machine production line to improve yield.


The parameter :
DCS-1500L(BTW) Liquid filling machine(IBC upon liquid surface filling)
Scope of application
Suitable materials
IBC
Feeding type
Upon liquid surface filling
Alternative feeding type
Under liquid surface filling
Technical parameters
Maximum weighing(Kg)
1500
Filling speed(pails/H, cans/H, drums/H IBCs/H)
(dimension of filling lance is DN40, Material supply speed must more than 208L/H)
15
(1000liter/IBC)
Filling accuracy
Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard)

Application :
Drum Filling Machine is based on weighing scale to measure liquid weight filled into all kinds of containers, such as drum, IBC etc.
Widely used in chemical, food, pesticide industries etc.
Suitable for filling Coating, paint, printing ink, adhesive, curing agent, resin, dye, detergent, oil, glycerin, lubricating oil, edible oil, essence, solvents, additives, food additives, pesticides and other hazardous chemical products etc.


Advantages :

High accuracy
Easy clean out and maintence
Operator friendly easy set
Universal and industrial components give the machinery extra long life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packaging System


The parameter and function table of liquid filling machine



DCS-50L(STW)

Liquid filling machine(can or pail upon liquid surface filling)


DCS-250L(STW) Liquid filling machine(drum upon liquid surface filling)


DCS-1500L(SUW-P)

Liquid filling machine(drum or IBC under liquid surface filling)


DCS-1500L(BTW)

Liquid filling machine(IBC upon liquid surface filling)


Scope of application


Suitable materials


10-50L


50-250L


100-250L

IBC

Feeding type


Upon liquid surface filling


Upon liquid surface filling


Under liquid surface filling


Upon liquid surface filling


alternative feeding type


Under liquid surface filling

×

Upon liquid surface filling


Under liquid surface filling


Technical parameters


Maximum weighing

(Kg)

10050015001500

Filling speed(pails/H, cans/H, drums/H IBCs/H)(dimension of filling lance is DN40, Material supply speed must more than 208L/H)

200-300

(30liter/ pail ,

30liter/can)

60


200liter/drum

60


200liter/drum

15


1000liter/IBC


Filling accuracy


Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard)


Control function


Automatic tare


Automatic quick and slow feeding


Automatic free fall compensation


Automatic minus deviation


Automatic over weight alarms


Manual/Automatic mode conversation


Communication port


Regulatory function


Adjusting the height of filling lance function


horizontal slip filling lance function

×

Filling protect function


Self protection when the filling lance not in the right position to filling

××

If there is no pail, can, drum or IBC, filling machine not filling.


Automatic anti-leaking


Time control to prevent spilling


Liquid level detecting to prevent spilling

××

Safety protection function


Gas exhausting


Filling Nitrogen

××

electrostatic grounding


Protection function when lose power


Emergency stop


EX-proof function


Mark: “○”is standard function;“▲”is choose function ;“×”is not has function


Function

**Load cell measuring mode.

**Waterproof load cells.

**Height can be adjusted to accommodate several pails with different size.

**leak-proof device. It makes up of a cylinder and a drib-proof cup.

**a stopper made of PTFE to stop drip after filling.

**Fast / Dribble Feed Control.

**Digital display. Displays gross, net, tares automatically, automatic free fall compensation.

**Over weight and under weight Alarms.

**Maintenance diagnostics/weighing & safety alarms.

**Manual/Auto mode control.

**The filling time has to be limited. If after the set time has elapsed, the required weight has not been reached the filling process is not progressing according to normal operation, then it should be stopped.

**The filling machine has safety features that filling can only be started if Pail is placed on the electronic scale and the lance is inserted property into filling vessel.

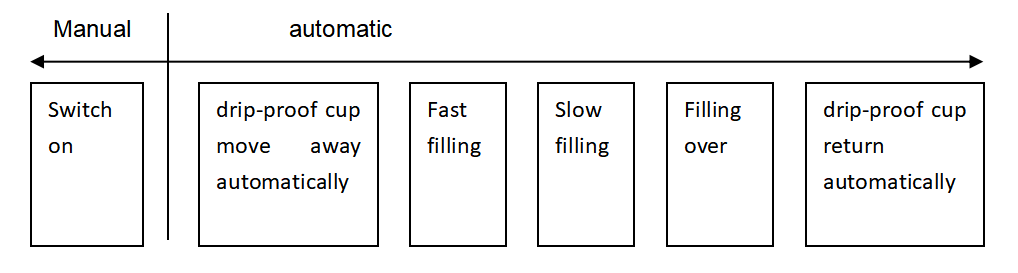

Process description


10L-50L Semi Automatic Liquid Weighing Filling Packing Machine 300 Drums Packing Per Hour 1


The suppliers of main parts

Weighing Controller : METTLER TOLED

Load Cell : METTLER TOLED

PLC : MITSUBISHI FX-1N

Pneumatics Equipment : FESTO,AIRTAC


FAQ of Liquid filling Machine :

The follwing questions for us to help you find what you want ?

1, The liquid name to be filled ?

2, The liquid features ,such as viscosity ?

3, how many Liters per unit ?

4. how many packing speed ? unit/ hours ?


Our core products is :
Big bag packing machine. 5kg-50kgs.

Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.

Sanhe--A wellknown packing and palletizing manufacture from China
