Vacuum Simulation Lab Drying Oven Inert Gas Heat Treat with Nitrogen Boost

Categories Lab Drying Oven
Brand Name: ATMARS
Model Number: ANO SERIES
Certification: ISO, CE
Place of Origin: Guangdong, China
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35 Sets Per Month
Delivery Time: 25 Working Days
Packaging Details: Wooden Box
Capacity: 640L, 2250L or Custom
Application: Inert atmosphere drying and heat treatment
Power Supply: Single Phase, 220V, 50Hz
Temp. Range: Custom
Heater: Nichrome Resistance Wire Heater
Oxygen Content: ≤2%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

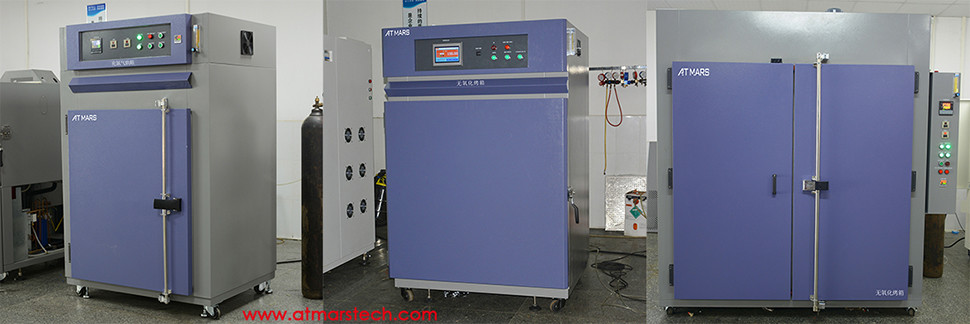

Vacuum Simulation Lab Drying Oven Inert Gas Heat Treat with Nitrogen Boost

Vacuum Simulation Inert Gas Heat Treat Drying Ovens with Nitrogen Boost


What is an Inert Gas Drying Oven ?
Inert Gas Ovens from ATMARS are deal for industrial oven applications that involve processing materials in a controlled atmosphere (vacumm like, non-oxidizing) environment by introducing Nitrogen gas or other inert gases into tank.


Techinical Specifications of ANO Series - Inert Gas Ovens
Performance is based on ambient temperature +20 ℃, empty load no specimen.
ModelANO-640AANO-640BANO-2250B
PerformanceTemperature Range(RT+10℃) to +150℃(RT+20℃) to +280℃(RT+20℃) to +280℃
Temperature Fluctuation±0.5℃±0.3℃(RT to +100℃);
±0.4℃(+101℃ to +250℃)
±0.3℃(RT to +100℃);
±0.4℃(+101℃ to +250℃)
Temperature Uniformity≤±2.0℃ (RT to +100℃);
≤±2.5℃ (+101 to +150℃)
≤±1.0℃ (RT to +100℃);
≤±1.5℃ (+101 to +280℃)
≤±1.0℃ (RT to +100℃);
≤±1.5℃ (+101 to +280℃)
Temperature Deviation≤±2.0℃≤±1.0℃≤±1.0℃
Temperature Overshoot≤±2.0℃
Heat-up TimeFrom +25℃ to +150℃ in 40min.,
average temperature change rate
From +25℃ to +280℃ in 40min.,
average temperature change rate
From +25℃ to +280℃ in 40min.,
average temperature change rate
Oxygen Content≤2%
Workspace Volume640L640L2250L
Workspace DimensionsW800xH1000xD800mmW800xH1000xD800mmW1500xH1500xD1000mm
Exterior DimensionsW1200xH1560xD1050mmW1200xH1560xD1050mmW1900xH2400xD1250mm
MaterialInterior#SUS304 Stainless Steel
SealImported silicone seal
Insulation100mm Mineral wool
ExteriorCold-rolled steel with powder coated surface
SystemHeatingNichrome resistance wire heater
AirflowVertical-type, forced air circulation
ControlButton setting digital Omron Temperature Controller or Option touch-screen programmable temperature controller
Noise Level≤70dB (A-weighted sound pressure level measured at a distance of 1.0 meter)
Allowable Ambient ConditionsTemperature: +5℃ to +35℃;
Relative humidity: ≤85%RH (No condensation);
Air pressure: 86kPa to 106kPa.
Electrical SupplyAC 220 (1±10%)V (50±0.5)Hz Single Phase 2 Wire plus Earth Wire
▲Custom options are available.
