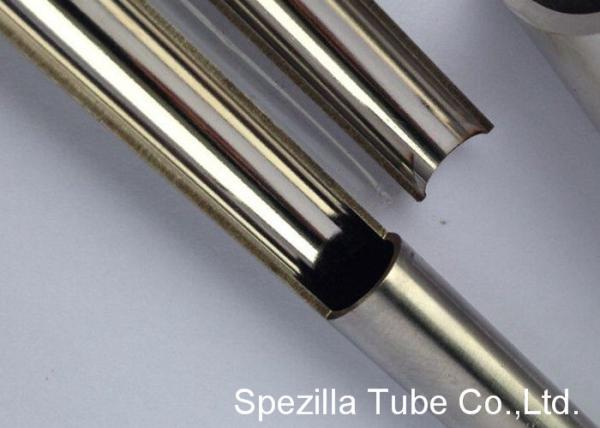

Seamless High Purity Stainless Steel Tubing Custom Lengths / Sizes 0.4um Surface

TP316 / 316L Stainless Steel Tube High Purtiy ASME SA213 / ASTM A269 / ASTM A270

Features:

Spezilla manufactures electropolished seamless and welded stainless steel tubing for service in applications requiring finishes to 15Ra maximum. 20Ra ID/30Ra OD and 15Ra EP ID/30Ra OD tubing available in sizes from 1/2'' through 6" OD. This full finished stainless steel tubing is available from stock or direct from the mill in 20' lengths. All electropolished tubing is fully tested and marked per ASTM A450 requirements. :

1. ASTM A213 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.

2. ASTM A249 Welded Austenitic Steel Boiler, Superheater, Heat Exchanger, and Condenser Tubes.

3. ASTM A269 Seamless and Welded Austenitic Stainless Tubing for General Service.

4. ASTM A270 Standard Specification for Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing

4. ASTM A450 General Requirements for Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes.

5. ASTM A632 Seamless and welded Austenitic Stainless Steel Tubing (Small-Diameter) for General Service.

Descriptions:

Chemical Compositions:

Mechanical Properties:

Quality Assurance:

Spezilla's Electropolished stainless steel tubing are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

8. Ultrasonic Test

Applications:

Spezilla's Electropolished stainless steel tubing is widely used in semiconductor, pharmaceutical, medical, food processing, biotechnology, and telecommunication industries because of the high degree of purity and low surface roughness.

1. Semiiconductor

2. Pharmaceutical

3. Medical

4. Food & Beverage Processing

5. Biotechnology

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
