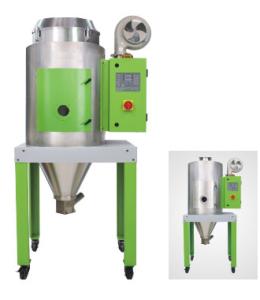

Heat Insulation Type Automatic Hopper Loader Excellent Sealing Effect
Descriptions :
EHD series adopt even hot air and high performance hot air diffusing device to keep drying temperature even and improve drying efficiency. Full digital type P.I.D temperature control technology, LED panel display status. With over-heat protection device and heater over-temperature fusing protection can reduce accidents caused of artificial or mechanical fault. EHD-50 and bigger models adopt open enable type material visible door with good sealing effect and convenient to clean material. And the unique down blowing air pipe design can evenly disperse hot air, keep plastic drying and increase drying efficiency.
| Main Technical Parameters | |||||
| Model | EHD-12 | EHD-25 | EHD-50 | EHD-75 | EHD-100 |
| Drying Heater (kw) | 2.2 | 3 | 4 | 4.5 | 6 |
| Blower Power (kw) | 0.05 | 0.135 | 0.17 | 0.17 | 0.2 |
| Barrel Capacity (L) | 20 | 40 | 80 | 120 | 160 |
| Air Inlet Pipe Dia.(inch) | 2 | 2 | 2 | 2 | 2.5 |
| Air Outlet Pipe Dia.(inch) | 2 | 2 | 2 | 2 | 2.5 |
External Dimension Of Hopper Dryer (WxDxH,mm) | 730x575x325 | 760x640x390 | 940x722x475 | 1210x722x475 | 1255x822x575 |
Foot Frame Dimension (W1xD1xH1,mm) | 790x450x550 | 790x550x450 | 840x730x560 | 840x730x560 | 920x652x795 |
| Weight (kg) | 40 | 45 | 50 | 60 | 90 |
| Main Technical Parameters | |||||
| Model | EHD-150 | EHD-200 | EHD-300 | EHD-400 | EHD-500 |
| Drying Heater (kw) | 6 | 12 | 12 | 18 | 18 |
| Blower Power (kw) | 0.2 | 0.32 | 0.32 | 0.4 | 0.55 |
| Barrel Capacity (L) | 230 | 300 | 450 | 600 | 750 |
| Air Inlet Pipe Dia.(inch) | 2.5 | 3 | 3 | 4 | 4 |
| Air Outlet Pipe Dia.(inch) | 2.5 | 3 | 3 | 4 | 4 |
External Dimension Of Hopper Dryer (WxDxH,mm) | 1505x822x575 | 1450x945x695 | 1850x945x695 | 1820x1170x915 | 2100x1170x915 |
| Foot Frame Dimension (W1xD1xH1,mm) | 920x652x795 | 970x790x930 | 970x790x930 | 1130x1000x1200 | 1130x1000x1200 |
| Weight (kg) | 100 | 130 | 160 | 200 | 220 |
| Main Technical Parameters | |||||
| Model | EHD-600 | EHD-800 | EHD-1000 | EHD-1300 | EHD-1600 |
| Drying Heater (kw) | 18 | 18 | 32 | 32 | 48 |
| Blower Power (kw) | 0.55 | 0.55 | 3 | 3 | 5.5 |
| Barrel Capacity (L) | 900 | 1200 | 1500 | 2000 | 2500 |
| Air Inlet Pipe Dia.(inch) | 4 | 4 | 5 | 5 | 6 |
| Air Outlet Pipe Dia.(inch) | 4 | 4 | 5 | 5 | 6 |
External Dimension Of Hopper Dryer (WxDxH,mm) | 2070x1410x1050 | 3350x1410x1050 | 2950x1640x1250 | 3350x1542x1250 | 3510x1798x1400 |
| Foot Frame Dimension (W1xD1xH1,mm) | 2760x1130x1130 | 3190x1145x1145 | 3470x1340x1340 | 3870x1340x1340 | 4000x1482x1482 |
| Weight (kg) | 410 | 560 | 680 | 770 | 800 |
| Main Technical Parameters | |||||
| Model | EHD-2000 | EHD-2300 | EHD-2600 | EHD-2900 | EHD-3300 |
| Drying Heater (kw) | 48 | 64 | 64 | 80 | 80 |
| Blower Power (kw) | 5.5 | 7.5 | 7.5 | 11 | 11 |
| Barrel Capacity (L) | 3000 | 3500 | 4000 | 4500 | 5000 |
| Air Inlet Pipe Dia.(inch) | 6 | 6 | 8 | 8 | 8 |
| Air Outlet Pipe Dia.(inch) | 6 | 6 | 8 | 8 | 8 |
External Dimension Of Hopper Dryer (WxDxH,mm) | 3910x1798x1400 | 4310x1798x1400 | 4050x2010x1600 | 4350x2010x1600 | 4650x2010x1600 |
Foot Frame Dimension (W1xD1xH1,mm) | 4400x1482x1482 | 4800x1482x1482 | 4550x1680x1680 | 4850x1680x1680 | 5150x1680x1680 |
| Weight (kg) | 900 | 980 | 1160 | 1260 | 1390 |
| Main Technical Parameters | |||||
| Model | EHD-3600 | EHD-4000 | EHD-4300 | EHD-4600 | EHD-5200 |
| Drying Heater (kw) | 96 | 96 | 112 | 112 | 128 |
| Blower Power (kw) | 15 | 15 | 18.5 | 18.5 | 22 |
| Barrel Capacity (L) | 5500 | 6000 | 6500 | 7000 | 8000 |
| Air Inlet Pipe Dia.(inch) | 8 | 8 | 8 | 10 | 10 |
| Air Outlet Pipe Dia.(inch) | 8 | 8 | 8 | 10 | 10 |
External Dimension Of Hopper Dryer (WxDxH,mm) | 4950x2010x1600 | 4350x2250x1800 | 4650x2250x1800 | 4850x2250x1800 | 5350x2250x1800 |
Foot Frame Dimension (W1xD1xH1,mm) | 5450x1680x1680 | 4870x1930x1930 | 5120x1930x1930 | 5370x1930x1930 | 5620x1930x1930 |
| Weight (kg) | 1480 | 1530 | 1620 | 1730 | 1800 |
|
