PVC LSZH TPU Fiber Patch Cords MU UPC APC Optical Jumpers SM G657A1 Duplex Simplex

MU UPC Single Mode G657B3 Fibre Optical Patch Cord Simplex Cable LSZH

KOCENT OPTEC LIMITED, A Reliable Partner Of Fiber Optic Supplier:
1. With 4 production lines for common type of fiber optic patch cord and pigtail, and closed of QC process, we make sure the lead time and telecom level quantity for all of our patch cord and pigtail order for all of old and new customer.
2. All of our patch cord and pigtail is tested end-face and insertion loss 100% before shipment.
3. Our patch cord and pigtail cataloge include: Single mode (G652D, G567A1, G657A2, G657B3, G655, ...), Multimode (OM1, OM2, Om3, OM4, OM5. With common type connector such as FC, LC, SC, ST, and special type such as: MU, MPO, MTP, DIN, MTRJ, D4, ESCON, FDDI an so on.
4. For sample, we are free for all type of common type of pigtail in quantity less than 5pcs, and for all of common type of patch cord with length less than 1m quantity less than 3pcs.
Sample lead time: 1~2 days
For order more than 5000pcs: about 5 days
For huge order, please contact with our sale team to confirm lead time.

Introduction:

1. Fiber patch cable is the fiber which connects the computer with equipment.

2. It is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical andthe terminal box.

3. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length .

4. The patch cord are factory terminated, assembled, tested and inspected prior to shipment.

5. All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.

6. MU connectors are a 1.25mm diameter ferrule for compact multiple optical connectors and self-retentive mechanism for backplane applications.

7. It’s application is for high-speed data communications, voice networks, telecommunications and high-density DWDM applications.

Application:

1. CATV

2. Active dvice termination

3. Telecommunication networks

4. Metro

5. Local Area Networks(LANs)

6. Data Processing networks

7. Test Equipment

8. Premise installations.

9. Wide Area Networks(WANs)

Feature:

1.Low insertion loss and back reflection loss

2.Good echangeability

3.Good Durability

4.High temperature stability.

5.Standard: Telcordia GR-326-CORE

6.Precise connector

7.Excellent mechanical capability

8.Patch cords accord with bellcord GR-326 ,ISO9001,ROHS

Technical Standard:

1. Insertion Loss:

UPC ≤ 0.2dB

APC ≤ 0.3dB

Typical: 0.1dB;

2. Return Loss:

SM UPC ≥ 55dB, APC ≥ 65dB;

MM UPC ≥ 35dB

3. Interchangeability: ≤0.2dB

4. Salt Spray : ≤0.2dB

5. Repeatability : (1000 times) ≤0.1dB

6. Vibration: (550Hz 1.5mm) ≤0.1dB

7. High Temperature : ( +85 sustain 100 hours) ≤0.2dB

8. Low Temperature : (-40 sustain 100 hours) ≤0.2dB

9. Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB

10. Humidity : (+25+65 93 R.H.100 hours) ≤0.2db

11. Apex Offset: 0μm≤≤50μm

12. Radius of Curvature: 7mm≤≤25mm

13. Cable Type: Simplex, Duplex, Fan-Out, Branch Out;

14. Connector Type: LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.

15. Fiber Mode: SM (single mode) G652D, G655, G657

MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125, 40Gbs/100Gb/s 50/125)

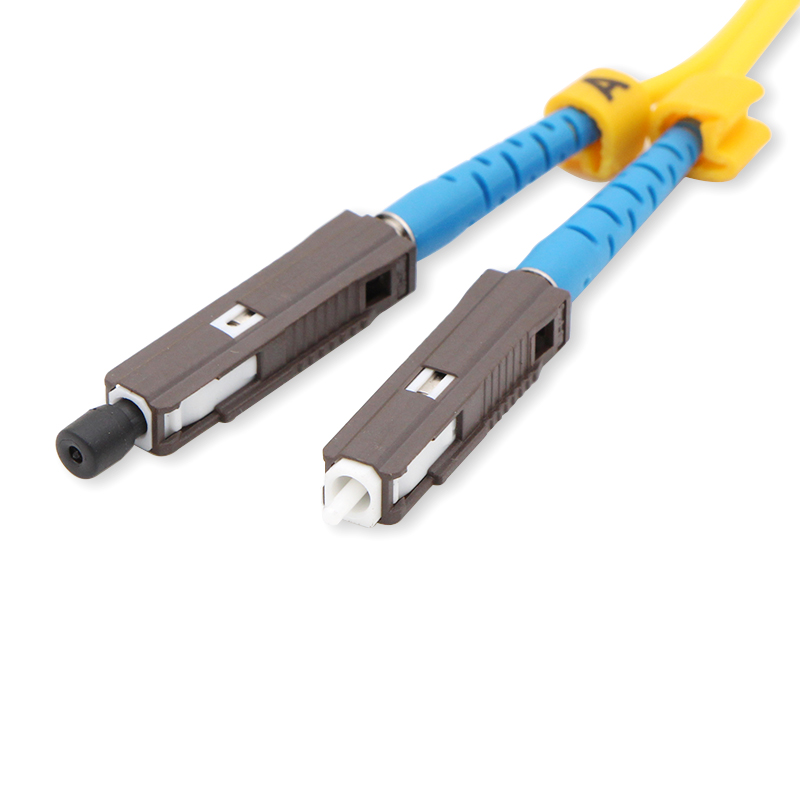

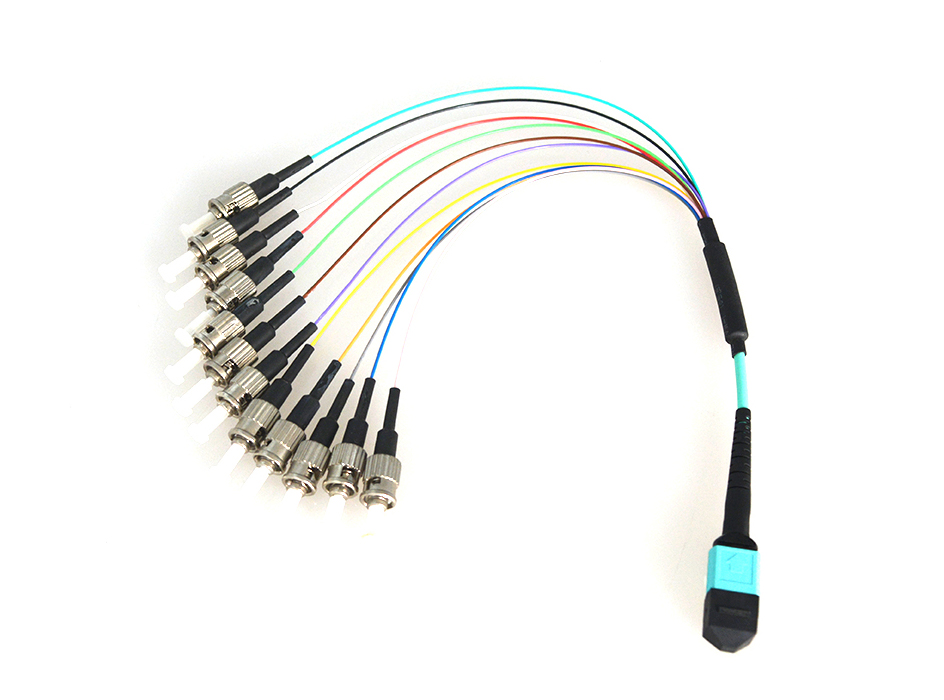

Product Photo:

Category:

1. FC patch cable, SC patch cable, ST patch cable, LC patch cable, MTRJ patch cable, MPO patch cable, MU patch cable, SMA patch cable, FDDI patch cable, E2000 patch cable, DIN patch cable, D4 patch cable and so on.

2. Normal fiber optic patch cable: FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on

Patch cable length: 0.5m, 1m, 2m, 3m, 5m, 10m and so on

Technical Data:

Data

Unit

FC, LC, SC Jumper

SR, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insert loss

DB

≤0.3

≤0.2

≤0.3

≤0.3

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

DB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Work wavelength

NM

1310,1510

1310,1510

1310,1510

1310,1510

Interchange ability

DB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

DB

≤0.2

≤0.2

≤0.2

≤0.2

Work temperature

℃

-40 to 75

-40 to 75

-40 to 75

-40 to 75

Install temperature

℃

-40 to 85

-40 to 85

-40 to 85

-40 to 85

Fiber OD

MM

3.0/2.0/0.9

3.0/2.0/0.9

3.0/2.0/0.9

3.0/2.0/0.9

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
