Large Span PEB Steel Buildings / Pre Engineered Building Systems Construction

Categories PEB Steel Buildings
Brand Name: Ruly Steel
Model Number: Ruly0010
Certification: SGS, BV,ISO
Place of Origin: China
MOQ: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month
Delivery Time: 30 Days
Packaging Details: As request
Application: Large Span PEB Steel Buildings
Usage: Pre Engineered Building Systems,Steel Structure Workshop
Service: Pre Engineering Buildings
Raw steel material: Q235B, Q355B
Surface treatment: Painting or Hot-dip Galvanize
Wall and Roof: Steel cladding
Columns and Beam: H Section Column&Beam
Installation: Engineer guidance on site
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Large Span PEB Steel Buildings / Pre Engineered Building Systems Construction


Large Span PEB Steel Buildings / Pre Structured Building Systems Construction


Project description:

Large Span PEB Steel Buildings / Pre Structured Building Systems Construction. This PEB steel building is used as a automobile parts storage warehouse. The construction floor area is about 13000 square meters. We provide wleded steel beam&column, roof and wall panel, purlin, window and doors and other accessory.

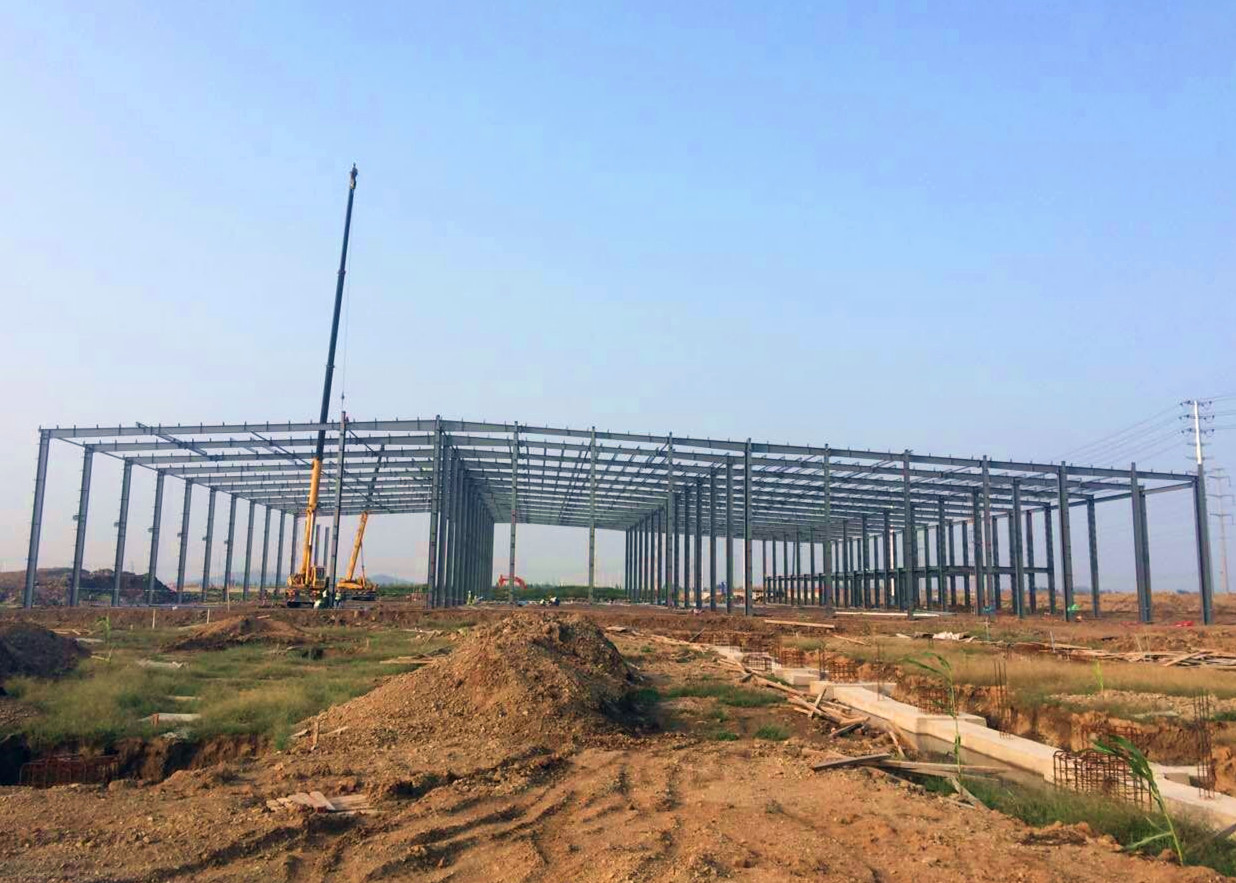

1. Main steel frame structure

2. End wall section

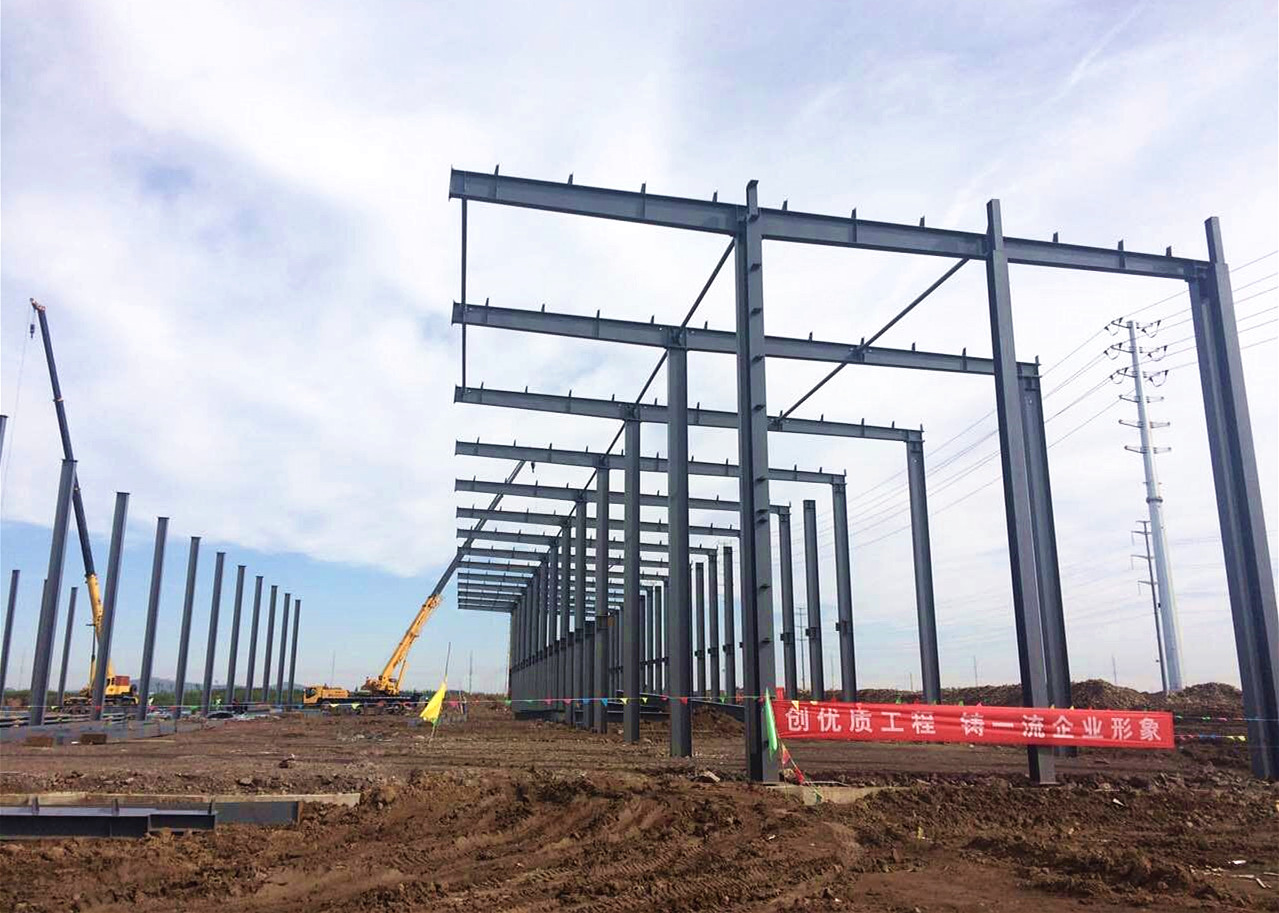

3. H section steel column on site

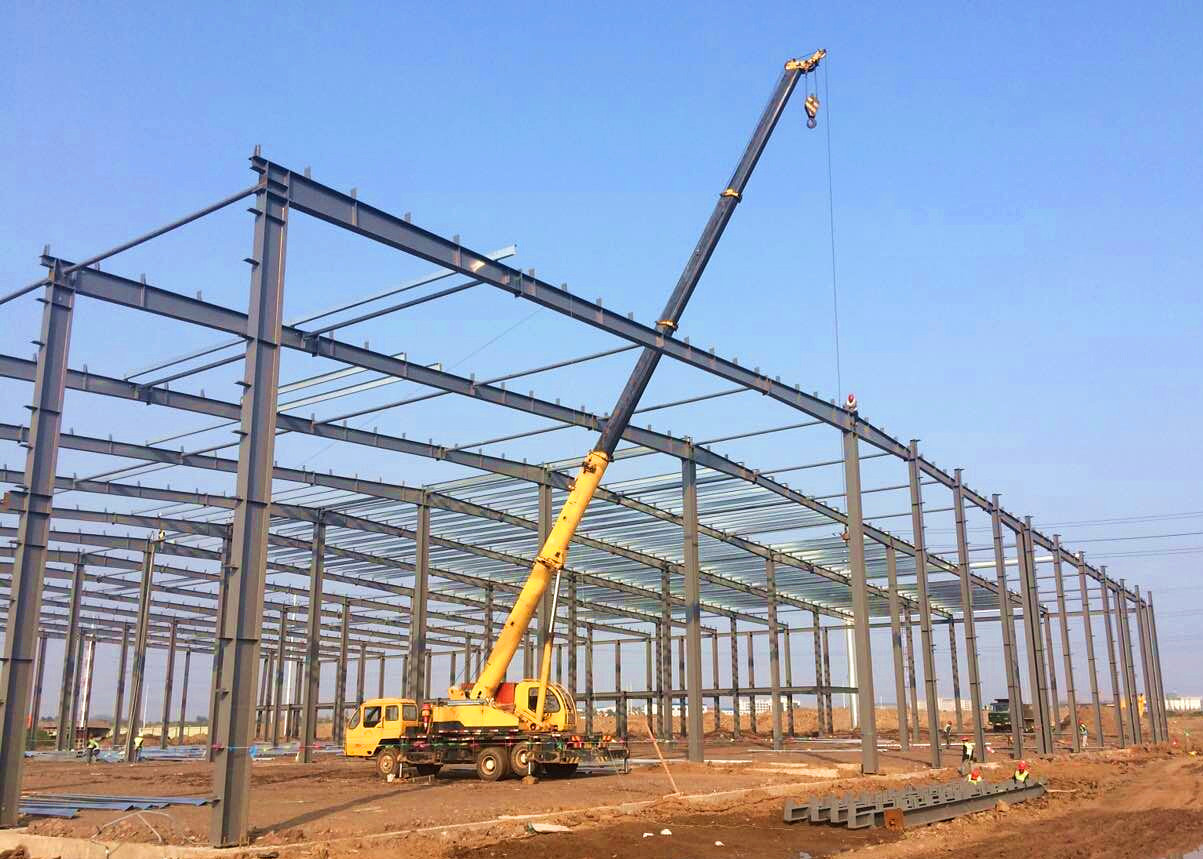

4. Lifting for steel beam

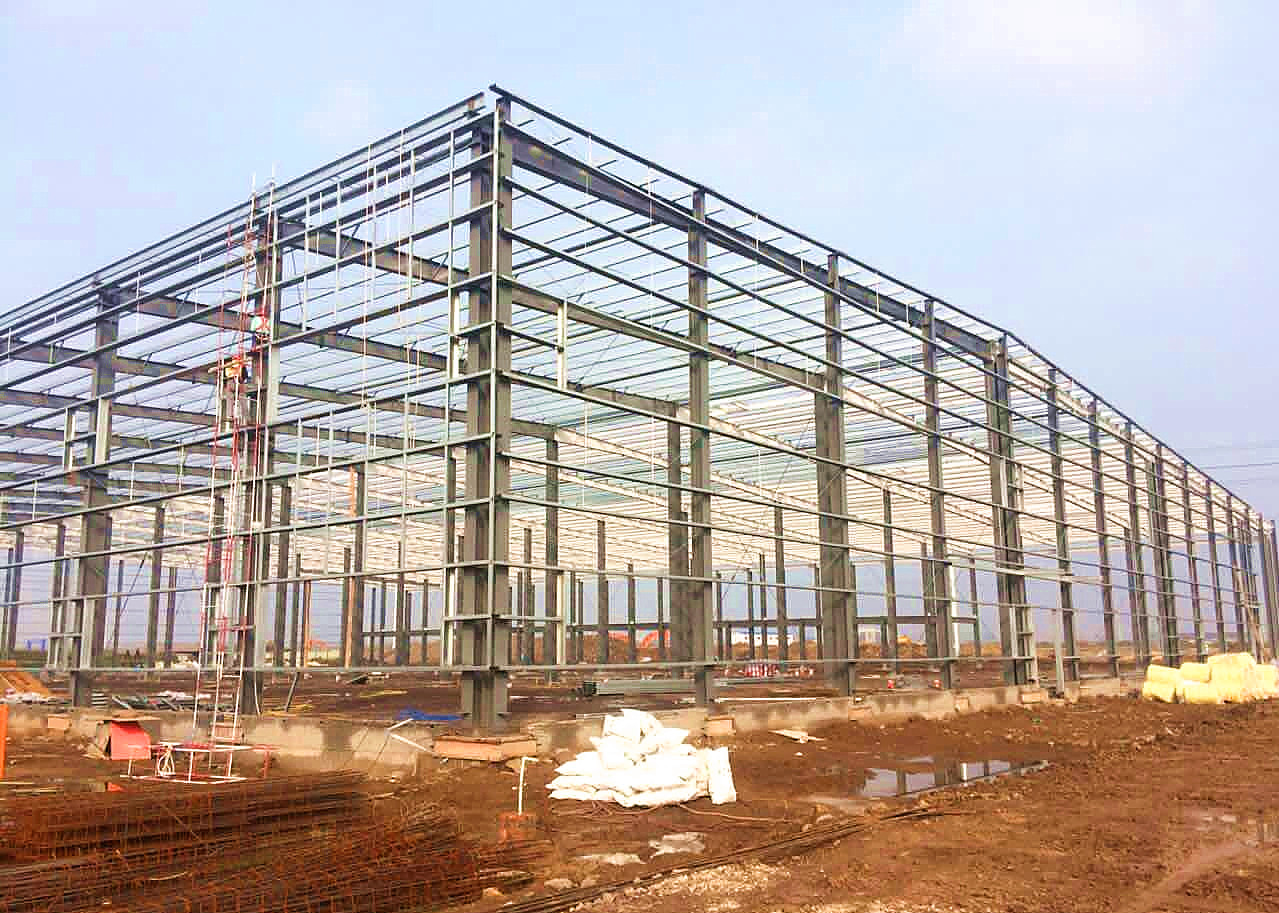

5. Laying for purlin

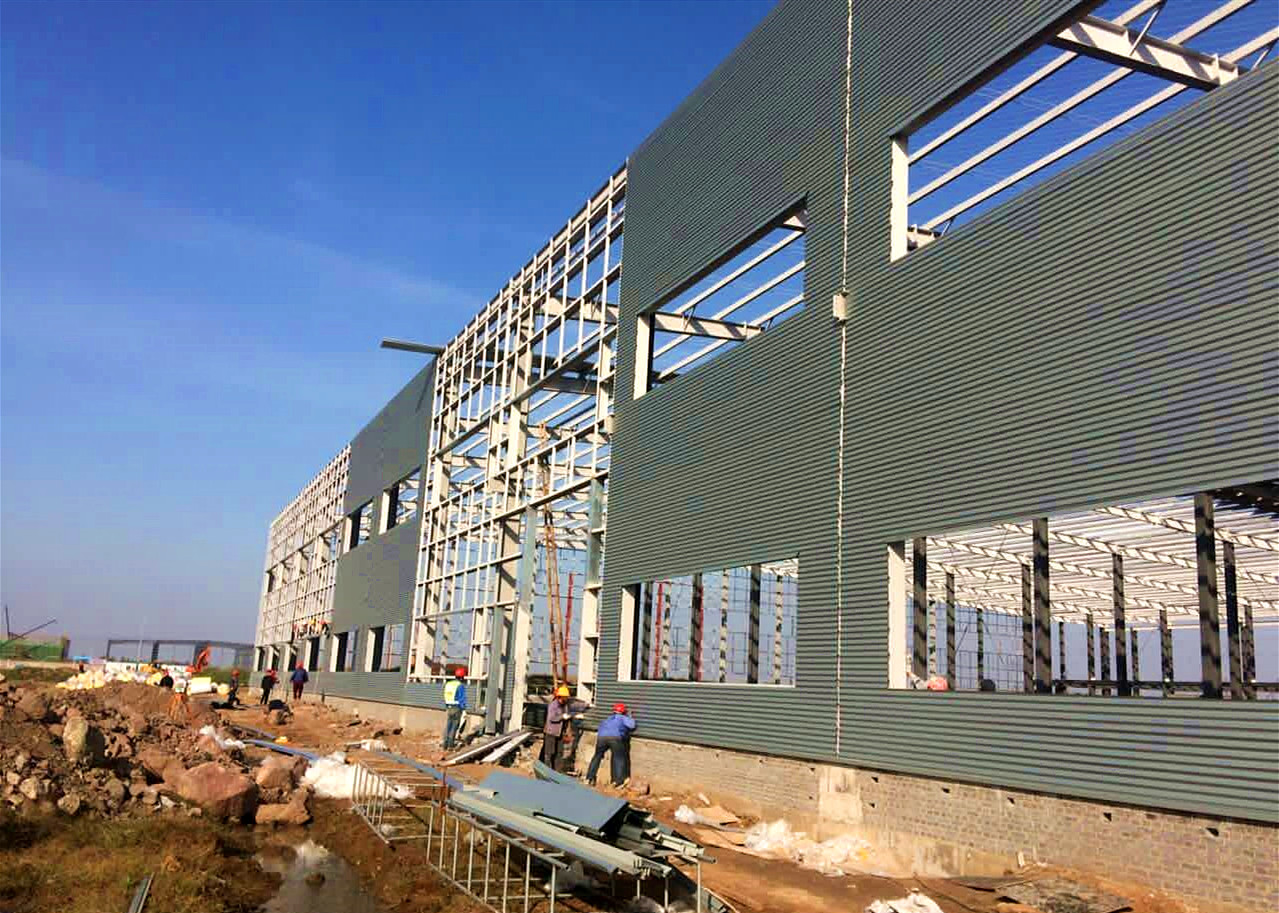

6. Laying for wall panel


Product Description:

NameLarge Span PEB Steel Buildings / Pre Structured Building Systems Construction
DimensionLengthH beam:400-1500mm
Thickness

web plate: 6-32mm

wing plate: 6-40mm

Height200-1200mm
coloraccording to customers
sizeMOQ is300m2,wideth*length*eave height

Advantage

1. low cost but beautiful out look

2. high savety performance

3. easy to assemble and dismantle

4.manufacture under under complete quality control system ISO9001

5. Installation with instruction of experiance engineers.

6. Non-pollution


Main

components

basecement and steel foundation bolts
Main frameH beam
MaterialQ235B, Q345B or others as customer's request
PurlinC or Z purlin,size from C120-C320,Z100-Z20
bracingX-type or other type bracing made from angle,round pipe.
boltplain bolt and high strength bolt
Roof&wallsandwich panel and color plate
doorsliding or rolling door
WindowAluminium alloy window
surfacetwo ways of anti-rust painting or hot dip galvanized

componentssheet0.5mm or 0.6mm galvanized sheet
Accessoriessemi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc.

Usages

1.worshop,warehouse,plants.

2. steel web frame structure

3. steel H-colum and sheet H-beam

4. Portal frame products

5. high rise building project

6. other steel structure buildings.

PackingMain sheet frame without packing load in 40'OT
Drawingaccording to drawings or according to customer's requirements.
Design

If you need design for you, please supply us the following phareters and other detailed size:

1) length,wideth,height,eave height,roof pitch etc.

2) wind load,snow load,raining condition,aseismatic requirments,etc.

3) demand for doors and windows.

4) other information if necessory


Main parts of the steel structures and technical parameters:

Main Steel Frame System
Main structureH section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlinXZ160*60*20*2.5, galvanized
Wall purlinXZ160*60*20*2.5, galvanized
Intensive boltGrade 10.9
Turn buckle boltM20+2, steel Q235, processing
Anchor boltM24, steel Q235, processing
Ordinary boltGalvanized bolt M20
Ordinary boltGalvanized bolt M12
Brace nutGalvanized bolt M12
Bracing System
Cross braceΦ20 round steel bar Q235, process and painted (alkyd painting)
Angle braceL50*5 angle steel Q235, process and painted (alkyd painting)
Column bracingΦ25 round steel bar Q235, process and painted (alkyd painting)
Tie barΦ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter braceΦ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover0.5mm color plate, angle Alu.
Fittings & accessoriesNails, glue etc.
Unpowered ventilatorDiameter Φ600, stainless steel
Sky lighting band1.2mm FRP, double layer
Sliding doorsandwich panel door
Roof drainage system
Gutter0.5mm color steel plate
Rainspout pipesΦ110 PVC pipe

Why did you choose us?

Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.

  1. Low cost---Professional design, less construction time; saving raw materials.
  2. Environmental protection---specialized cladding materials guarantee excellent acoustic and insulation performance; no pollution ;Raw material can be recycled
  3. Comfortable and aesthetic---higher using areas and bigger building bays afford us wider viewpoints; distinctive and elegant profiles.

IF YOU ARE INTERESTED IN OUR COMPANY OR PRODUCTS,PLEASE CONTACT US,WE WILL TRY OUR BEST SERVICE FOR YOU.

THANK YOU.
