| Categories | Steel Structure Workshop |
|---|---|
| Brand Name: | Ruly Steel |
| Model Number: | Ruly0027 |
| Certification: | SGS, ,ISO, BV |
| Place of Origin: | China |
| MOQ: | 500 Square Meter |
| Price: | USD29-USD99 Per Square Meter |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 Square Meter Per Month |
| Delivery Time: | 30 Days |
| Packaging Details: | As request |
| Application: | Prefabricated Workshop Buildings,Industrial Steel Frame Buildings |
| Usage: | Steel Structure Workshop, Metal Warehouse, Factory Buildings |
| Type: | Steel Structure Workshop |
| Raw steel material: | Q235B, Q355B |
| Surface treatment: | Painting or Hot-dip Galvanize |
| Service life: | 50 Years |
| Wall and Roof: | EPS sandwich panel |
| Columns and Beam: | H Section Column&Beam |
| Company Info. |
| Qingdao Ruly Steel Engineering Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Prefabricated Workshop Buildings / Industrial Steel Frame Buildings

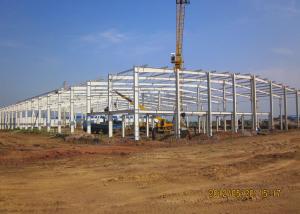

Prefabricated Workshop Buildings / Industrial Steel Frame Buildings in the pictures were designed, fabricatied and installed by us. This steel frame structure workshop is an automobile assembly workshop. All the main steel structure components also purlin were panited white color. It also has mezzanine at one side. We are professional and practical in designing, processing and installing.You may give us your own drawings to enable us construct as per your request or you might just give us your ideas. we could design the project as per your ideas. Welcometo contact us for anything you need.
New workshop with covered area of 9000m².
| Name | Prefabricated Workshop Buildings / Industrial Steel Frame Building |
| Structure Type | portal frame, single ridge |
| Length | 150m |
| Width | 60m |
| Eave Height | 10m |
| Roof Slope1 | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof | 75mm EPS sandwich panel |
| Wall | 75mm EPS sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
| Item name | Specification | Material Parameter | Technical Treatment |
| Column | H shape,Box,steel pipe,Hot rolled sheet | Q235B,Q345B | Paint or Hot dip galvanized |
| Beam | H shape,steel Truss,Hot rolled sheet | Q235B,Q345B | Paint or Hot dip galvanized |
| Bracing | Steel rod,Steel pipe,Angle steel | Q235B,Q345B | |
| Purling | C or Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q346B | Hot dip galvanized |
| Wall and roof panel | EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | alloy-Glass,Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized,304 |
| Downpipe | PVC pipe,Color steel pipe T=0.5mm | Φ110,160,200 | Paint |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot dip galvanized |
| Anchor bolt | Steel rod M24,M27 M30 | Q235B |
Within 2 hours after blasting the steel member must be painted to
gurantee the painting quality. Especially for the purlin, as the
client need white color for every steel components, it is hard to
paint common paint on galvanized purlin, so we used the special
primer paint for purlin in order to guarantee paint adhesion.
Just feel free to fill the form based on what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
|
