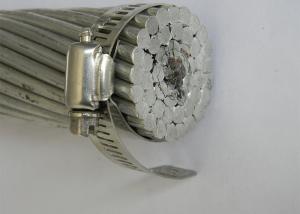

AAC AAAC ACSR Bare Conductor Wire ASTM Standard ACSR Conductor Cable 160 Mm2 IEC 61089

AAC AAAC ACSR Bare Conductor ASTM Standard ACSR Conductor Cable 160 Mm2 IEC 61089

The conductors are suitable for use in spans on wood poles, transmission towers and other structures where tensile strength and temperature ratings are not required. Application range from extra high voltage(EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

AAC(All aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handing during installation and use of simpler fittings. The conductor is corrosion resistant due to its homogeneous construction.

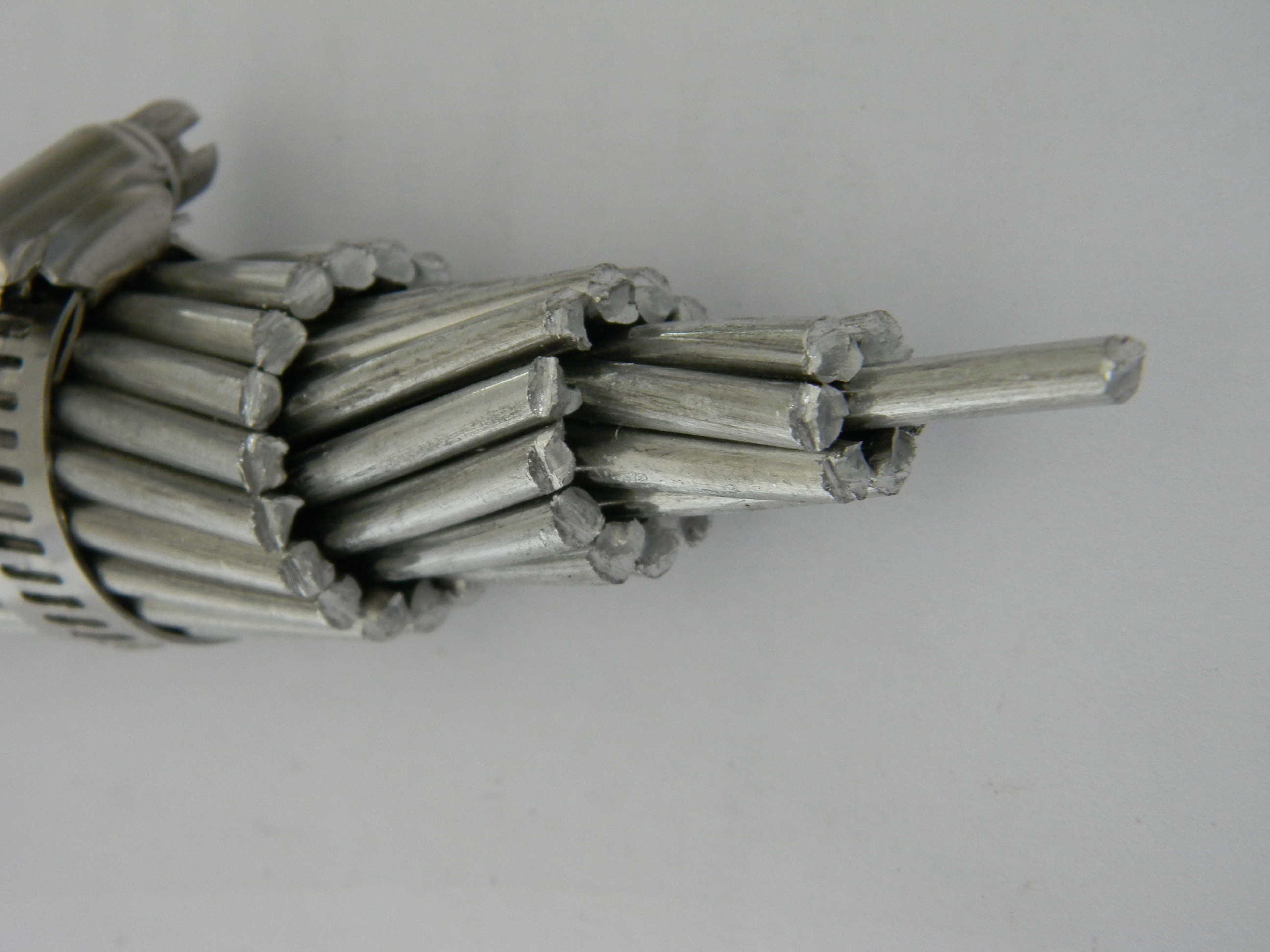

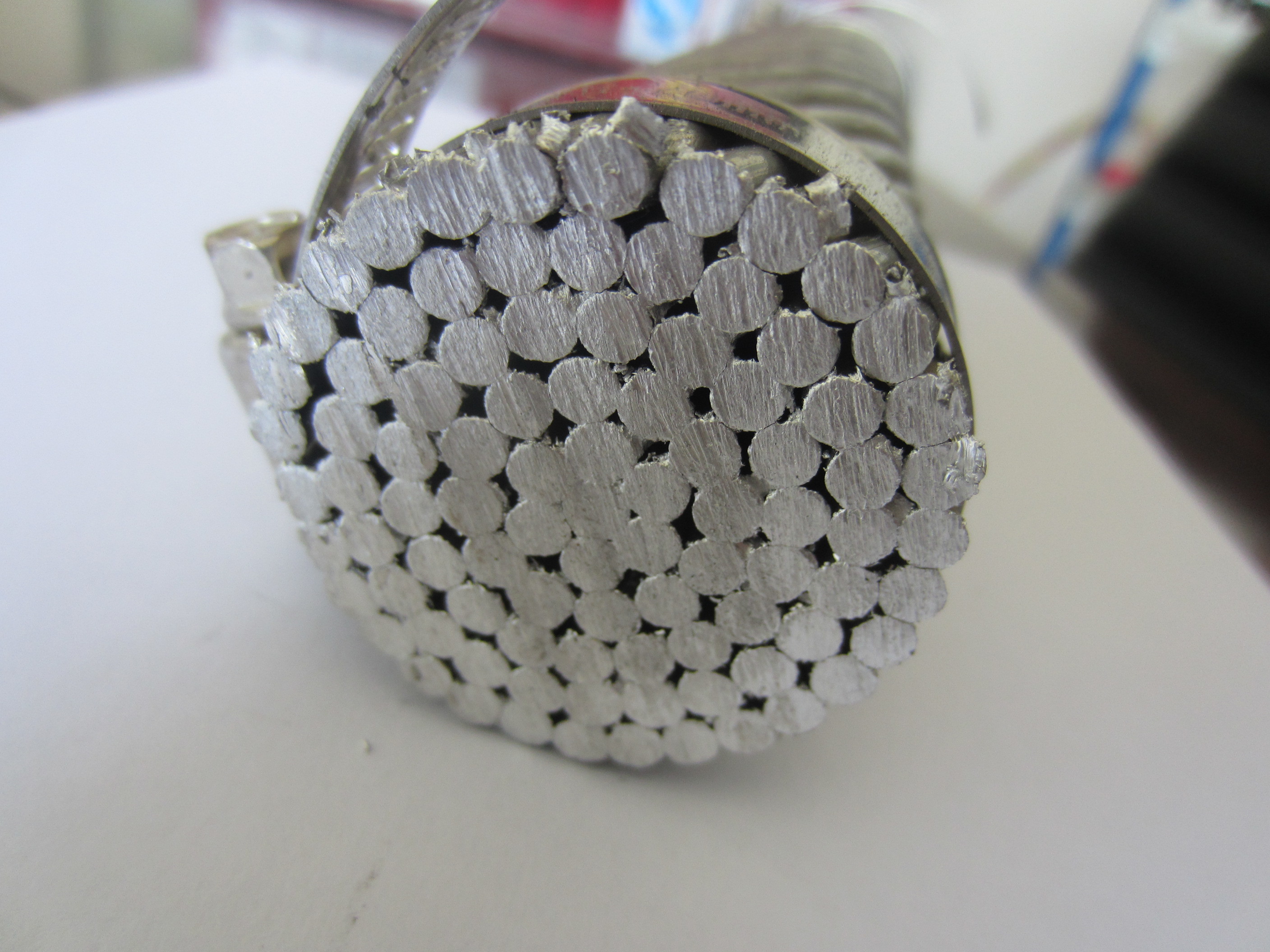

Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers.

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock, hi-tech enterprise established in 2001. We are specialized in wires & cables, including designment, production and sales. Located in Zhengzhou, China, our factory's position is extremely advantageous.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.

As a people-oriented company, we always adhere to "customers first, quality first" business philosophy and promote the comprehensive quality management system. We have obtained ISO9001, ISO14001, OHSAS18001 Certification, CCC certificate, CE certificate, and the IEC international certificate and our company have been audited and approved by SGS and BV. We would like to join hands with elites from all sectors of society in the road of common development.
