Single Output Fiber Optic Node Receiver OR19 With AGC WDM For FTTP CATV System

Categories EDFA Optical Amplifier
Brand Name: Wangtong
Model Number: OR19
Certification: ISO9001
Place of Origin: China
MOQ: 10pcs
Price: negotiable
Payment Terms: T/T, Western Union,Paypal, L/C,D/P
Supply Ability: 50000pcs per month
Delivery Time: 5-8 work days
Packaging Details: standard export carton
Product Name: Fiber Optic Receiver
RF Frequency: 40~1006MHz
Wavelength: 1310/1490/1550nm
WDM: optional
Material: Palstic
Voltage: DC5V
Connector Type: SC FC
Ports: 1 output
Application: CATV FTTP
Function: AGC(0~-9dBm)
Color: White
Isolation: optional
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Single Output Fiber Optic Node Receiver OR19 With AGC WDM For FTTP CATV System

Single output fiber optical receiver node OR19 with AGC WDM for FTTP CATV system


Description


OR19 1 Port Mini FTTH CATV Optical Receiver WDM is a home-based mini FTTH node, cater to the ultimate goal of development of optical access for FTTH network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications is slightly different.


Hot sale 1 Port Mini FTTH CATV Optical Receiver WDM is with AGC, plug-in photocell. OR19W is with WDM and AGC.

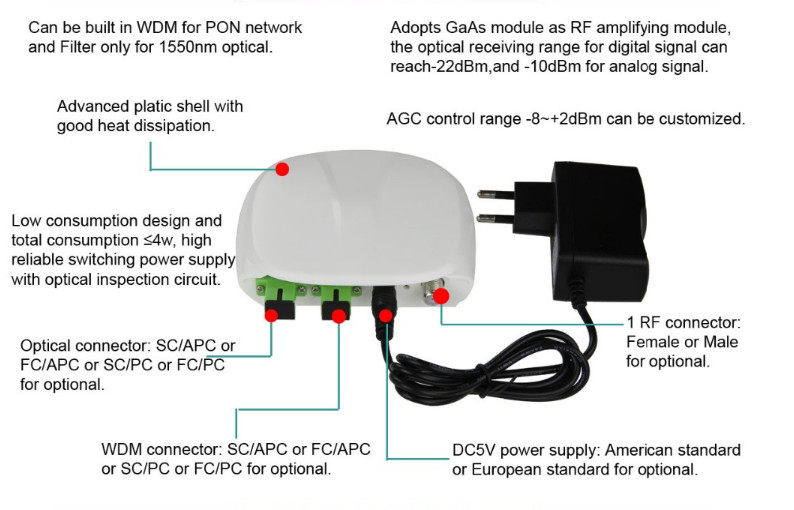

Feature


Application


  • Typical Solution:FTTH,FTTB,PON+EOC
  • Typical CATV, IPTV

Parameter

CATV Working wavelength1200~1600nm&1550nm
Input optical power0dBm~-10dBm(Analog signal)
0dBm~-18dBm(Digital signal)
Light reflection loss>45 dB
Optical connector formFC/APC or SC/APCor FC/PC or SC/PC
Frequency Range40~862MHz
In-band flatness±1dB@45~862MHz
RF output reflection≥16dB@ 47~550MHz;≥14dB@550~862MHz
Output level(78~80)dBuV(AGC:@-9~+0dBm,Pin=0dBm)
RF output impedance75Ω
AGC range(0~-9)dBm(default)/(-3~-12)dBm/(-6~-15)dBm

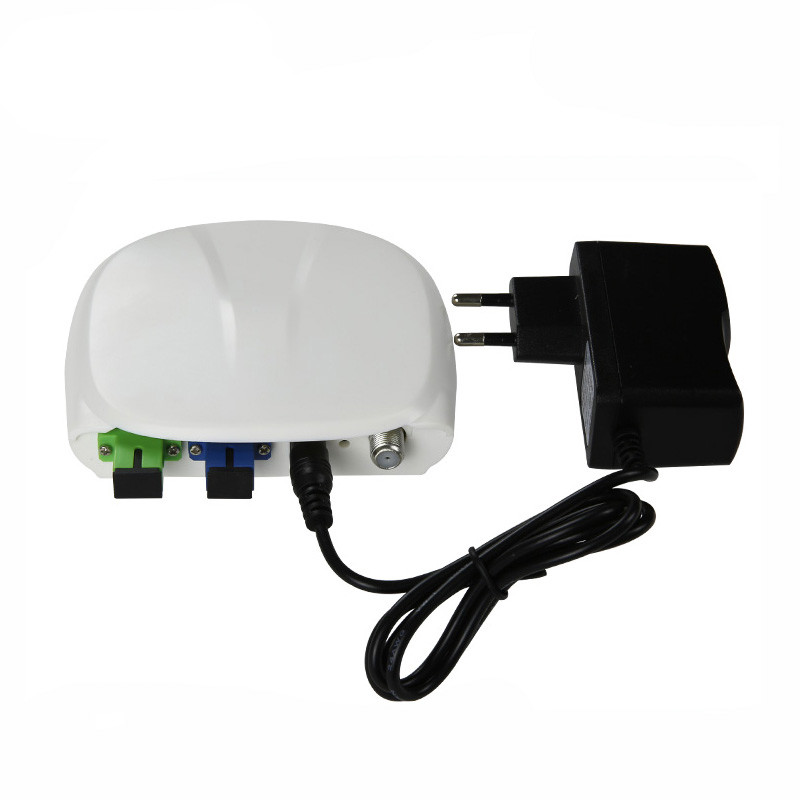

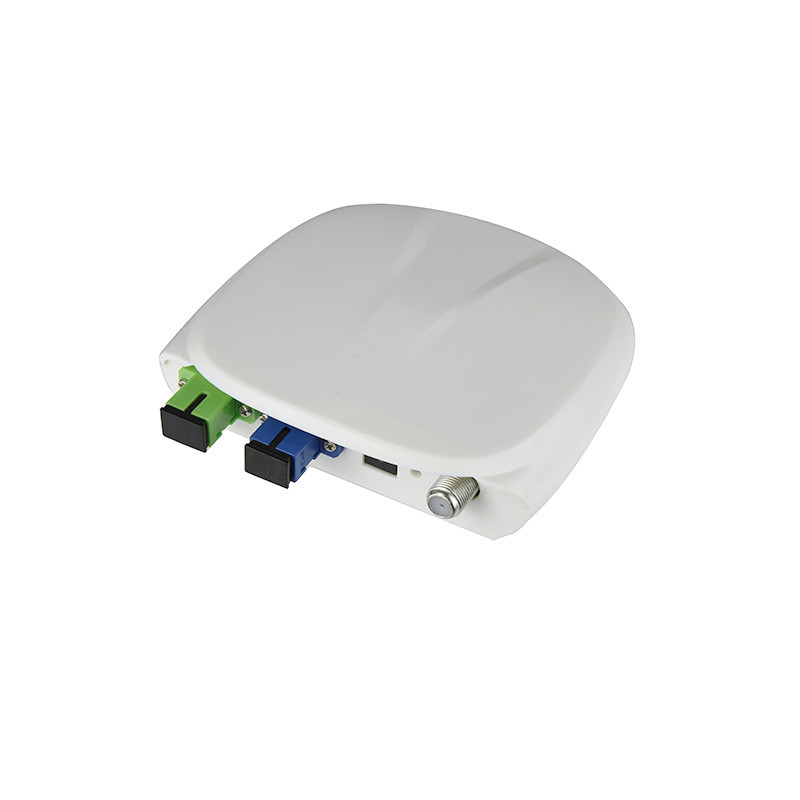

Product Pictures

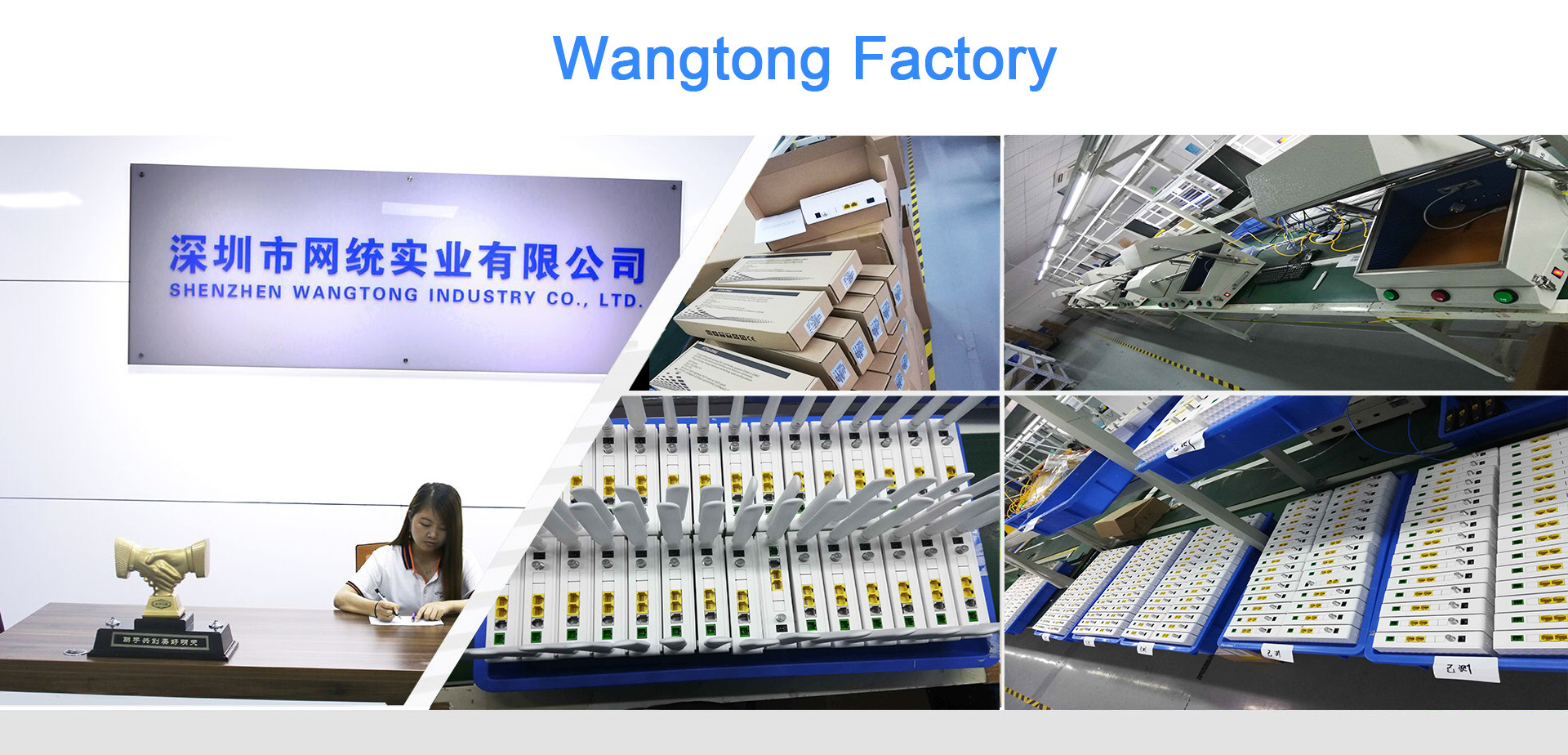

Wangtong Factory
