Categories | Fiber Optic Patch Cord |
---|---|
Brand Name: | Wangtong |
Model Number: | Fiber Optic Pigtail |
Certification: | ISO9001 |
Place of Origin: | China |
MOQ: | 1pc |
Price: | negotiable |
Payment Terms: | T/T, Western Union, L/C, D/P,Paypal |
Supply Ability: | 5000 pieces per day |
Delivery Time: | 7-10 work days |
Packaging Details: | PE bag |
Product Name: | Fiber Optic Pigtail |
Application: | FTTH FTTB FTTX Network |
Length: | 1m 2m 3m 5mor Customized |
Connector: | SC LC |
Insertion Lost: | <0.3dB |
Color: | Yellow Blue or customized |
Fiber Optic Patch Cord (pigtail) is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable (pigtail). The Fiber Optic Patch Cord (pigtail) series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Application

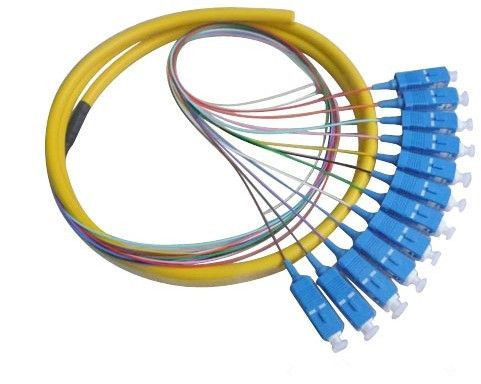

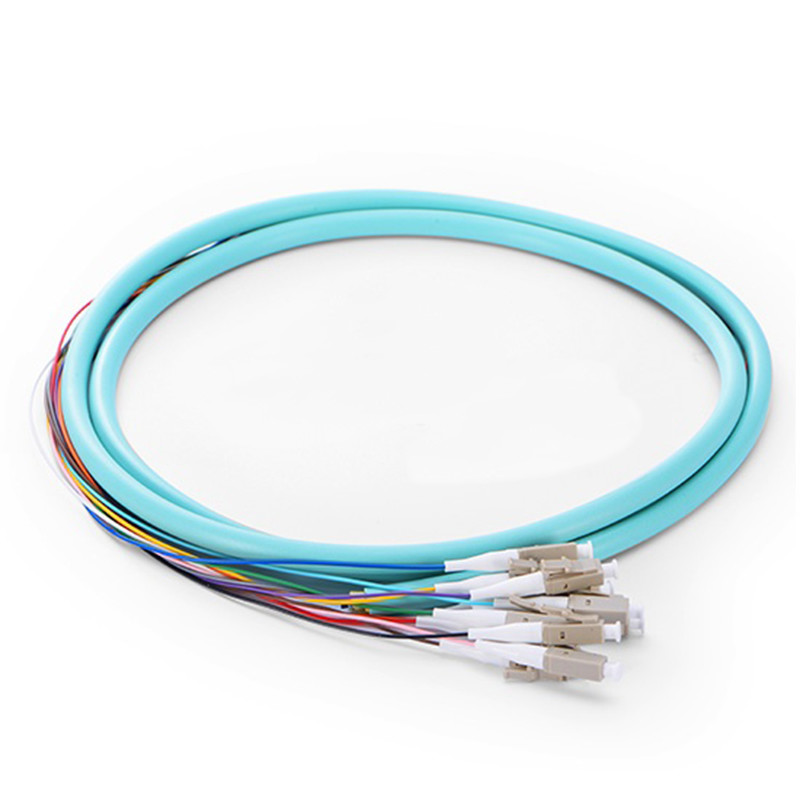

Product Pictures
Parameter
Item | fiber optic pigtail |
Insertion loss | Less than 0.3dB |
Return loss | MM more than 35dB |
Return loss | SM more than 55dB |
Return loss | APC more than 60dB |
Repeatability | Less than 0.2dB |
Changeability | Less than 0.1dB |
Operting termperature | -40~75 |
Storage temperature | -40~75 |
Tensile strength | 100N |
Min. bending radius | 35mm |
Length | Customized |
