SC APC 10db Fiber Optic Passive Components Adjustable Variable Fiber Optic Attenuator

Categories Fiber Optic Passive Components
Brand Name: Wangtong
Model Number: Variable Fiber Optic Attenuator
Certification: ISO9001:2008,ROHS
Place of Origin: Guangdong, China (Mainland)
MOQ: 50 pc
Price: negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pack/Packs per Day
Delivery Time: 3 -10 working day(s) after payment received
Packaging Details: Blister box
Product name: Variable Fiber Optic Attenuator
Application: FTTH FTTB FTTX Network
Connector: SC, LC, FC, ST
Type: Male-female plug-in type
Attenuation Range: 1~20dB or custom
Specification: 5 db 10 db 15 db db 20 db and more
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SC APC 10db Fiber Optic Passive Components Adjustable Variable Fiber Optic Attenuator

Adjustable Variable Fiber Optic Attenuator SC APC 2db 5 db 10db 15 db db 20



Description

Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC and Variable fiber optic attenuators.


Feature


  • Precise attenuation values
  • Industry standard attenuation levels
  • Low PDL and insertion loss
  • Precision polishing for reduced back reflection
  • Highly Reliable Physical Contact Connectors
  • Compartmentalized case provides safe component storage and simple organization
  • Small, durable case for easy portability
  • RoHS compliant



Application


  • Testing equipment
  • Fiber optical CATV
  • Fiber optical sensor
  • Fiber optical telecommunication system


Parameter

parameterSM(9/125)MM(50/125,62.5/125)
Attenuation values1dB to 20dB(1dB step),25dB,30dB1dB to 25dB(1dB step)
Wavelength1310nm & 1550nm850nm &1300nm
Attenuation Tolerance (dB)1-10dB<±1.0dB ( typical ) standard2dB,5dB,10dB<±1.0dB(typical ) standard
11-25dB<±10% ( typical ) standard15dB<±10% ( typical ) standard
1-10dB<±0.5dB ( typical ) premium2dB,5dB,10dB<±0.5dB(typical ) premium
11-25dB<±5% ( typical ) premium15dB<±5% ( typical ) premium
Return LossPC≥45 dB


/

UPC≥55 dB
APC≥65 dB
Attenuator modeFixed type, male to female type, In-line type, Variable type
Operating Temperature-40°C~+75°C
Storage Temperature-40°C~+85°C

TypeAttenuation valuesAttenuation ToleranceWavelengthsupplementary lossConnector types
female to male1-30dB1~10dB<±0.5dB1310nminsertion loss:FC/UPC
1550nm≤0.2dB (UPC)FC/APC
1310nm/1550nm≤0.3dB (APC)SC/UPC,SC/APC
Return Loss :
11~30dB<±1.0dB≥55dB (UPC)LC/UPC,LC/APC
≥65dB (APC)ST/UPC,MU/P

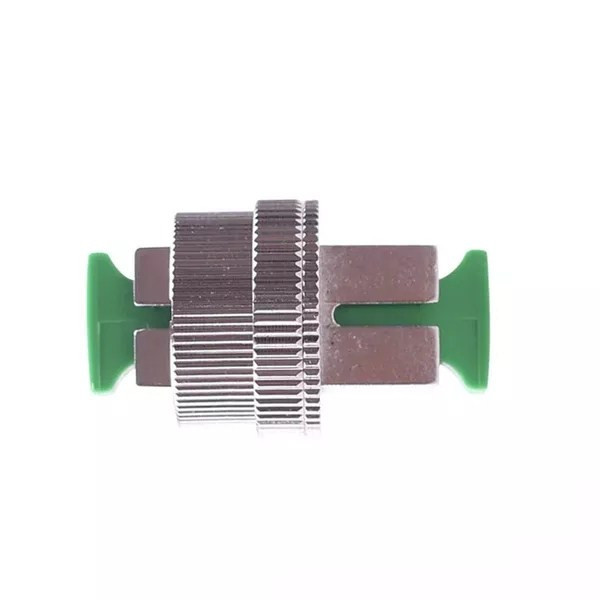

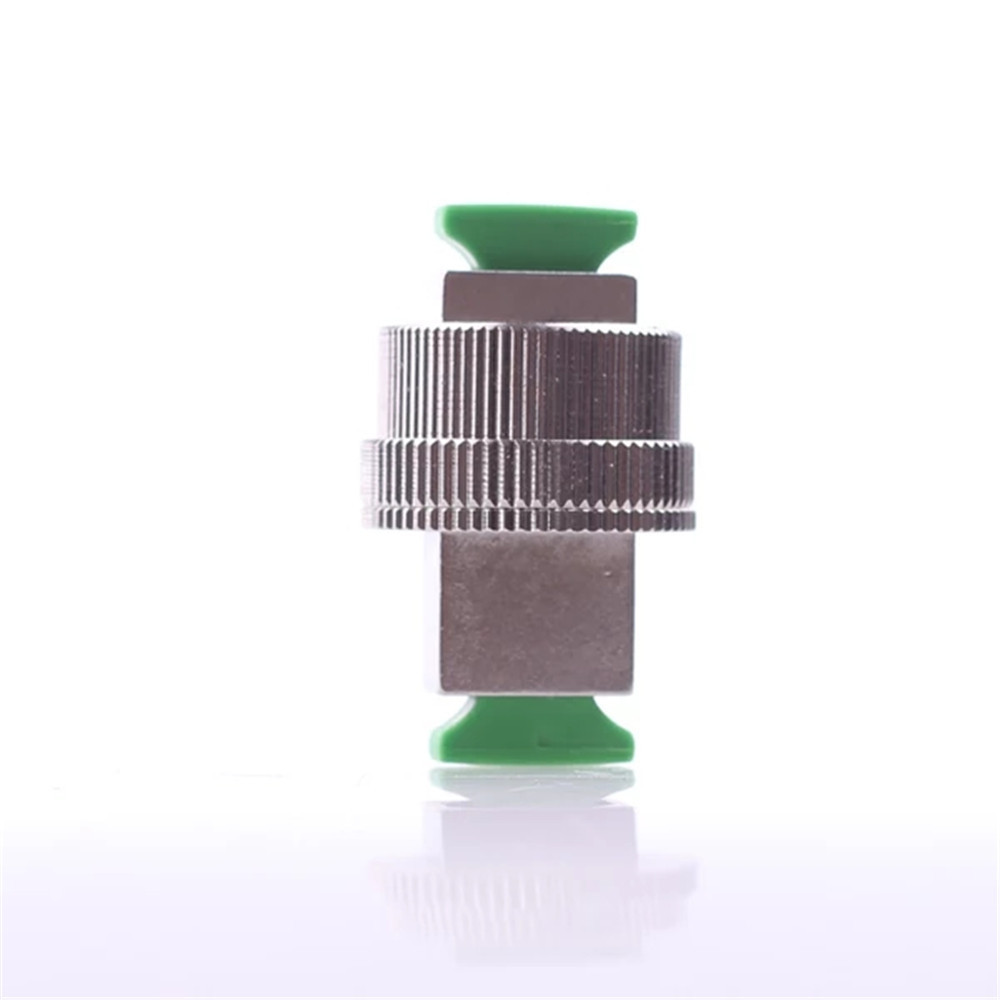

Product Pictures
