Durable Pre Terminated Multi Fiber Cables 4 / 6 / 8 Fibers Tight Buffered

Categories Pre Terminated Multi Fiber Cables
Brand Name: UNIFIBER-OEM
Certification: ROHS
Place of Origin: China
MOQ: 10PCS
Payment Terms: T/T, Western Union
Connector type: LC/SC/ST/FC
Cable Jacket: PVC/LSZH/OFNP
Fiber count: 4/6/8/12/24 fibers
Breakout diameter: 0.9/2.0/3.0mm
Trunk Diameter: 7.0-8.0mm/4.6-5.0mm
Fan-out length: 0.3/0.5m or Customized
Cable legnth: Customized
Price: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Durable Pre Terminated Multi Fiber Cables 4 / 6 / 8 Fibers Tight Buffered

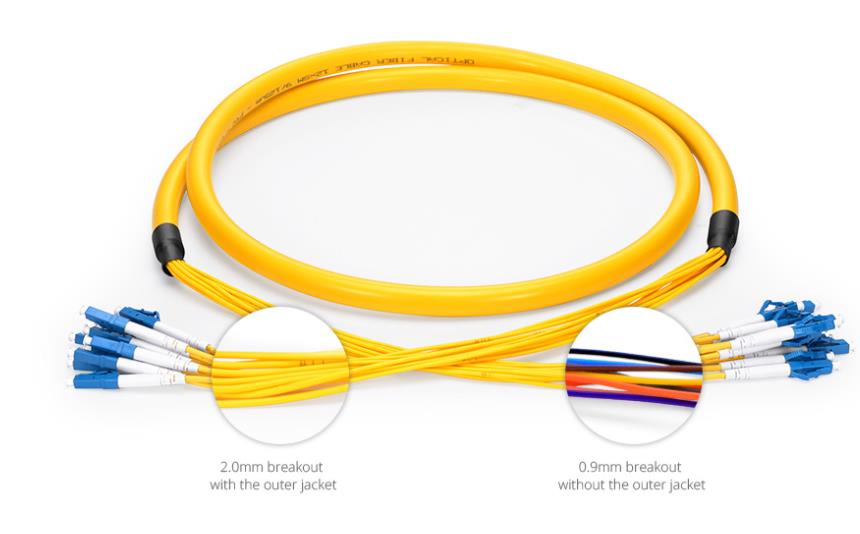

Indoor 4/6/8/12/24 fibers Tight-Buffered Multi-Fiber Breakout Cable

Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks.



Applications

1· Switching between trunk line and distribution line

2· Connection of trunk line

3. Local area networks

4. Wide area networks

5· High integrated equiement and devices

6· High density cable wiring system


Features

1· 4-48core available

2· 0.9, 2.0, 3.0 fanout available

3· Small volume, high fiber density

4. High back reflection loss value

5. Stable capability and high reliability

6. Excellent mechanical capability


Parameters

Item

SingleMode

MultiMode

Insertion loss

≤0.2dB

≤0.3dB

Return loss

PC≥50dB, APC≥55dB, UPC≥60dB


Insert-pull test

1000 times

Repeatability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40℃~ +85℃

Ceramic ferrule spec

125.5um concentricity deviations:≤1μm

127um concentricity deviations:≤3μm

Suitable fiber

9/125μm

50/125μm, 62.5/125μm
