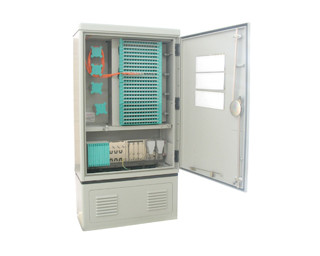

288 Cores Fiber Optic Cabinet , Waterproof Network Termination Box

Outdoor Fiber Optic Splice Cabinet, maximum capacity 288 cores

The outdoor of the cabinet can be equipped either only at front or both at front and back. The lock devices into round(PVC), corrugated(Zinc Alloy), bar lock. without window. user for cable distribution cabinet, maximum capacity could be 576cores. Modular design: Built-in hierarchical splice tray (connecting module) is used for fusing and wiring together. Full module type design has the advantages of flexible configuration with drawer structure. Angle inclination for the installation of the adapters makes sure the best bend radius and the lowest transmission loss. All operations are fully done at front. There is adequate space for fiber distribution and storage, as well as enough fiber winding trays.

Features

The cabinet is shaped from high strength glass-fiber polyester(SMC) with excellent performance of mechanical durability, anti-erosion, aging resistance. And it could resistance severe climatic changes and serious working environment with long life over than 20 year.

The cabinet has good function of thermal insulation and hydrometeor resistance.

Safety and reliability, lock at three points with good function of theft-proof.

Scientific and reasonable structure sufficiently ensures the sealing for the cabinet, and prevents any foreign materials.

Performance

Operating temperature: -25℃ ~ +65℃

Relative humidity: ≤95%(+40℃)

Air pressure: 70Kpa ~ 106Kpa

Protection grade: Ip65

Unifiber, a Hi-Tech company specialized in developing and manufacturing optical fiber products. Based on strong hardware development, we are offering the most cost-effective cabling solutions on optical networking, data center, FTTx and OEM solution.

Our featured products includes FTTA Waterproof Connectors, indoor/outdoor armored cable assembly, Pre-terminated Multifiber Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails and MTP/MPO series. We can also provide adapter, attenuator, fused coupler, PLC Splitter, WDM and various of patch panel, terminal box, ODF and tool series products..

Providing the highest quality products and services is always the most important principle to Unifiber, All our products are subjected to strict test according to BELLCORE standard and fully RoHS compliant. Through the efforts of our team, Unifiber has obtained a widespread acknowledgement, Our products continue to enjoy growing acceptance both in China and abroad.
