Brand Name: | Runtai |
Model Number: | Rivet Nuts |
Certification: | ISO9001/TS16949 |
Place of Origin: | Jiangsu, China (Mainland) |
MOQ: | 50000 |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5 Ton/days |
Delivery Time: | 14-21 days |
Packaging Details: | PP bag+Carton box+ Wooden Pallet |
Size: | M1-M30 for choose |
Material: | steel Stainless Steel Red Copper Aluminum Alloy For Choose |
Grade: | 4.8 8.8 10.9 12.9 for choose |
Surface treatment: | Zinc plated, nickel plated, black phosphates for choose |
Products Name: | Zinc Plated Steel Heavy Duty Twist-Resistant Rivet Nuts |
Port: | Shanghai |

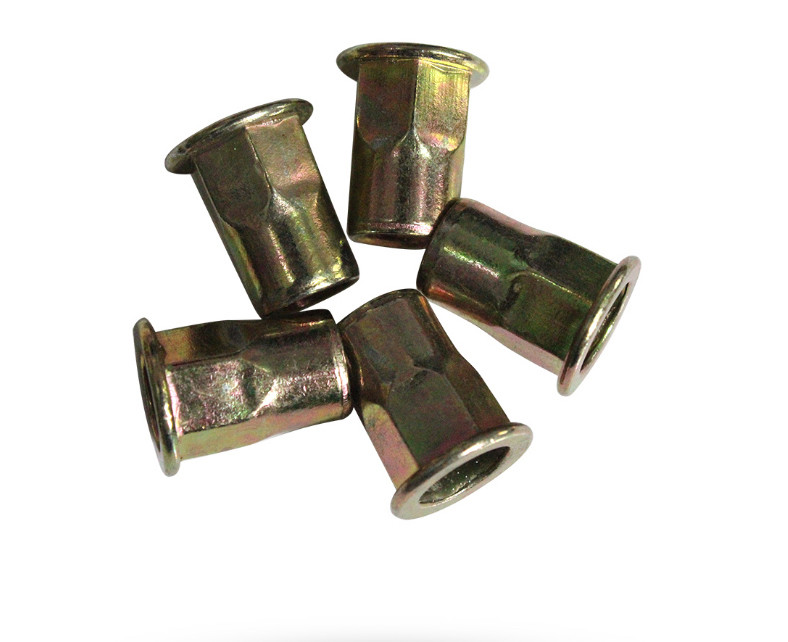

Zinc Plated Steel Heavy Duty Twist-Resistant Rivet Nuts Flat Round Head Half Hex Rivet Nuts
Products Descriptions
A hex-shaped body provides the highest twist resistance of any rivet nut. They're zinc plated for mild corrosion resistance.Install in a drilled hole with a lever-style or power-driven rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.
Products Specifications
Material | Zinc-Plated Steel |
Thread | |
Size | M8 |
Pitch | 1.25 mm |
Type | Metric |
Spacing | Coarse |
Thread Fit | Class 6H |
Direction | Right Hand |
Drill Bit Size | 11 mm |
Drill Bit Decimal Size Equivalent | 0.3937" |
For Material Thickness | 0.800 to 4.000 mm |
Body | |
Type | Hex |
Diameter | 11.00 mm |
Length | 19.6 mm |
Installed Length | 13.600 mm |
Flange | |
Diameter | 16 |
Thickness | 1.5 mm |
Nut Type | Rivet |
End Type | Open |
For Use In | Metal |
RoHS | Compliant |
