| Categories | MPO MTP Patch Cord |
|---|---|
| Brand Name: | UNIFIBER-OEM |
| Certification: | ROHS |
| Place of Origin: | CHINA |
| MOQ: | 10pcs |
| Payment Terms: | T/T, Western Union |
| Price: | Negotiable |
| Model Number: | MPO MTP To LC/SC |
| Supply Ability: | 1000pcs/day |
| Delivery Time: | 5-8days |
| Packaging Details: | Blister case or Carton box |
| Fiber Count: | 8/12/24 |
| Fiber Type: | SM/MM/OM3/OM4 |
| Cable Length: | 0.5m Or Customized |
| Cable Jacket: | PVC,LSZH |
| Fan-out diameter: | 0.9mm |
| Application: | Data Center High density cabling |
| Company Info. |
| Shenzhen Unifiber Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

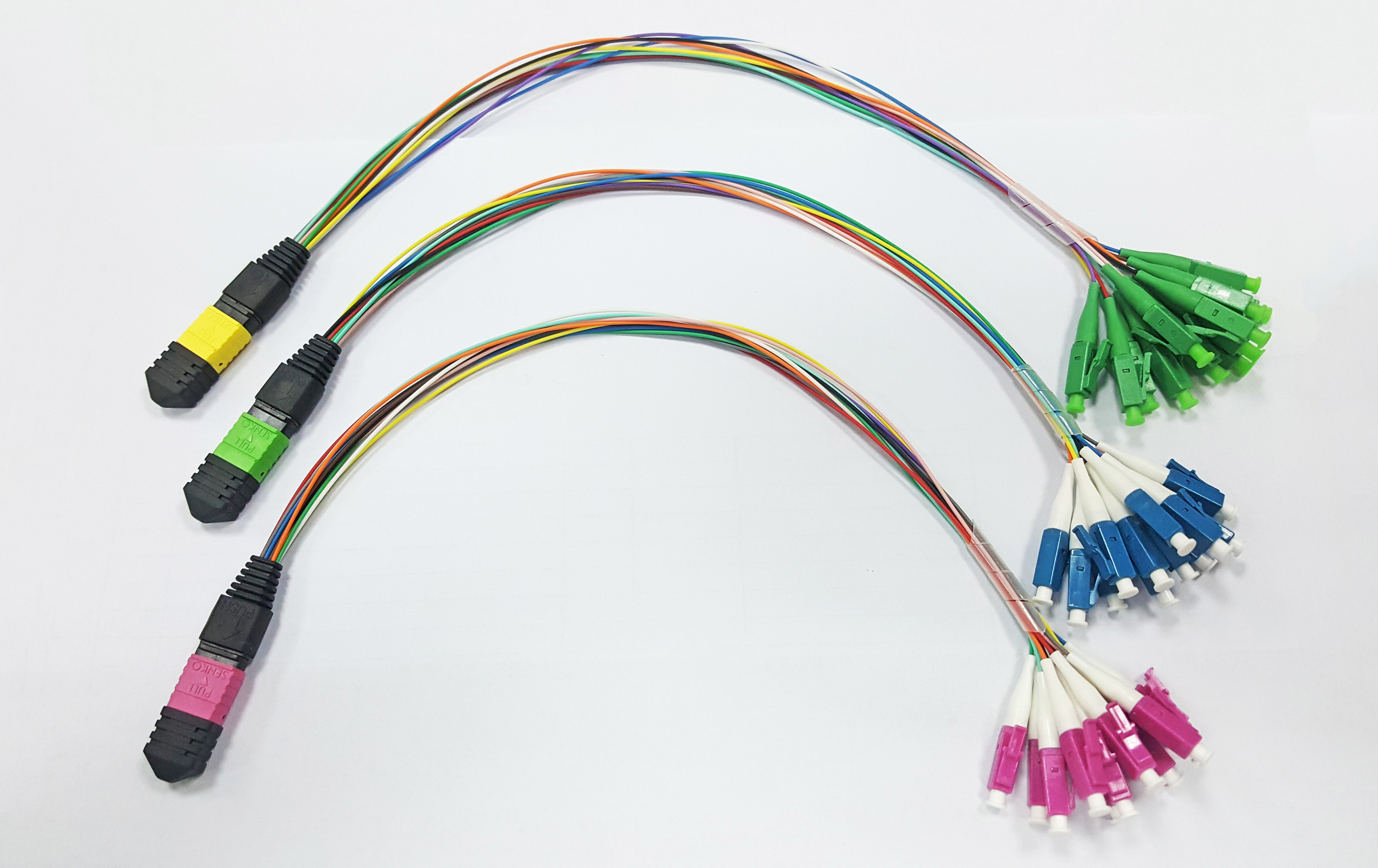

12 core MTP mpo fanout cable, MPO MTP To LC breakout cable 0.9mm, for mpo mtp cassette termination
MPO (MTP) Fanout Patch Cord is a cable attached with MPO (MTP) connector on one end and generic connectors on the other end like SC, LC, etc. The cable can be mini-core (Round) or ribbon (Flat) type. 12 fiber MPO (MTP) fanout patch cord is widely used in fiber optic network. Upon request, we can also supply 24, 48, 72, 144 fibers. Available with male or female and Available with OS2, OM1, OM2, OM3, OM4 fiber.
FEATURES
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
APPLICATION
High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel
Parameters
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
| Mechanical Properties | |||
| Item | Criteria | Conformance | |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | ||
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) | ||
| Environment Conditions | ||
| Item | Criteria | Conformance |
| Operation Temperature | -40~60 | IEC 61753-1 |
| Storage Temperature | -45~85 | |
|
