| Brand Name: | GT SONIC |
| Model Number: | VGT-2227QT |
| Certification: | CE / FCC / ROHS |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 units per day |
| Delivery Time: | 3-25 days |
| Packaging Details: | standard packing : PE Foam + carton packing |
| Volume: | 27L |
| Ultrasonic frequency: | 40kHz |
| Ultrasonic power: | 500W |
| Heating power: | 500W |
| Timer: | 1-99MIN |
| Heating temperature: | 0-80℃ |

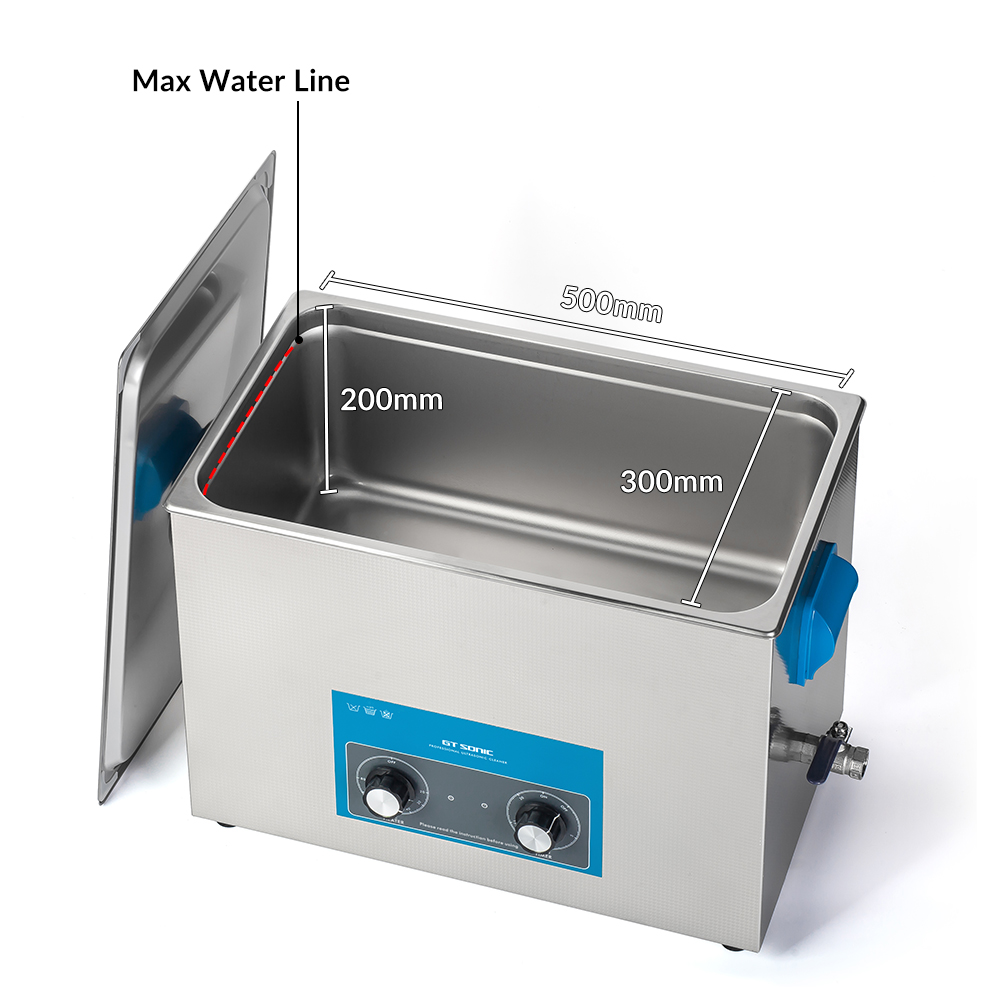

| Tank size: | 500*300*200(L*W*H)mm |
| Unit size: | 550*330*360(L*W*H)mm |
| Company Info. |
| Guangdong GT Ultrasonic Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Ultrasonic Parts Washer Large Ultrasonic Cleaner 27L Injector Ultrasonic Cleaning Equipment Machanical Control Timer

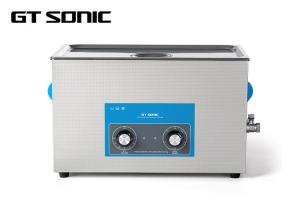

General Description - QT Series Mechanical Ultrasonic Cleaner
GT SONIC QT-series units with mechanical control timer and heater features. 40kHz frequency make it suitable for general cleaning applications. The QT series with very competitive price, and available for OEM customers. QT series comprises 10 machine sizes from 0.7 liters to 27 liters.
Features:
1> Available for fast delivery of OEM customers.
2> Mechanical control the clenaing timer and heater.
3> Whole machine made of stainless steel.

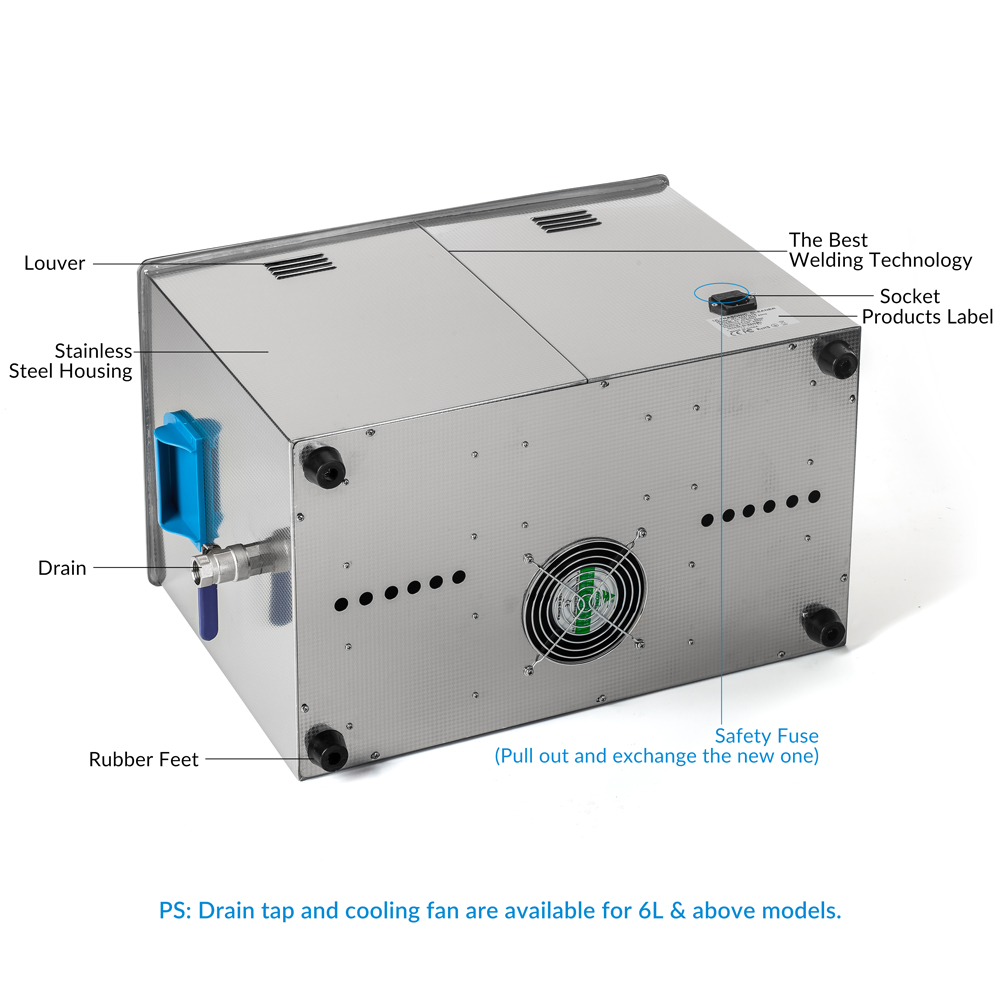

4> Drainage and cool fan are availabe for 1.3L-27L models.
5> Ceramic heaters provides improved heating effect.
Specification:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| L×W×H(mm) | L×W×H(mm) | (L) | Normal(W) | (kHz) | (W) | (MIN) | (℃) | |
| VGT-1613T | 150*140*65 | 190*170*185 | 1.3 | 50 | 40 | / | 0-15 | / |
| GT-1620T | 150*135*100 | 176*162*226 | 2 | 50 | / | 0-15 | / | |
| VGT-1730QT | 240*135*100 | 265*161*226 | 3 | 100 | 100 | 0-20 | 20-80 | |
| VGT-1860QT | 299*150*151 | 325*175*305 | 6 | 150 | 300 | 0-20 | 20-80 | |
| VGT-1990QT | 299*240*151 | 330*265*305 | 9 | 200 | 300 | 0-20 | 20-80 | |
| VGT-2013QT | 328*300*151 | 345*325*310 | 13 | 300 | 400 | 0-20 | 20-80 | |
| VGT-2120QT | 505*300*151 | 530*325*327 | 20 | 400 | 500 | 0-20 | 20-80 | |
| VGT-2227QT | 505*300*201 | 530*325*377 | 27 | 500 | 500 | 0-20 | 20-80 |
Application:
| Industry | Items to clean |
| Moulds | Plastic tool models |
| Electronics | Relay—remove metal filings and impurities, Potentiometer-- impurities and oil stain on moving contact, Vacuum tube parts-- Dirt and impurity on the polar plate of electron gun, Semiconductor element--Dir on the surface of silicon wafer and crystal wafer, Capacitor--Dirt on pins of capacitor, Printed circuit board--Ink and oxide left during processing printed circuit board, Magnetic head--Dirt on the surface of the magnetic head. |
| Mechanical | Bearing, gear--Metal filings and impurities left during the
processing of internal and external sheath of bearing, Spring--cleaning before spring turning black, Vernier caliper, measuring tool--Metal filings and oil stain left during the processing of parts, Oil choke, oil pump--Metal filings and dirt left during the process of inner hole of oil choke and oil pump, Screw rod, air valve, pneumatic elements--Iron filings, cutting oil and abrasive left while processing. |
| Automotive, motorcycle, aircraft | To remove oil, grease, preservative, plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite and tar from Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycleair-valve,etc. |
| Armurerie | weapons cleaning, such as guns, rifle, bullets , handcuffs , etc. --For cleaning and lubrication. |
| Printing industry | Rotative machine, metal plate, Printer ink head, printer cartridges -- To clean ink, oil and dye on the surface of printing machine & parts. |
| Repair industry | Musical instrument repair shop, vehicle maintenance shops,
motorcycle repair shop, mobile phones & interphone repair shop, gun
repair shop, etc. --To clean dirt, impurity and oils from surface of tools and spare parts. |
