Name: Manufacturer Price Natural Glass Fiber Frp Water Pressure Tank
Brand: JIEMING
Price: 1 USD

Product Details
Company Profile

Manufacturer Price Natural Glass Fiber Frp Water Pressure Tank

PRODUCT CATEGORIES

Hot Sale FRP Tank for Water Treatment System/ FRP Vessel/ FRP Pressure Tank

1· PE liner with FRP filament winding,high quality but competitive cost.

2. Specification: from 0613 to 7294

3· Available in natural and blue or custom color.
4· NSF and CE certified.

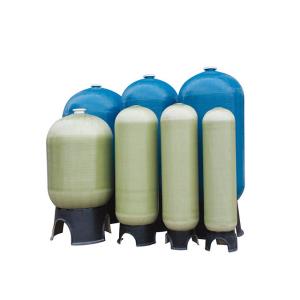

FRP TANK

8"- 63"dia. For multi-media filter and softerner

1).PE(Polyethylene)seamless one-piece tank liner:

2).2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;

3).4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;

4).6"Aluminum alloy flange opening for 36",42",48",60",63"dia. tanks;

5).Continuous strands of fiber-glass with high strength Epoxy resin;
6).Completely rust and corrosion free;
7).FRP reinforced tripod base.

Application:

All feed water and waste water treatment application, included in commercial and industrial field.

ree;

Packaging & Delivery

Selling Units:

Single item

Single package size:

107X107X227 cm

Single gross weight:

150.0 kg

Package Type:

1,Winding withe the crashworthy foam.
2,Packed with double deck carton.
3,Using pallet for flange tanks.

Lead Time :

Quantity(Piece)	1 - 50	>50
Est. Time(days)	5	To be negotiated

Application of FRP tank:

NO.	specification		volume	top opening	bottom opening	LA	LB	LC	×	D
NO.	Inch	mm	L	top opening	bottom opening	mm	mm	mm	mm	mm
1	7×13	φ180×335	6.3	2.5”NPSM		334	320	304	198	181
2	7×17	φ180×430	8.6	2.5”NPSM		428	414	398	292	181
3	7×35	φ180×905	20.1	2.5”NPSM		904	890	874	768	181
4	8×17	φ205×445	11.3	2.5”NPSM		446	432	416	292	206
5	8×35	φ205×905	24.0	2.5”NPSM		905	891	875	751	206
6	8×44	φ205×1130	32.5	2.5”NPSM		1131	1117	1101	977	206
7	9×35	φ230×905	32.0	2.5”NPSM		905	891	875	734	232
8	9×42	φ230×1085	39.0	2.5”NPSM		1085	1071	1055	914	232
9	9×48	φ230×1230	44.7	2.5”NPSM		1232	1218	1202	1061	232
10	10×17	φ255×445	17.8	2.5”NPSM		447	433	417	259	257
11	10×35	φ255×905	38.6	2.5”NPSM		903	889	873	715	257
12	10×44	φ255×1130	49.5	2.5”NPSM		1130	1116	1100	942	257
13	10×54	φ255×1390	61.9	2.5”NPSM		1390	1376	1360	1202	257
14	12×52	φ300×1340	84.8	2.5”NPSM		1342	1332	1312	1115	305
15	12×65	φ300×1650	106.3	2.5”NPSM		1650	1640	1620	1425	305
16	13×54	φ330×1400	103.6	2.5”NPSM		1400	1390	1370	1155	334
17	14×65	φ355×1670	145.6	2.5”NPSM		1671	1661	1641	1410	360
18	14×65	φ355×1670	145.6	4”-8UN		1670	1661	1641	1410	360
19	16×65	φ400×1670	187.7	2.5”NPSM		1672	1662	1642	1380	410
20	16×65	φ400×1670	187.7	4”-8UN		1671	1662	1642	1380	410
21	16×65	φ400×1670	187.7	4”-8UN	4”-8UN	1671	1662	1642	1380	410
22	18×65	φ450×1670	237.0	4”-8UN		1670	1640	1612	1310	465
23	18×65	φ450×1670	237.0	4”-8UN		1670	1640	1612	1310	465
24	21×69	φ530×1750	316	4”-8UN		1750	1563	1685	1195	540
25	21×69	φ530×1750	316	4”-8UN	4”-8UN	1750	1563	1545	1195	540
26	24×72	φ600×1850	441	4”-8UN		1850	1750	1715	1330	612
27	24×72	φ600×1850	421	4”-8UN	4”-8UN	1850	1680	1645	1260	612
28	24×87	φ600×2200	520	4”-8UN	4”-8UN	2200	2030	1995	1610	612
29	30×72	φ750×1850	676	4”-8UN		1850	1750	1715	1240	765
30	30×72	φ750×1850	640	4”-8UN	4”-8UN	1850	1670	1635	1160	765
31	30×87	φ750×2200	790	4”-8UN	4”-8UN	2200	2010	1975	1500	765
32	36×72	φ900×1850	857	4”-8UN	4”-8UN	1850	1600	1554	1000	918
33	36×94	φ900×2400	1093	6”flange	6”flange	2400	2150	2044	1370	918
34	40×72	φ1000×1850	1046	4”-8UN	4”-8UN	1850	1605	1559	945	1020
35	40×94	φ1000×2400	1478	6”flange	6”flange	2400	2155	2109	1495	1020
36	48×72	φ1200×1850	1202	6”flange	6”flange	1850	1558	1451	595	1224
35	48×94	φ1200×2400	1824	6”flange	6”flange	2400	2108	2001	1145	1224
36	60×83	φ1500×2100	2158	6”flange	6”flange	2100	1780	1670	630	1530
37	60×94	φ1500×2400	2688	6”flange	6”flange	2400	2080	1970	930	1530
38	63×83	φ1600×2100	2580	6”flange	6”flange	2100	1780	1670	630	1620
39	63×94	φ1600×2400	3150	6”flange	6”flange	2400	1788	1970	1620	1620
40	72×94	φ1800×2400	3561	6”flange	6”flange	2400	2088	1908	1620	1836

Product Description -RO Membrane Seawater Filmtec Reverse Osmosis Membrane

About PE liner: Rotation moulding or blowing one-piece seamless without leakage.

About Opening: we have 2.5'' and 4'' reinforced plastic thread opening or 6'' alloy flange.

Fiberglass winding,we can do customized color for the tank:

Reinforced PP base:

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Company Information

Guangzhou Jieming Water Treatment Equipment Co.,Ltd. is a one-stop purchasing, exporting, delivering service provider in Water industry field, located in ,Xintang town, Zengcheng, Guangzhou,China.

Facilitated with the largest manufacturer of FRP Tank---Dongguan Huayu Jieming FRP Vessle Co.,Ltd.(the founder’s co-owned factory), and plentiful manufacturers of water treatment products in China, we provide the most cost- effective products and considerately customized service for our customers like Engineering Company /Water treatment product distributor and Users in water treatment industry all over the world.

Our Services

Certifications

Product Index:RO Membrane Seawater Filmtec Reverse Osmosis Membrane

reverse osmosis water purification system

Contact Us:

Product Tags:


*From:	Your email address is incorrect!
*To:	Guangzhou Jieming Water Treatment Equipment Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	FRP Pressure Vessel
Brand Name:	JIEMING
Model Number:	4894
Certification:	CE ;NSF ; ISO9001
Place of Origin:	Gongguang, China (Mainland)
MOQ:	10Piece/Pieces
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T,MoneyGram payments for offline orders, Western Union, MoneyGram
Supply Ability:	500 Set/Sets per Month
Delivery Time:	3 to 5 working days
Packaging Details:	1,Winding withe the crashworthy foam.2,Packed with double deck carton.3,Using pallet for flange tanks.
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturi
Dimension(LWH):	1200*2400
Weight:	200
After-sales Service Provided:	Online support
Warranty:	3 years
Product name:	4894,6T6B
Material:	PE, Fiber glass
PressureCertificates:	CE ;NSF ; ISO9001
Color:	Blue / Nature / Grey or Custom
Working pressure:	150 psi
Working Temperature:	1-49℃(34-121)
Maximum Vacuum:	127mmHg(5"Hg)
