| Categories | Tip Power Transistors |
|---|---|
| Place of Origin: | ShenZhen China |
| Brand Name: | Hua Xuan Yang |
| Certification: | RoHS、SGS |
| MOQ: | 1000-2000 PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | L/C T/T Western Union |
| Supply Ability: | 18,000,000PCS / Per Day |
| Model Number: | B772 |
| Power Dissipation: | 1.5W |
| FEATURES: | Low Collector-emitter Saturation Voltage |
| Collector Dissipation: | 1.25W |
| Usage: | Electronic Components |
| Collector-Base Voltage: | 40V |
| Case: | Tape/Tray/Reel |
SOT-89-3L Plastic-Encapsulate Transistors B772 TRANSISTOR (NPN)
Low Speed switching
| Symbol | Parameter | Value | Unit |
| VCBO | Collector-Base Voltage | -40 | V |
| VCEO | Collector-Emitter Voltage | -30 | V |
| VEBO | Emitter-Base Voltage | -6 | V |
| IC | Collector Current -Continuous | -3 | A |
| PC | Collector Dissipation | 1.25 | W |
| RӨJA | Thermal Resistance from Junction to Ambient | 100 | ℃/W |
| TJ | Junction Temperature | 150 | ℃ |
| Tstg | Storage Temperature | -55~+150 | ℃ |
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
| Parameter | Symbol | Test conditions | Min | Typ | Max | Unit |
| Collector-base breakdown voltage | V(BR)CBO | Ic=-100μA, IE=0 | -40 | V | ||
| Collector-emitter breakdown voltage | V(BR)CEO | IC=-10mA, IB=0 | -30 | V | ||
| Emitter-base breakdown voltage | V(BR)EBO | IE=-100 μA,IC=0 | -6 | V | ||
| Collector cut-off current | ICBO | VCB=-40 V, IE=0 | -1 | μA | ||
| Collector cut-off current | ICEO | VCE=-30 V IB=0 | -10 | μA | ||
| Emitter cut-off current | IEBO | VEB=-6V,IC=0 | -1 | μA | ||
DC current gain | hFE(1) | VCE=-2V,IC=-1A | 60 | 400 | ||
| hFE(2) | VCE=-2V,IC=-100mA | 32 | ||||
| Collector-emitter saturation voltage | VCE(sat) | IC=-2A,IB=-0.2A | -0.5 | V | ||
| Base-emitter saturation voltage | VBE(sat) | IC=-2A,IB=-0.2A | -1.5 | V | ||
Transition frequency | fT | VCE=-5V,IC=-0.1A f=10MHz | 50 | MHz |
CLASSIFICATION OF hFE(1)
| Rank | R | O | Y | GR |
| Range | 60-120 | 100-200 | 160-320 | 200-400 |

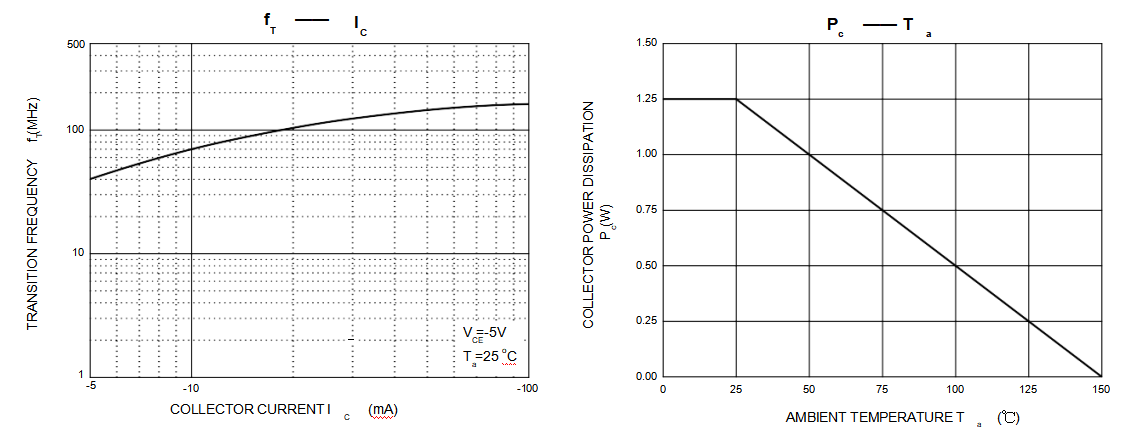

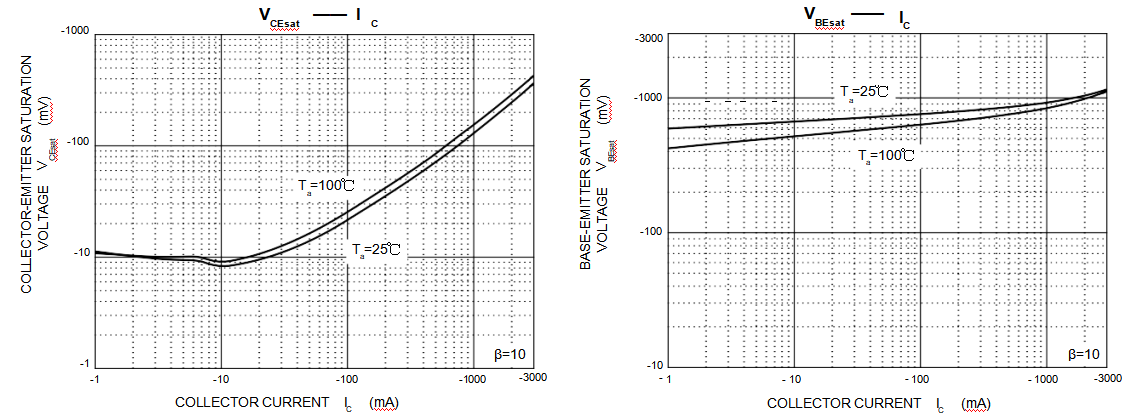

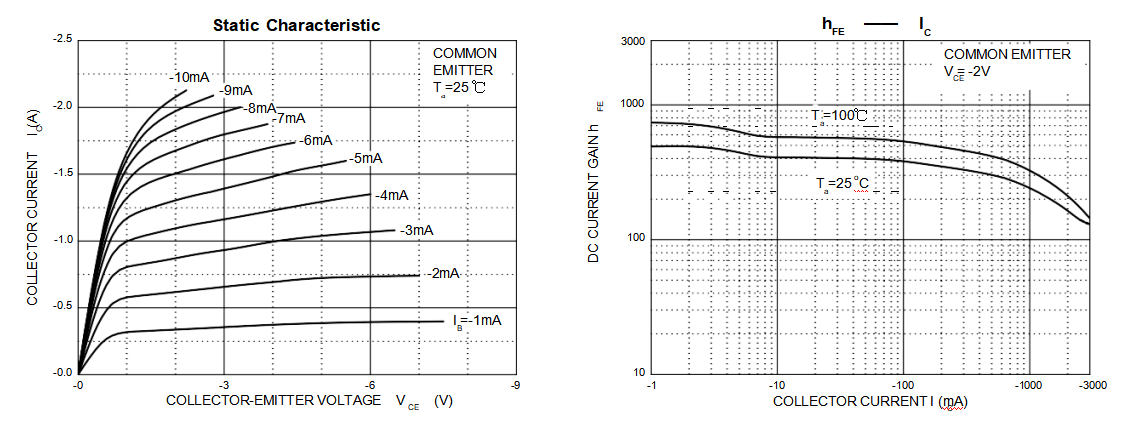

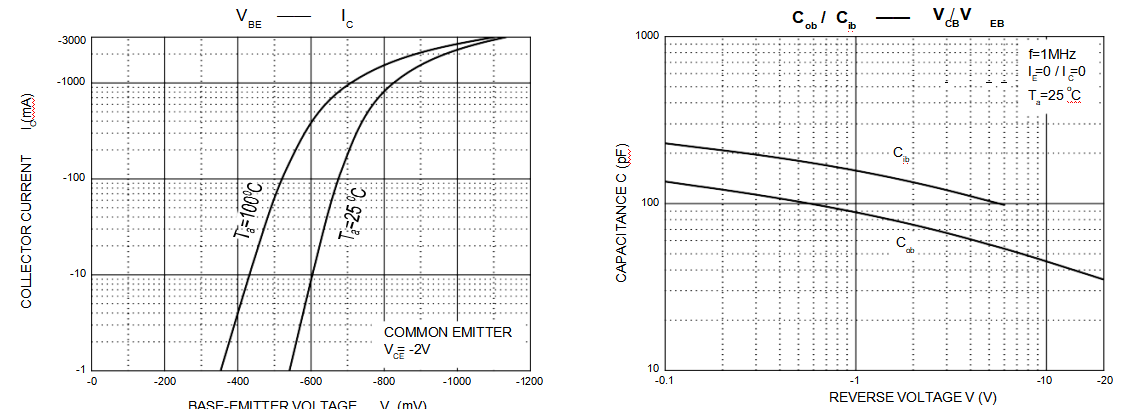

Typical Characteristics

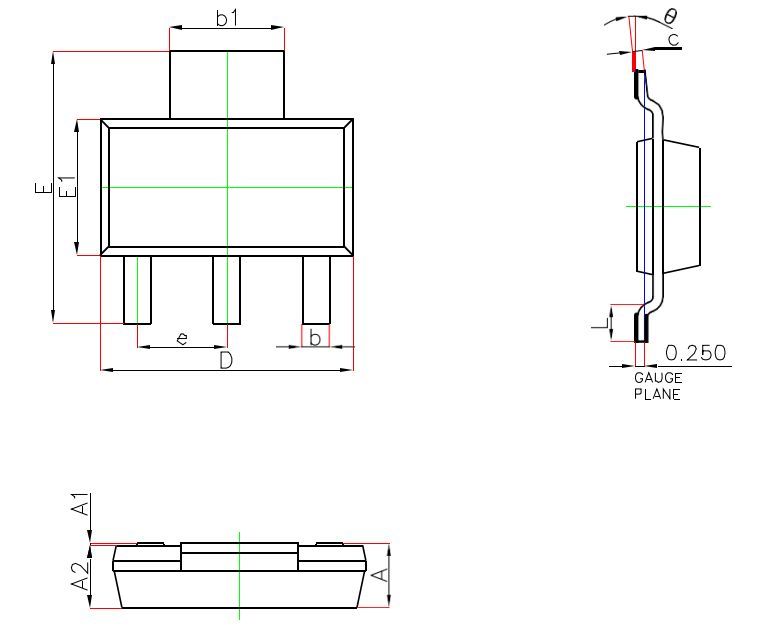

Package Outline Dimensions
| Symbol | Dimensions In Millimeters | Dimensions In Inches | ||
| Min. | Max. | Min. | Max. | |
| A | —— | 1.800 | —— | 0.071 |
| A1 | 0.020 | 0.100 | 0.001 | 0.004 |
| A2 | 1.500 | 1.700 | 0.059 | 0.067 |
| b | 0.660 | 0.840 | 0.026 | 0.033 |
| b1 | 2.900 | 3.100 | 0.114 | 0.122 |
| c | 0.230 | 0.350 | 0.009 | 0.014 |
| D | 6.300 | 6.700 | 0.248 | 0.264 |
| E | 6.700 | 7.300 | 0.264 | 0.287 |
| E1 | 3.300 | 3.700 | 0.130 | 0.146 |
| e | 2.300(BSC) | 0.091(BSC) | ||
| L | 0.750 | —— | 0.030 | —— |
| θ | 0° | 10° | 0° | 10° |

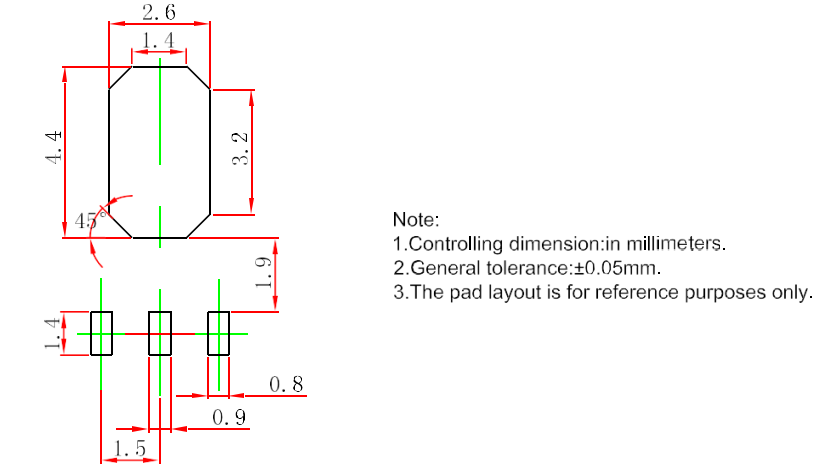

SOT-89-3L Suggested Pad Layout

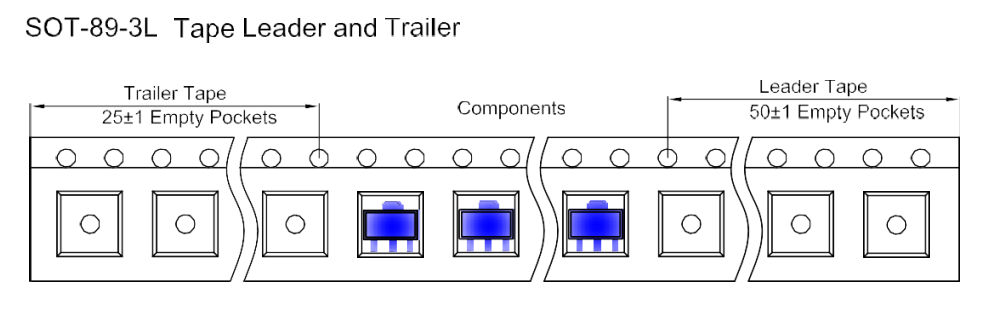

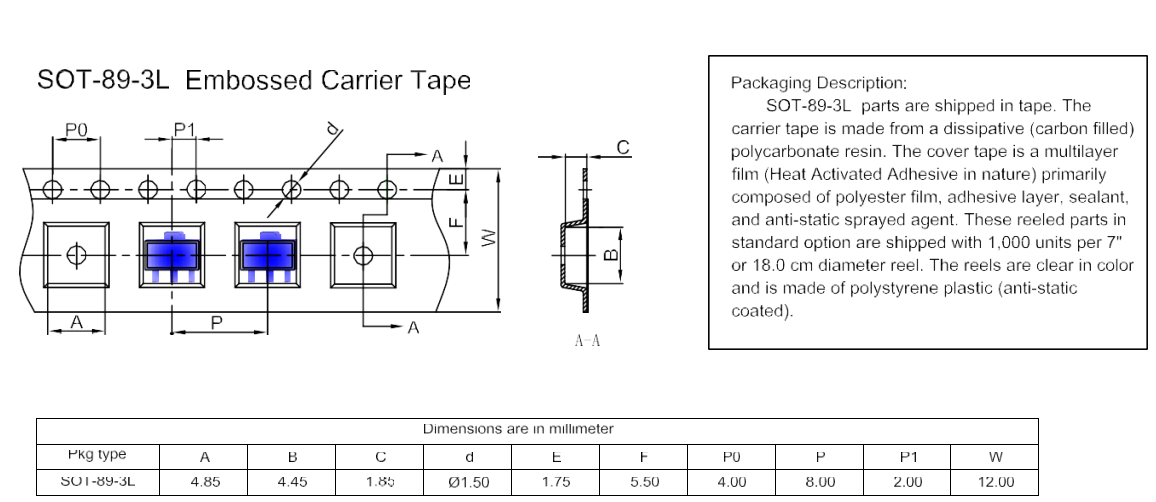

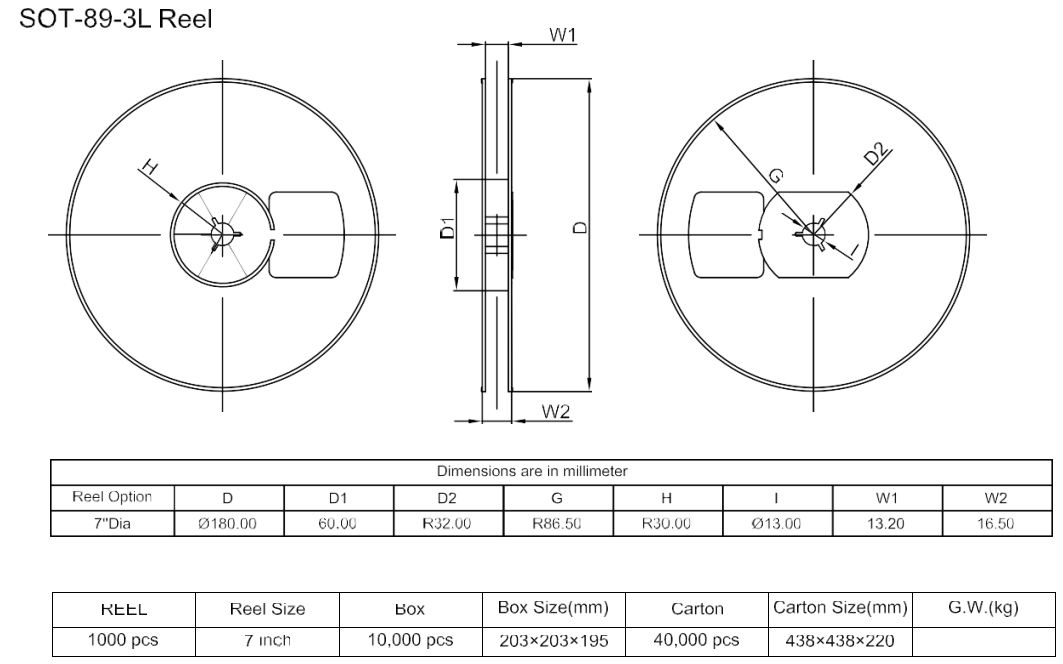

SOT-89-3L Tape and Reel
|
