B / W Portable Ultrasound Scanner With Convex Array Probe For Veterinary

Categories Portable Ultrasound Scanner
Brand Name: STATEMED
Model Number: STT2-BWU74
Certification: CE/ISO
Place of Origin: CHINA
MOQ: 1SET
Price: competitive
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 500sets/month
Packaging Details: 1set/carton
Product name: Ultrasound Portable
Display mode: B;B/B;4B;B +M;M
Dynamic range: 0~120db adjustable
Focus position: Dynamic electron focusing
Permanent storage: 128 images
Output interface: USB port
Certificate: CE, ISO
Weight: 3.6kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

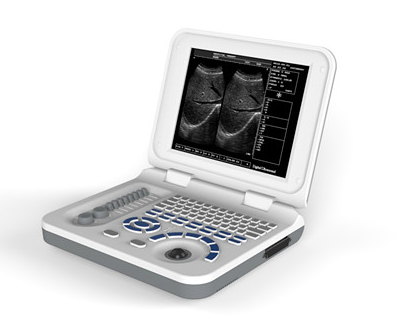

B / W Portable Ultrasound Scanner With Convex Array Probe For Veterinary

China B/W Portable Ultrasound Scanner with Convex Array Probe for Pregnancy Test

Please pay attention:

1. Factory directly price

2. Nice quality

3. Quick shipping within 7-10 days

4. Small order welcome


Main technical specification:


Display modeB;B/B;4B;B +M;M
Display size10.4inch LED displayer
Image multiplying factor3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
E-zoom:Magnify 2 times of real time image
Dynamic range0~120db adjustable
Focus positionDynamic electron focusing
Image proessing8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale256 levels
Frequency conversion2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion
Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring functionDistance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function:Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide3.5MHz convex array probe can display punture guide in B mode
Gain control8segments TGC and overall gain can be adjusted respectively
Image polarityLeft and right flip; up and down flip
Capacity cine loopReal time display 256 consecutive images which are moemorized successively
Image playbackSeries playback or check one by one
Permanent storage128 images
Output interfaceUSB port
Standard configurationUltrasound machine with 3.5Mhz convex array probe and power adapter

Standard Configuration:

1.One host machine

2.One convex array probe:F=3.5MHZ

3.One power adapter

4.11.1 V 2500MAH Li battery

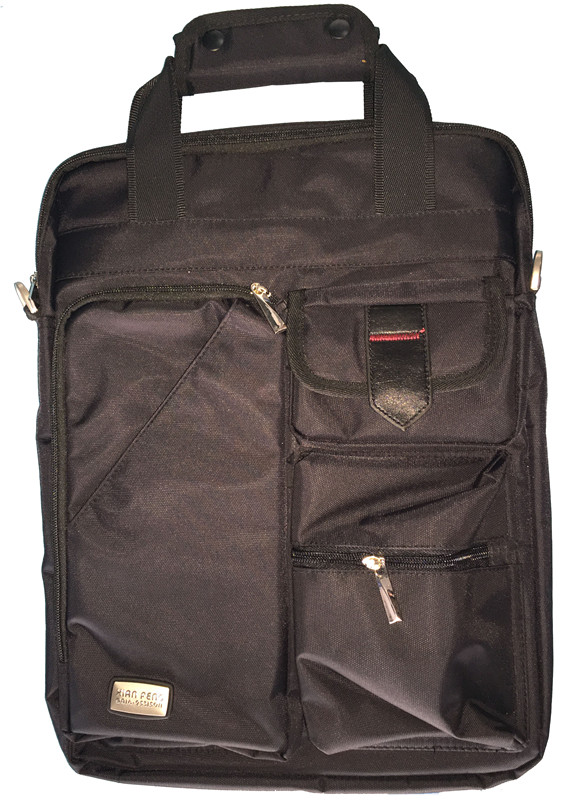

The machine comes with one bag for free



Shipping: STATEMED cooperate with FEDEX, DHL, EMS, UPS, TNT and international shipping company, will make your goods arrive at destination quickly and safely.
