Single Turn Wirewound Potentiometer WX118

Categories Carbon Composition Potentiometer
Brand Name: ANYO
Model Number: WX118
Place of Origin: CHINA
MOQ: 1000pcs
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 30000 per day
Delivery Time: 8-10 work days
Packaging Details: 2000pcs/carton, 16kg, 39*31*25cm
Other name: Rotary potentiometer
Application: Instruments
Temperature coefficient: ±100ppm/℃
Resistance tolerance: ± 10%
Resistance taper: A
Rotary life: 5000 cycles
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

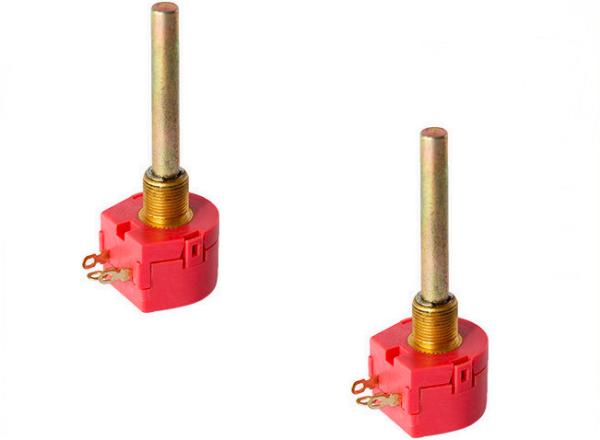

Single Turn Wirewound Potentiometer WX118

Metal Shaft 1W Single Turn Wirewound Rotary Potentiometer WX118


Features:


• Long life

• Dust proof construction without any opening part

• Better feeling


Characteristics:


Temperature Coefficient±100ppm/℃
Rated power1W/40℃
Max. operation voltage220V
Resistance range5Ω~22KΩ
Allow desistance tolerance± 10%
Max. contacting voltage100mA
Residual resistance2Ω Max.
Effective electrical travel

Mechanical 258°±5°

Electrical 270°±5°

Dielectric strength (Room conditions)AC1000V
Insulation resistanceMore than 1000MΩ at DC500V
Shaft torque3.5~100mN.m
Resistance taperA
Insulation resistance1GMΩ
Shaft stopper strength70Ncm
Push pull strength100N
Total rotational angle300°±5°
Rotary life5000 cycles without discontinuity
Soldering235℃±5℃ ≤3s

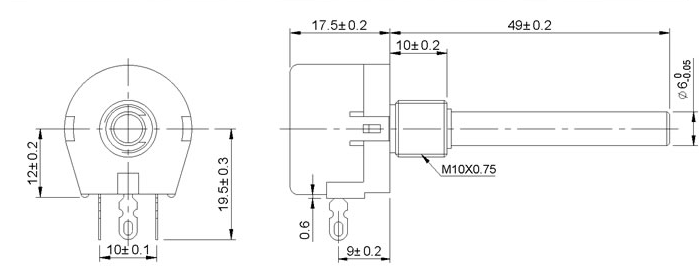

Dimension:
