| Categories | Aluminium Alloy Sheet |
|---|---|
| Brand Name: | SINOY |
| Model Number: | 5052 |
| Certification: | SGS,TUV, ISO |
| Place of Origin: | CHINA |
| MOQ: | 2Tons |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000Tons per month |
| Delivery Time: | 15-25 days after received 30%T/T of deposit or L/C original |
| Packaging Details: | waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20GP / 40GP |
| Name: | 5754 Aluminium Alloy Sheet |
| Thickness: | 0.2-8.0mm |
| Width: | 300-2000mm,normal size 1000mm 1219mm 1250mm 1500mm |
| Length: | 1000-6000mm or In Coil |
| Surface: | mirror,color,mill finished |
| Other Grade: | 5005 5754 5083 5086 |
| Trade Term: | FOB SHANGHAI PORT ; CFR ; CNF ; CIF ; EXW |
| Standard: | SGS,TUV, ISO |
| Type: | Sheet or coil |
| FOB Port: | Shanghai Or As Required |

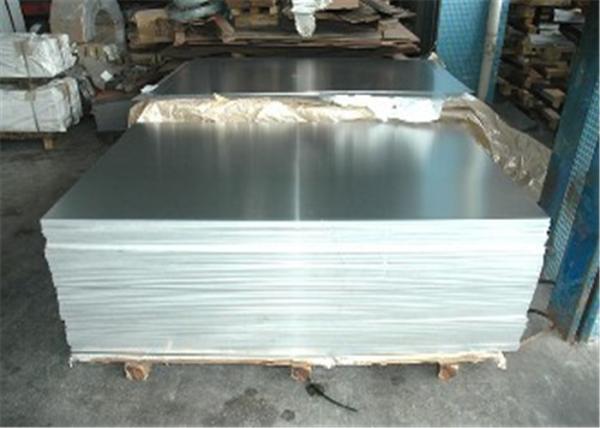

5000 Series 5754 Aluminium Alloy Sheet For Elevator decoration
sheet metal aluminum sheet : 0.2-2.00mm
medium plate aluminum sheet : 6.0-25.00mm
Standard aluminum sheet:2.0-6.0mm
| Width | 300-2000mm,normal size 1000mm 1219mm 1250mm 1500mm | |||||||||
| Thickness | 0.2-8.0mm | |||||||||
| Surface | mirror,color,mill finished | |||||||||
| Payment term | 30% T/T in advance,70% before shipment ,or 100% L/C at sight | |||||||||
| Delivery time | 20-35days after received 30%T/T of deposit or L/C original | |||||||||
| Port | Shanghai,Qingdao,etc | |||||||||
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al |
| Content | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | 0.2 | 0.15 | 0.05 | Remain |
| Grade | Temper | Thickness/mm | Tensile strength/MPa | Yield strength/MPa | Elongation/% | |||||
| 5754 | O H111 | ＞0.20-0.50 | 190-240 | ＞80 | ＞12 | |||||
| ＞0.50-1.50 | ＞14 | |||||||||
| ＞1.50-3.00 | ＞16 | |||||||||
| ＞3.00-6.00 | ＞18 | |||||||||
| ＞6.00-12.50 | ＞18 | |||||||||
| ＞12.50-100.00 | / | |||||||||
| H12 | ＞0.20-0.50 | 220-270 | ＞170 | ＞4 | ||||||
| ＞0.50-1.50 | ＞5 | |||||||||
| ＞1.50-3.00 | ＞6 | |||||||||
| ＞3.00-6.00 | ＞7 | |||||||||
| H22 H32 | ＞0.20-0.50 | 220-270 | ＞130 | ＞7 | ||||||
| ＞0.50-1.50 | ＞8 | |||||||||
| ＞1.50-3.00 | ＞10 | |||||||||
| ＞3.00-6.00 | ＞11 | |||||||||
| H14 | ＞0.20-0.50 | 240-280 | ＞190 | ＞3 | ||||||
| ＞0.50-1.50 | ＞3 | |||||||||
| ＞1.50-3.00 | ＞4 | |||||||||
| ＞3.00-6.00 | ＞4 | |||||||||
| H24 H34 | ＞0.20-0.50 | 240-280 | ＞160 | ＞6 | ||||||
| ＞0.50-1.50 | ＞6 | |||||||||
| ＞1.50-3.00 | ＞7 | |||||||||
| ＞3.00-6.00 | ＞8 | |||||||||
| H16 | ＞0.20-0.50 | 265-305 | ＞220 | ＞2 | ||||||
| ＞0.50-1.50 | ＞3 | |||||||||
| ＞1.50-3.00 | ＞3 | |||||||||
| ＞3.00-6.00 | ＞3 | |||||||||
| H26 H36 | ＞0.20-0.50 | 265-305 | ＞190 | ＞4 | ||||||
| ＞0.50-1.50 | ＞4 | |||||||||
| ＞1.50-3.00 | ＞5 | |||||||||
| ＞3.00-6.00 | ＞6 | |||||||||
| H18 | ＞0.20-0.50 | ＞290 | ＞250 | ＞1 | ||||||
| ＞0.50-1.50 | ＞2 | |||||||||
| ＞1.50-3.00 | ＞2 | |||||||||
| H28 H38 | ＞0.20-0.50 | ＞290 | ＞230 | ＞3 | ||||||
| ＞0.50-1.50 | ＞3 | |||||||||
| ＞1.50-3.00 | ＞4 | |||||||||
| H112 | ＞6.00-12.50 | ＞190 | ＞100 | ＞12 | ||||||
| ＞12.50-25.00 | ＞90 | / | ||||||||
| ＞25.00-40.00 | ＞80 | / | ||||||||
| ＞40.00-80.00 | / | |||||||||
| F | ＞2.50-150.00 | / | / | / | ||||||
| Division | Description | Application | Feature | |||||||
| 5005 | The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series. | Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools.Automobile Components. | Excellent corrosion resistance andweld ability together with Easy to process and weld and superior hardness &heat proof .Can be anodized for increased corrosion resistance. | |||||||
| 5754 | ||||||||||
| 5052 | ||||||||||
| 5083 | ||||||||||
| 5086 | ||||||||||
Packing:
1.Paper or film covering to ensure the surface without scratch.
2.Plastic or kraft paper wrapped for moisture and rain.
3.Wooden and steel reinforcement, to avoid collision in transportation.
4.Packed in wooden boxes and brackets marked by fumigation.
5.According to customer required.
|
