Easy Use Windows Mobile Barcode Scanner For All OBD2 Protocol Cars

Professional OBD2 Car Handheld Barcode Scanner Auto Diagnostic Fault Code Reader Tool For All OBD2 Protocol Cars

Description Details Introduce

1.I/M Readiness, TFT color display and built-in speaker.

2.The KW818 is truly the ultimate in power and affordability, users jobs faster.

3.Thousands of troubleshooter code tips help technicians to save diagnosis and repair time.

4.KONNWEI KW818 OBDII/EOBD scanner supports all 10 modes of OBDII test for a complete diagnosis.

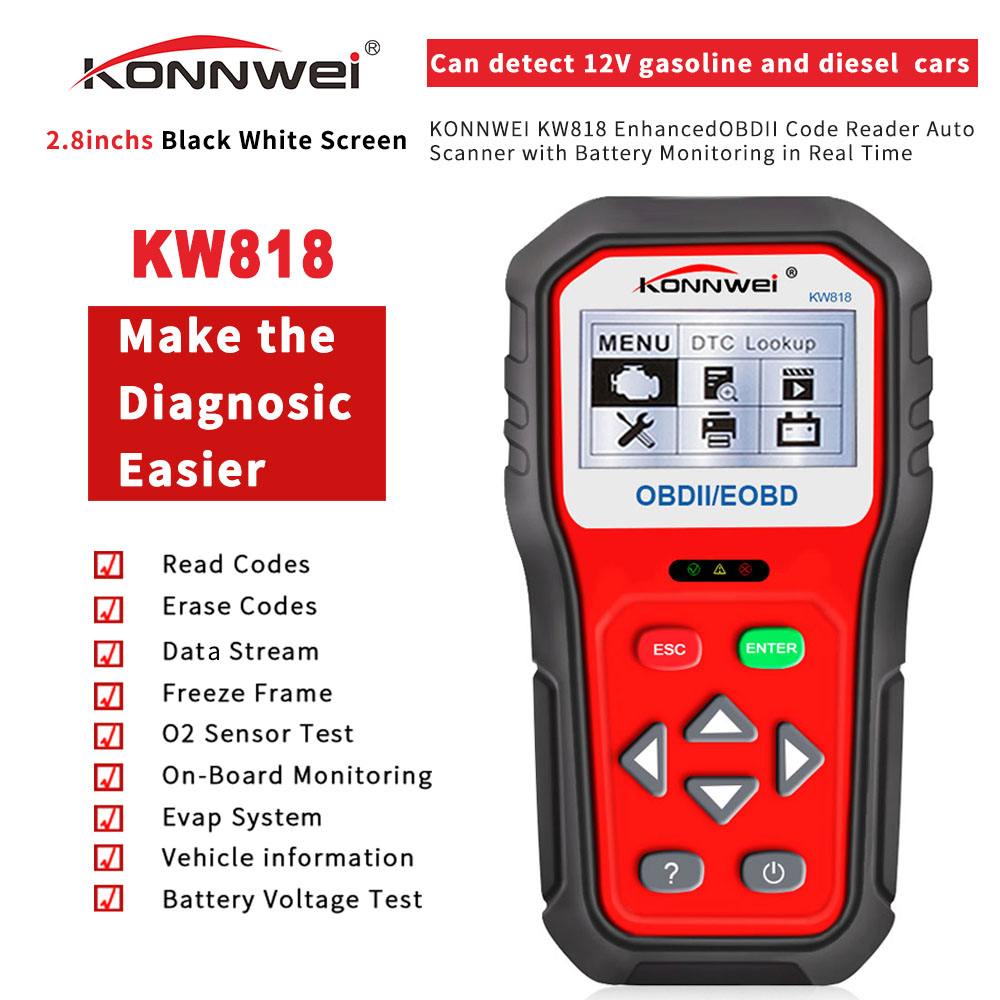

KW818 Products Features

1.Works on all 1996 and later OBDII compliant US, European and Asian vehicles.
2.Easily determines the cause of the Check Engine Light ( MIL).
3.Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes.
4.Turns off Check Engine Light (MIL), clears codes and resets monitors.
5.Displays DTC definitions on unit screen, views freeze frame data.
6.Displays monitor and I/M readiness status (emissions).
7.Identifies pending codes, Reads live PCM datastream.
8.Displays live O2 sensor test data, Graphs data C (1996 and newer).
9.Reads, stores & playbacks live sensor data, Performs modules present test.
10.Memory/battery backup for off-vehicle data review and analysis.
11.Retrieves vehicle information (VIN, CIN and CVN), Supports CAN (Controller Area Network) and all other current

Support Protocol

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

English, Spanish, French, Russian,German, Dutch.

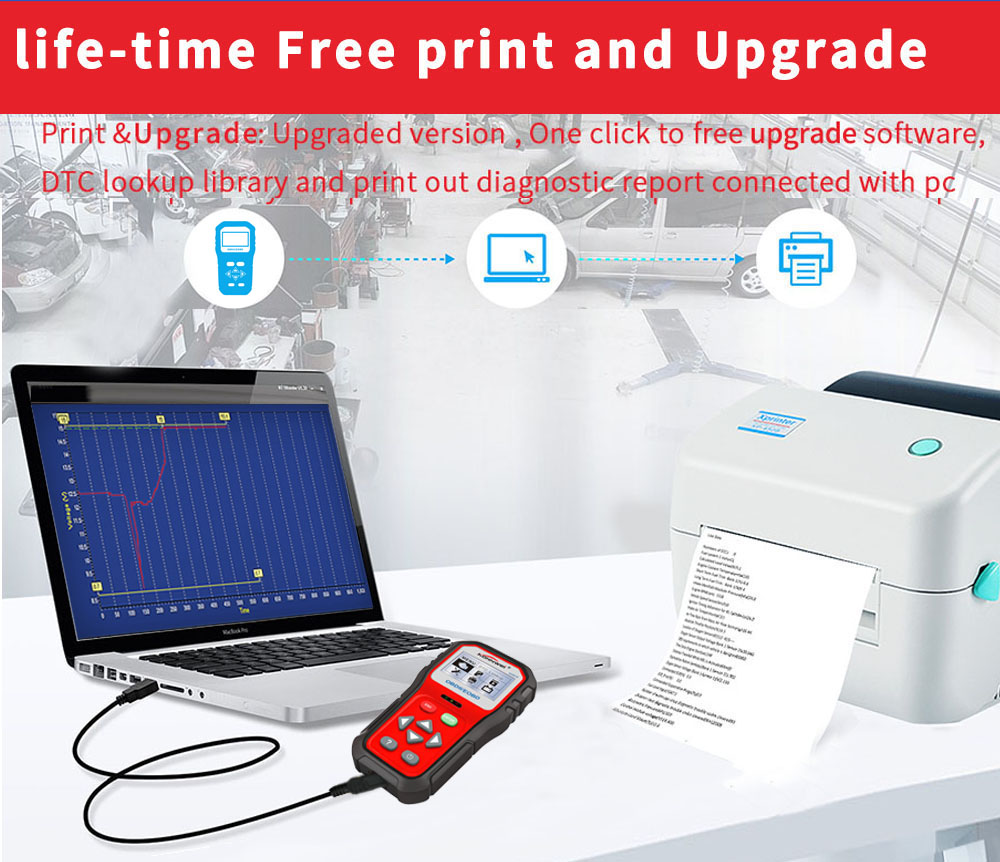

KW818 Supports Free Update
1. Load the CD and install the 'KONNWEI' Program on your computer.
Notice: Please turn off anti-virus software when installing, otherwise it will not be able to install the driver properly.
2. Connect the KW818 Scanner to PC, Meanwhile press any button of KW818, you will see below pictures shows
3. Download Latest patch or contact us for latest software , and select the fls file to update the DTC library; Select the ROM file to update the program inside the scanner.
4. Wait for the update process finished, the scanner KW818 will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while.

Package

1*KW818 Scanner

1*1500mm length OBDII Connecting Cable

1*USB

1*User Manual
