Fire Resistance Steel Structure Workshop With Grey Or Blue Color Steel Claddings

New Design Steel Structure Workshop With Grey or Blue Color Steel Claddings

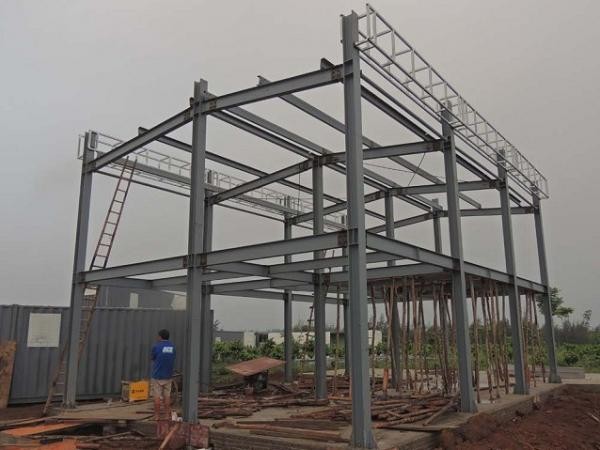

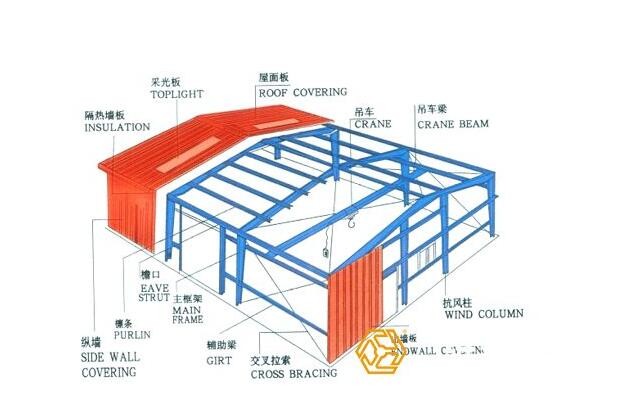

Dongguan Hongfa steel structure workshop has features of high fire resistance, strong corrosion resistance. Steel structure workshop is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.

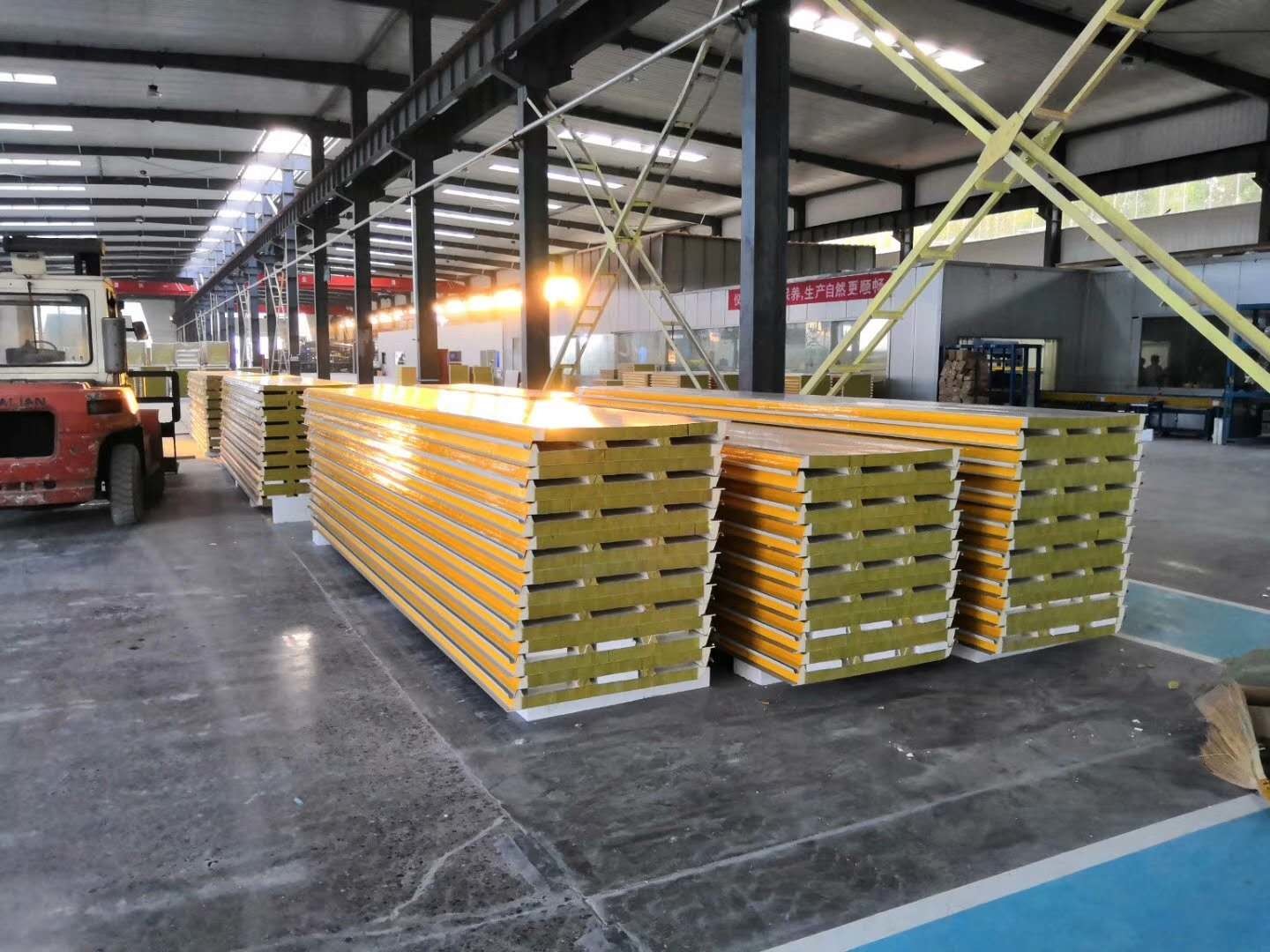

The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. Composite panel for roof and wall can also be used in our system such as polystyrene, glass fiber, rock wool, polyurethane sandwich panel which have good thermal insulation, heat insulation, fire-retardant performace. The wall of the steel structure maintenance also can use brick wall.
The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.

Characteristics
1. Different types and sizes according to customer’s demand: large or small, wide span, single span or multiple spans. The max span is 36m without middle column.
2. Low cost and maintenance advantages.
3.Fast construction and easy installation: time saving and labor saving, all the items are factory-made, pre-cut, pre-welded, pre-drilled, pre-painted.
4.Reduced construction waste, long using lifespan: up to 50 years.
5. Nice appearance.
6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

If need cost, please send following information to us for pricing.

1. Data for design
Wind speed (KM/H)
Snow load (KG/M2)
Rain load (KG/M2)
Earthquake load if have
Demands for doors and windows
Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure.

2. Material quality
Windows and doors quantity, size and location
Roof and wall material, sandwich panel or corrugated single steel sheet

3. Type
size--width, length, eave height and roof slope
single slope or double slope
single floor, double floor or multi floor

Hongfa Steel Group, was founded in 1993, the headquarter is located in East Industrial Park of Dongguan City. As a large-scale leading Group, who has been Integrated by pre-fabricated steel structure materials manufacturing, design, installation, modular house fabricating, steel coil, processing center, steel business international trading, sectional steel, hot-rolled steel, long steel and flat steel trading. After more than 20 year development, Hongfa group have 6 big factories in mainland China, and 3 company in Hong Kong, and one office in Singapore.
