| Categories | Soft Gel Encapsulation Machine |
|---|---|
| Brand Name: | Grand Packing |
| Model Number: | TM-100 |
| Certification: | CE ISO GMP |
| Place of Origin: | Beijing |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, MoneyGram, Western Union |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 35-45 days |
| Packaging Details: | standard export wooden case |
| Key word: | softgel encapsulation machine |
| Revolution speed of mould: | 0-3.5rpm |
| Plunger quantity: | 8 |
| Sea port: | Shanghai, ningbo port |
| TM100 Main Machine System | |||||
| Room requirement (single for reference): its area should be 20㎡ with the floor height between 2.5m and 3m; the temperature should be controlled between 18-26•C while the relative humidity 25%-35%. | |||||
| NO. | Device Name | Unit | Qty | Technical Parameters | Remark |

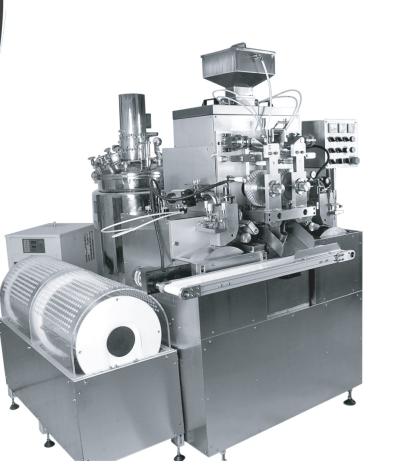

| 1 | TM100 type capsule pressing machine | set | 1 | 1.Revolution speed of mould: 0-3.5rpm 2.Production capacity: 18360 capsules/h (OV10,3rpm) oils 24480 capsules/h (OB20 3rpm) oils Estimate according to samples provided by customer. 3.Plunger quantity: 8 4.The injecting quantity precision error:<±1.5% 5.Ultromicro lubricating system, the sofe capsules free from cleaning 6.Insulation material hopper with agitator 7.Automatic feeding 8.SMC pneumatic system, high reliability 9. Germany Moller electrical components, high reliability 10.Outline dimension: 1800×900×1750mm 11.Power: 3.5KW 12.Electrical system: three-phase five-wire system, 380v/50Hz | |
| 2 | conveyor | set | 1 | Pu belt, light-type structure | power counted in main motor |
| 3 | mould | set | 1 | aviation aluminum | |
| 4 | cooling water system | set | 1 | independent cooling water system | power counted in main motor |
| 5 | touch screen | 1 | PLC | ||
| 6 | feeding pump | 1 | |||
| 7 | capsule conveying fan | 1 | |||
| 8 | box for spare parts and accessories | set | 1 | tools,spare pares and accessories | |
| Gelatin Melting System (the platform, pipeline and valve systems are exclusive) | |||||
| Room requirement (single for reference): its area should be 15㎡ with the floor height between 4.5m and 5m; the temperature should be controlled between 22-26•C while the relative humidity 40%-50%. | |||||
| NO. | Device Name | Unit | Qty | Technical Parameters | Remark |
| 1 | integrated gelatin melting system | set | 1 | 1.Three-layer thermal insulation and heating structure, electrical
heating, vacuum function 2.Multiple impellers, agitation speed: 51rpm 3.Physical volume: 250L, Working volume: 180L 4.Vacuum degree: 0.09Mpa 5.Working temperature: 0-100℃ 6.Outline dimension: 960×715×1850mm 7.Power: 9.7KW 8.Electrical system: three-phase five-wire system, 380v/50Hz 9.Material: 304 stainless steel | 250L water-bath gelatin melting tank |
| set | 1 | tank cover and agitator blade lift system | integrated hydraulic lift system | ||
| set | 1 | - | integrated vacuum condensation system | ||
| set | 1 | - | integrated steam-water separator | ||
| set | 1 | - | integrated water ring vacuum pump | ||
| set | 1 | control range: heating, agitating, vacuum and work light etc. | integrated control cabinet | ||
| 2 | insulation barrel for liquid gelatin | set | 1 | 1.Barrel with three layers 2.Temperature control range: 0-100℃ 3.Volume: 200L 4.Outline dimension: Φ700×1330mm 5.Power: 2kw 6.Electrical system: three-phase five-wire system, 380v/50Hz 7.Material: 304 stainless steel | movable and functions of heating and pressure maintaining together in one |
| 3 | |||||
| Drying System | |||||
| Room requirement: its area should be 10㎡ with the floor height between 2.2m and 2.5m; the temperature should be controlled between 18-26•C while the relative humidity 20%-25%. | |||||
| NO. | Device Name | Unit | Qty | Technical Parameters (single) | Remark |
| 1 | rotary cage dryer | section | 2 | 1.Size of single cage: Ф316×417mm 2.Revolution speed: 18-30rpm 3.Outline dimension: 1400×450×800mm 4.Electrical system: three-phase five-wire system, 380v/50Hz | |
| 2 | drying tray | N | 180 | 1.Outline dimension: 750×475×55 mm 2.Material: medical grade PP | |
| 3 | drying tray carriage | N | 6 | Material: 304stainless steel | |
|
