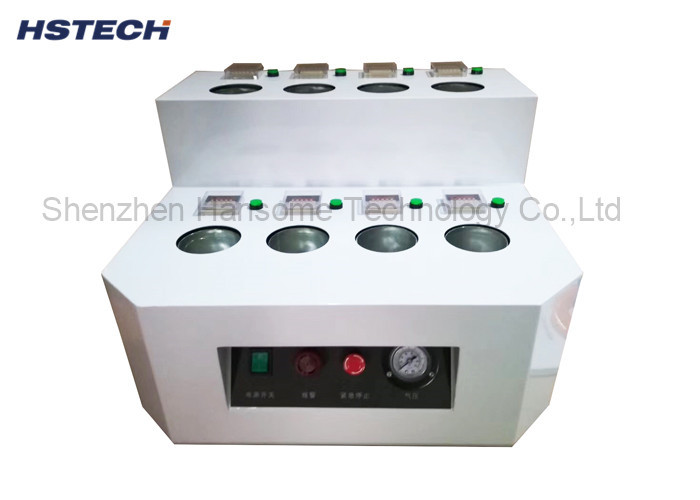

New 8 Tank Solder Paste Thawing Machine for Standard Size Bottle or
Customized
Introduction
This automatic solder paste thawing machine used as a timer, when the solder paste is taken out from the
refrigerator, the temperature is low, and this machine use the
timer to timing the solder paste back to room temperature,it's effectively control the temperature of the solder paste to ensure
the solder paste activity.
Features
1, Accurate control the solder paste temperature, make sure the
activity of the solder paste before screen printing.
2, PLC Control, import high quality parts assemblying.
3, Standard size tank, suitable for difference model solder paste.
4, Electricity interruptted protection,
5, Aging tank with FIFO function, after timing, take out the solder
paste during order.
6, In the case of out of power accidently, even if not reach setted
time, solder paste bottle will automatically pop up.
7, With alarm system, it rings when finished timing, also equipped
with a emergency button.
Specification
Model | HS-SP-8N |
Timer | LED display timer |
Solder paste size | 500g standard size |
Time setting range | max 999 hours |
Tank size | For standard solder paste, others need customized |
Power | AC220V, 50Hz |
Air Pressure: | 0.4Mpa |
Placing tank: | 8 tanks |
Machine Demension: | 500*520*320mm(W*D*H) |
Gross Weight: | 30KG |
