Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads

Categories Cable End Fittings
Brand Name: PHIDIX
Model Number: Customized
Certification: IATF16949
Place of Origin: China
MOQ: 1 Piece/Pieces
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Delivery Time: 7-40 work days
Packaging Details: carton or wood case
Name: Control Cable Assembly With Twist Lock Control Heads
Materials: Plated carbon steel corrosion-proof control heads
Feature: High Temperature Resistance, Low Loss, Long Service Life
Cover Color Options: Black or as Per Requirements
Application: Engine shut down/Engine choke/Latch operation/Valve operation
Length: Customized
Load: 100lb Maximum
Travel: 3” Maximum
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads


Control Cable Assembly With Twist Lock Control Heads


【 Product Description 】

Twist Lock control heads are a robust and simple design with only one moving part. They are cost effective solutions to mechanically connecting and locking a manual input source to a remote output.


【 Common Applications 】

Engine shut down, engine choke, latch operation, valve operation


【 Features 】

• T-handle is free to travel the full length of the control until locked

• Rotating the T-handle 1/8 turn in either direction along the travel will secure loads up to 100 lb., yet unlocks with ease

• Especially effective when space is limited or rod linkage and bell cranks are not suitable choices


【 Technical 】

• Load: 100 lb. maximum

• Travel: 3” maximum

• Threaded mount


【 Material 】

• Plated carbon steel corrosion-proof control heads

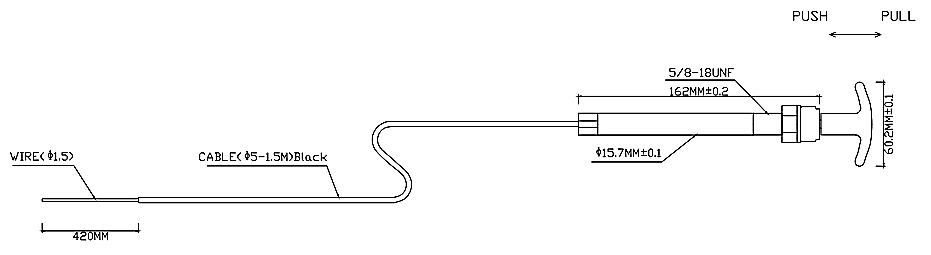

Drawing

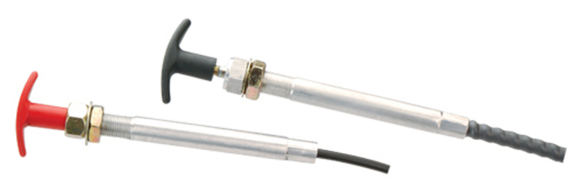

【 Real Picture 】


Cheap Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads for sale
