USB Optical Distance Measurement Sensor For Precise Monitoring System

Categories Optical Distance Measurement Sensor
Brand Name: JRT
Model Number: 1U85190709
Certification: CE ,ISO9001,ROHS, FCC ,FDA.
Place of Origin: Chengdu China
MOQ: 1
Price: Negotiation
Payment Terms: T/T, Western Union, Pay pal
Supply Ability: 10000 pcs/day
Delivery Time: 1-3 working days
Packaging Details: neutro-packing
PRODUCT NAME: 5m Lidar Distance Sensor TTL
ACCURACY: +-1mm Lidar Distance Sensor TTL
size: 41*17*7mm Lidar Distance Sensor TTL
Weight: About 4g
Measuring Range: 0.03-5m
Voltage: DC2.0V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

USB Optical Distance Measurement Sensor For Precise Monitoring System

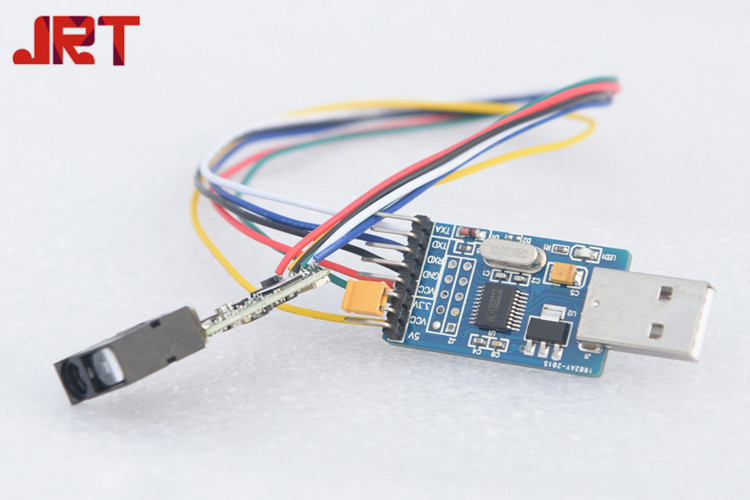

5m USB Optical Distance Measurement Sensor For Precise Monitoring System 1mm U85


Description:

5m Optical Distance Measurement Sensor is one of JRT distance sensor model, we call it U85. A number of Optical Distance Measurement Sensor Technologies have been developed to make it possible to build an effective monitoring system, according to the precise accuracy up to 1mm. ALso, the U85 Optical Distance Measurement Sensor supports ttl, usb data output.


Optical Distance Measurement Sensor​ Feature:

1. Good for Industrial laser distance sensor

2. Support single measurement/continous measurement

3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional


Specifications of Industrial Optical Distance Measurement Sensor:

Brand NameJRT
Product NameOptical Distance Measurement Sensor
Model NumberU85
CertificationFDA/ISO9001/CE/ROHS/FCC
Place of OriginChina
Accuracy±1 mm (0.04 inch)
Measuring Unitmeter/inch/feet
Measuring Range (without Reflection)0.03-5m
Measuring Time0.125~4 seconds
Laser ClassClass II
Laser Type620-690nm, <1mW
Size41*17*7mm (±1 mm)
WeightAbout 4g
VoltageDC2.0~3.3V
Electrical LevelTTL/CMOS
Frequency3HZ / 8Hz
Operating Temperature0-40 ℃ (32-104 ℉ )
Storage Temperature-25~60 ℃ (-13~140 ℉)
PackagingNeutro-packing

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.120m,150m can be customized.

4. Voltage can be changed by power converter LDO

5. Frequency would be affected by environment.

6. Operating temperature -10 ℃~50 ℃ can be customized.
