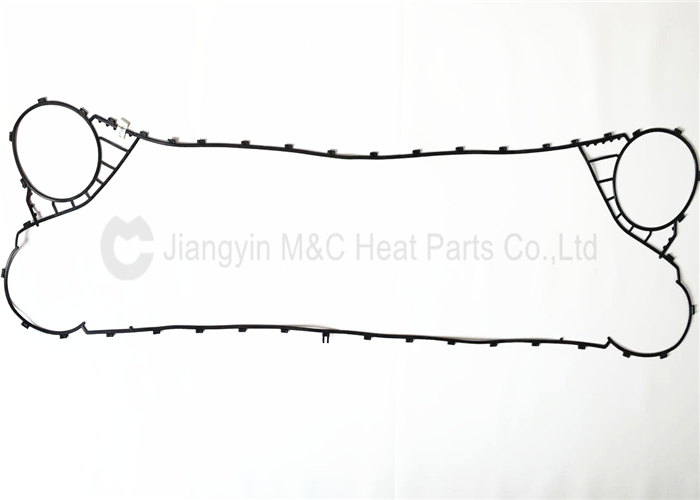

Flow Control Gaskets , Plate Heat Exchanger Gaskets Contain Pressure AT161

Function

Plate heat exchanger is a heat continuous transmission from one medium to another medium energy without increasing process of the device. The basic concept of plate and frame type heat exchanger is in thin corrugated metal plate on both sides of the two kinds of liquid flows, so you can easily transfer heat between the two.

Structure

M&C plate heat exchanger is composed of a certain number of gaskets, they fixed between the top bearing bar and lower guide rod. Plate with fixed frame plates (head) and movable framework (follower) the connection between the rod is compressed. Connect the fluid through the framework into the plate heat exchanger and distribution between the plates. Through board alternate between channel flow control by place the gasket. These can be single line and multiple lines arrangement, depends on the application.


PHE Gasket And Plate Material

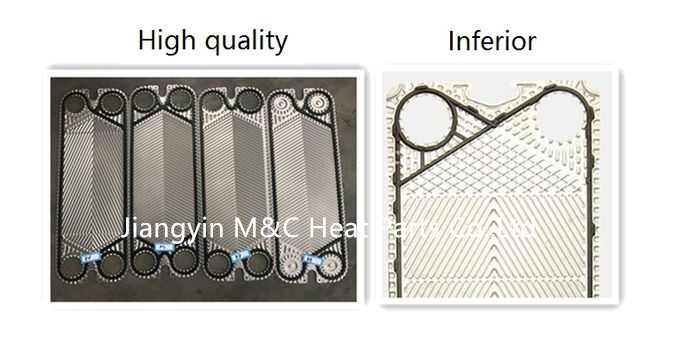

High quality rubber gasket: the product surface is smooth, soft, moderate hardness, elasticity, luster appearance is full, telescopic ductility can be good, no flash, no odor or smell partial light, the product can use commonly 3-5 years;

Inferior rubber gasket: product surface is rough, flash trim not neat, after tensile resilience to poor, gloss dark, strong scent and products normally only use a few months to a year, must be replaced!

Quality of plate, plate material containing trace elements, the characteristics of consequence of plate is inconsistent, the same of the same material, but the plate of high and low nickel content will cause the service life of the plate length. Good plate not only depends on the plate of material, design and mold processing, good a shape stamping mold, plate surface is smooth, no cracks;

Inferior plate: the surface of the difference is not obvious, but the service life is short, corrosion resisting compression performance is poorer, it is easy to produce cracks, caused by plate in leak, cannot use, increase the cost.

Company Profile

M&C Plate Heat Exchanger is a China heat exchanger manufacturer located in Wuxi, Jiangsu. M&C began replacement gaskets sales business in 2011, performing service and maintenance on heat exchanger gaskets and plates for other OEM models.

M&C operates at the forefront of thermal technology, offering innovative and effective heat transfer products worldwide with a strong focus on managing energy efficiently.

M&C specialise in the design and manufacturer of a wide range of heat exchangers for industrial, food, dairy, agricultural, hygienic, refrigeration, HVAC and marine applications.

Over these years, M&C has been developing new types of heat exchangers and is committed to working closely with our customers to deliver step by step improvement. We’re proud to operate in a sector where innovation can save energy, reduce waste, and improve final product quality without harming the environment.

Technical Specification

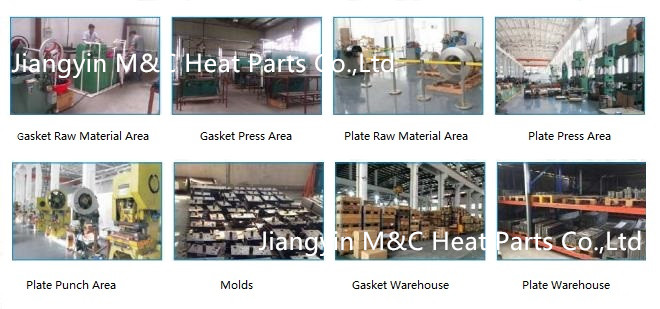

Factory Figure

Jiangyin M&C Heat Parts Co.,Ltd is a China heat exchanger manufacturer located in Wuxi, Jiangsu. M&C performing service and maintenance on heat exchanger gaskets and plates for other models.

M&C operates at the forefront of thermal technology,offering innovative and effective heat transfer products worldwide with a strong focus on managing energy efficiently

M&C specialise in the design and manufacturer of a wide range of heat exchangers for industrial, food,dairy,agricultural,hygienic,refrigeration,HVAC and marine applications.

Over these years, M&C has been developing new types of heat exchangers and committed to working closely with our customers to delivery step by step improvement. We’re proud to operate in a setor where innovation can save energy,reduce waste and improve final product quality without harming the enviroment.

We have professional technical teams to support our products innovation and quality control.

Welcome to visit our plants, and have win-win cooperation together!

Human-oriented, Integrity deelopment, Qulity first, Service sincerely.
