MC10BW Heat Exchanger Gaskets Chemical Industry HVAC

MC10BW Heat Exchanger Gaskets With Video Technical Support

Basic information

Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.

M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.

The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).

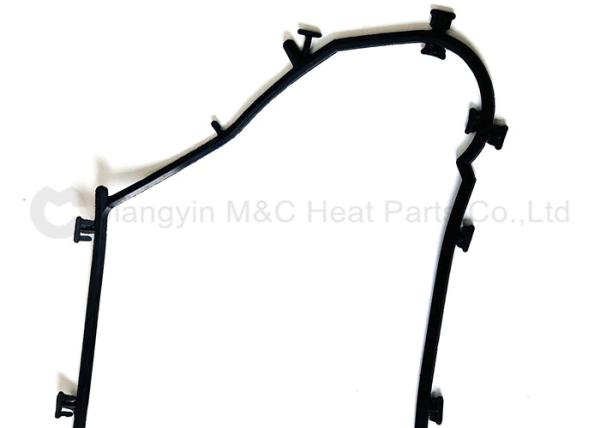

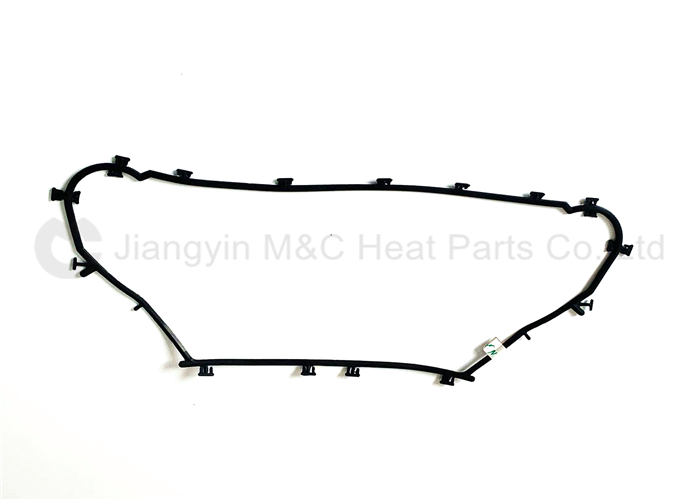

MC10BW Heat Exchanger Rubber Gasket Material

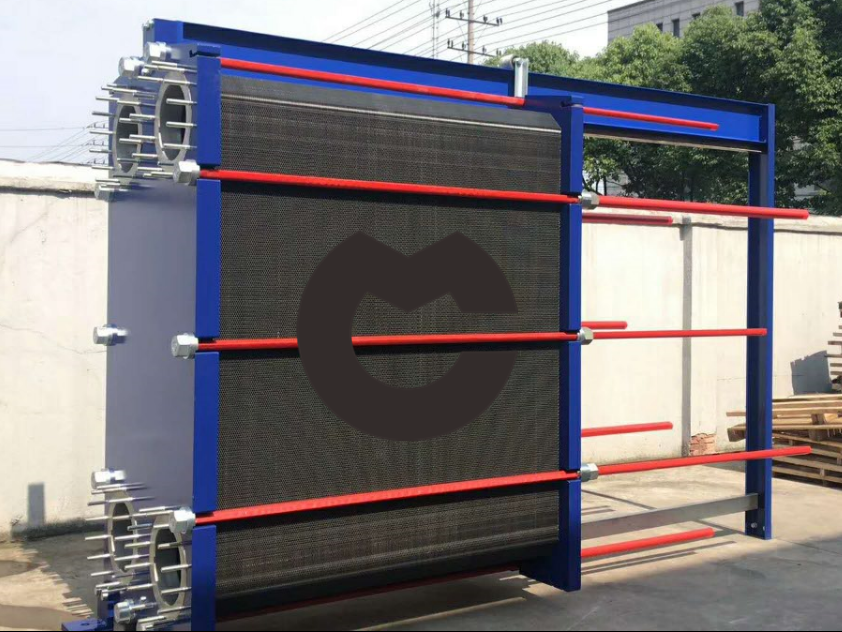

The frame type plate heat exchanger is composed of a set of corrugated metal plates, which are made of stainless steel or titanium plates and other special materials. The plates are mounted with rubber pads and supported by the front and rear frames, pull bolts and other accessories. Through high and low temperature conversion and by two or more kinds of medium, the plates to achieve heat transfer, and sterilization effect. Our products are commonly used in shipping, chemical industry, petroleum, food, medicine, central heating and other fields. MC has been constantly exploring and developing breakthroughs in new fields. At present, it has made some progress in waste water recycling.

Sealing Principle

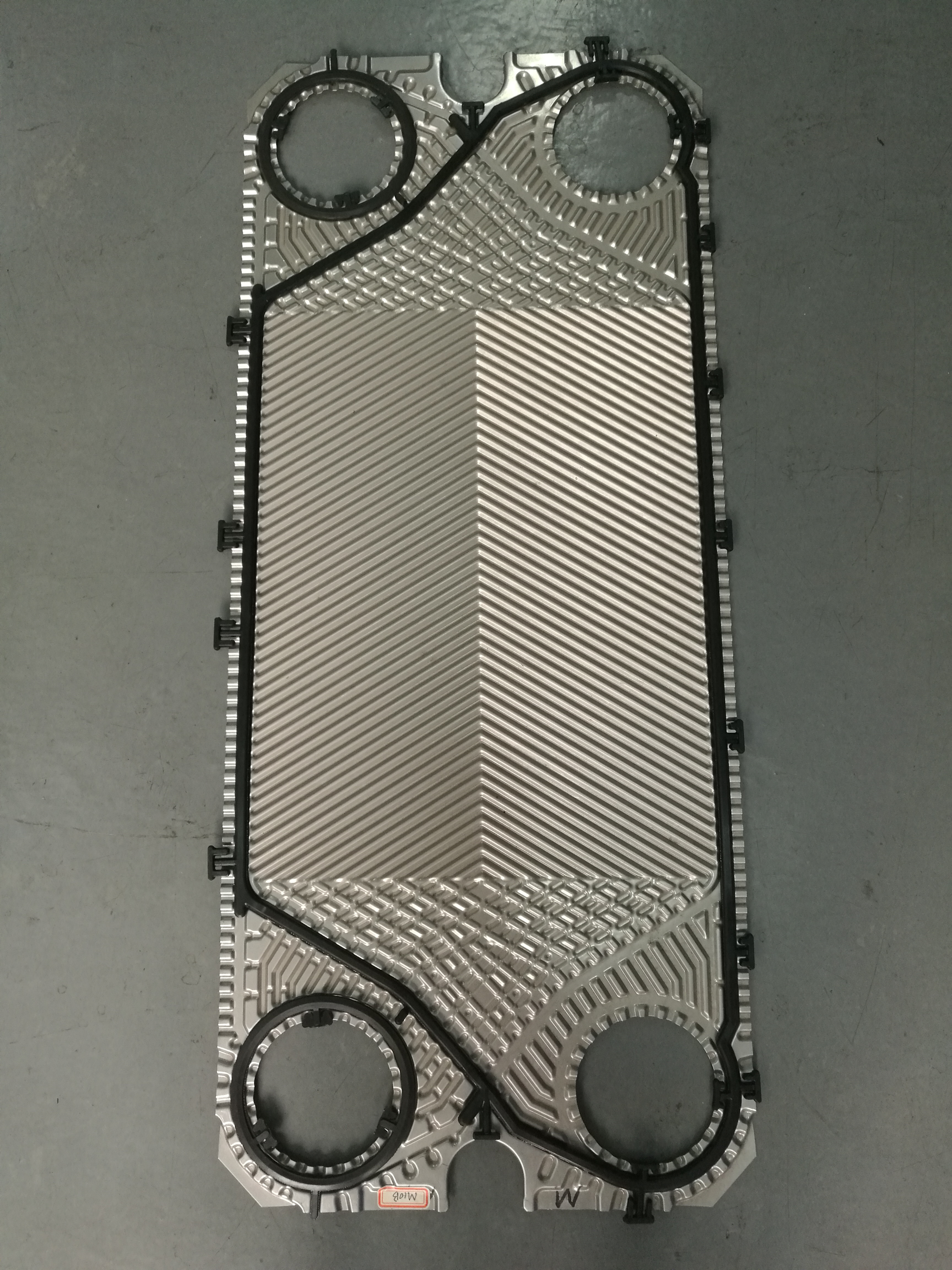

The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole. When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media. Sealing gasket according to different media and operation temperature to choose different types of gaskets.

Brand Name: M&C

Material: NBR,EPDM,HNBR,VITON,FKM

Advantage: Produce plastic deformation and have certain strength

Gasket Feature

• Simple style and good sealing
• Widely used and adaptable
• Resistant to corrosion and high temperature
• Easy to disassemble and maintain

Application Areas/Occasions

HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration

Why Choose Us?

• We always think from the perspective of customers, solve problems and bring higher value to customers.
• More than 8 years of professional experience and expert team.
• Professional production RD team to improve heat exchanger efficiency and reduce operating costs.
• The technical scheme of guaranteed commitment.
• Whole process service from pre-sale to after-sale.
• Help customers reduce risks and save costs to manimize customer benefit

Package:standard export carton, plywood case

Jiangyin M&C Heat Parts Co.,Ltd is a China heat exchanger manufacturer located in Wuxi, Jiangsu. M&C performing service and maintenance on heat exchanger gaskets and plates for other models.

M&C operates at the forefront of thermal technology,offering innovative and effective heat transfer products worldwide with a strong focus on managing energy efficiently

M&C specialise in the design and manufacturer of a wide range of heat exchangers for industrial, food,dairy,agricultural,hygienic,refrigeration,HVAC and marine applications.

Over these years, M&C has been developing new types of heat exchangers and committed to working closely with our customers to delivery step by step improvement. We’re proud to operate in a setor where innovation can save energy,reduce waste and improve final product quality without harming the enviroment.

We have professional technical teams to support our products innovation and quality control.

Welcome to visit our plants, and have win-win cooperation together!

Human-oriented, Integrity deelopment, Qulity first, Service sincerely.
