| Categories | Crimped Wire Mesh |
|---|---|
| Brand Name: | TL |
| Place of Origin: | Hengshui,China |
| MOQ: | 1 roll |
| Price: | According to order quantity can be negotiable |
| Supply Ability: | 2300 Meter/Meters per Month |
| Packaging Details: | inner kraft, outside plastic cloth, put into wooden pallet or case |
| Material: | stainless steel wire |
| Type: | crimped wire mesh |
| Weave Style: | plain crimped/flat top crimped, plain crimped/flat top crimped |
| Feature: | High quality with good prices |
| Length: | 30m or customized |
| Width: | 1m, 1.2m, 2m or customized |
SS304 stainless steel crimped wire mesh,double lock woven wire mesh , Stainless steel crimped wire me
1.Material: Stainless steel wire mesh used AISI302, 304,304L,316,316L,430,309,310S stainless steel wire as raw material.
2.Wire Diameter: 0.015-1.8mm
3.Mesh count:
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3200mesh
4.Aperture: 0.03-10mm
5.Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.
Features:
Corrosion resistance.
Anti-acid and alkai
Anti-high temperature.
Good filter performance.
Long using life
Applicatiosn:
In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.
Improves material flow with flatter surface than other weaves. Lock
weave maintains accurate openings. Also called "Smooth-Top". Most
efficient weave for heavy-duty screens when ratio between width and
wire diameter permits its use. As a general rule, opening width
should be at least 5 times the wire diameter. It is extremely
durable because each wire is locked in place to maintain accuracy
of openings for the life of the screen.
Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot".
This specification is also referred to as "Vibro Type Weave".
Efficient and long wearing in a variety of applications Providing a level, smooth surface, the Smooth weave employs a type of rigidity interlocked crimp that insures maintenance of accurate, uniform openings. When used in the correct application, because of the level weave, there is considerable reduction of friction from material passing over the screen and, in many cases, far less wear from abrasion than in screens made with surface crimps.
Specifications
| SWG | Wire diameter(mm) | Mesh | Aperture(mm) | Weight(kg/m2) |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4. | 1.2 | 2 | 20 |
| 8 | 4.05 | 18 | 1 | 15 |
| 14 | 2 | 3.6 | 1.5 | 1.9 |
| 14 | 2 | 5.08 | 0.3 | 12 |
| 14 | 2 | 2.1 | 1 | 2.5 |
| 14 | 2 | 21 | 1 | 4.2 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.61 | 4 |
| 25 | 0.5 | 20 | 1.5 | 2.6 |

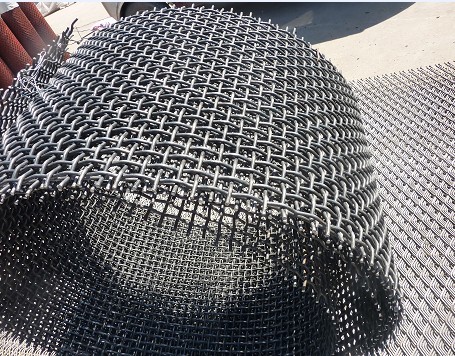

Crimped wire mesh product details
About our company
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
|
