Hot Dipped Galvanized Expanded Wire Mesh Sheet With High Tensile Strength

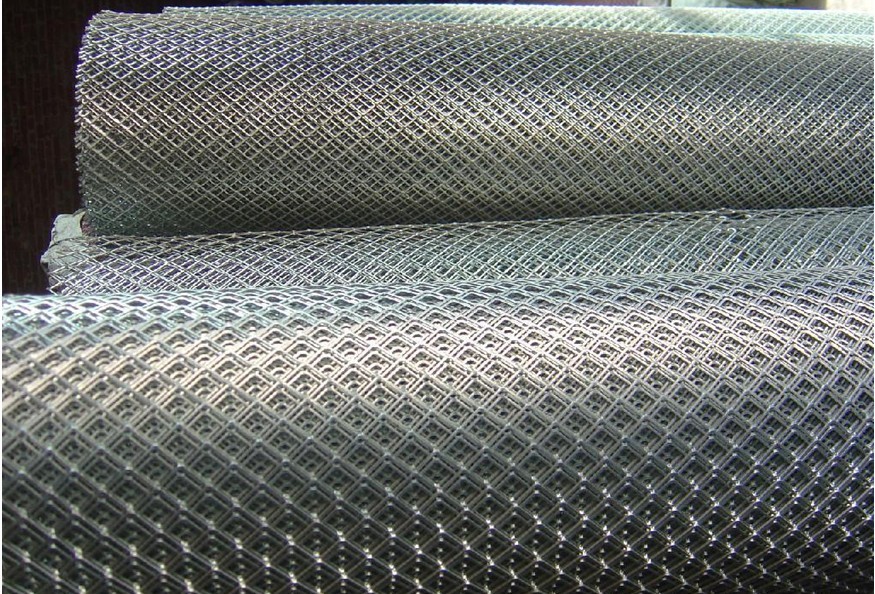

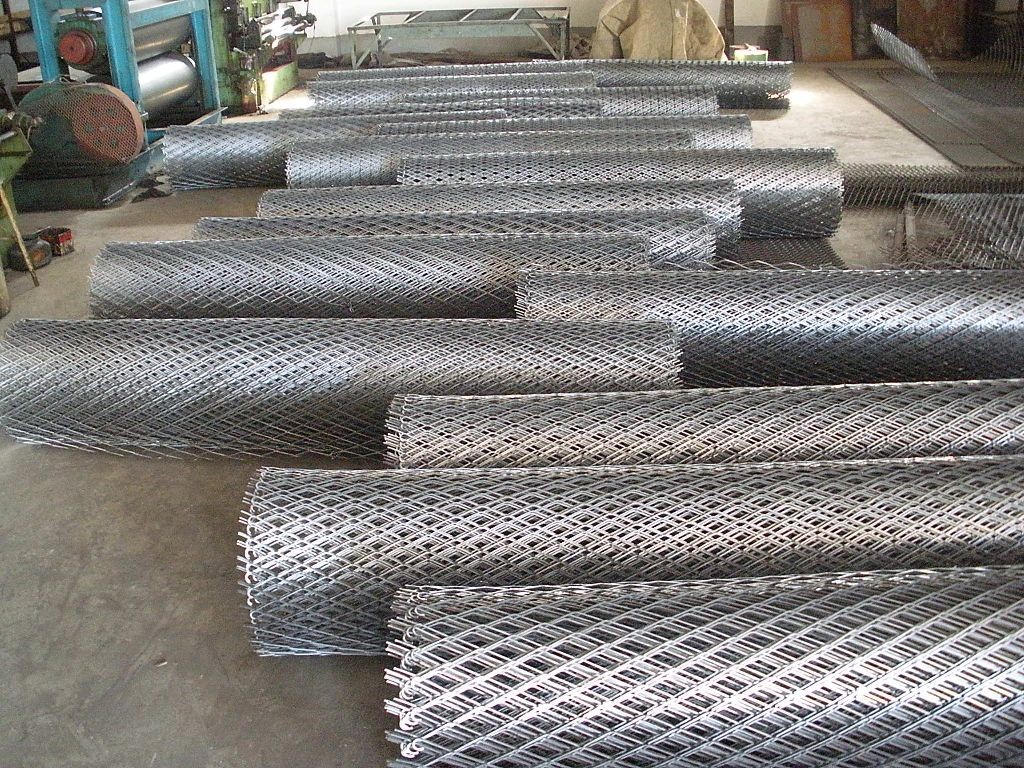

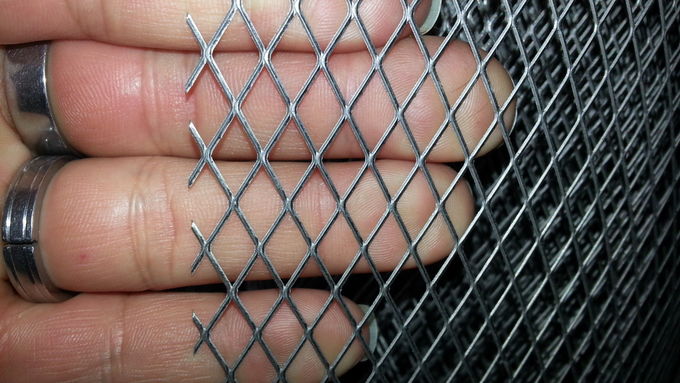

Hot dipped galvanized high tensile strength expanded metal mesh sheet,diamond shaped expanded wire mesh

Expanded wire metal is made from sheets of solid metal that are uniformly slit and stretched to create diamondshaped openings. It can be made from a wide range of materials, chiefly expanded steel mesh, aluminum expanded metal mesh,expanded stainless steel, expanded nickel and other metal , as steel reinforcement materials in petroleum, chemical industry and building decorations. Thickness available from 0.5mm to 8mm.

Expanded metal mesh is widely used as reinforcement in the construction industry, roads, bridges and civil building. It also can be used in outer wall decoration and chemical industry, as window screen, filter, etc.

Specifications of raised expanded metal mesh
Tickness(mm)	SWD(mm)	LWD(mm)	Wire stems width(mm)	Width(m)	Length(m)	Weight(kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5
4	50	100	4	2	2	11.15
4	60	120	4	2	7.5	4
4	80	180	4	2	10	3
4	100	200	4	2	12	2.5
4.5	50	100	5	2	2.7	11.15
5	50	100	5	2	2.6	12.39
5	75	150	5	1.4	10	3
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

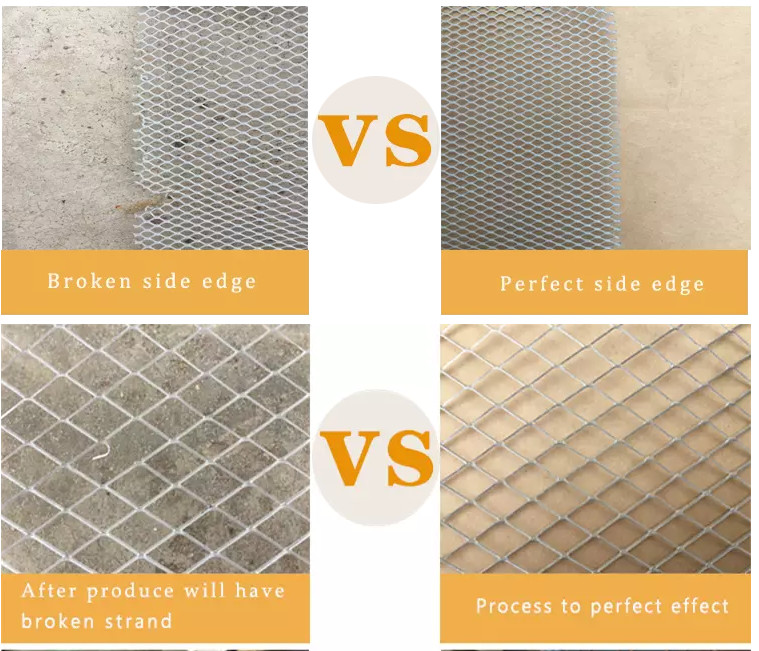

Expanded wire mesh quality comprehension

Expanded wire mesh application

FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer,located in wire mesh industrial base Anping city,Hebei province,China.

Q:To quote,what informations is needed?
A:Raw material,thread diameter, width, quantity, usage,etc.

Q: How long is your delivery time?
A: It is 7-10 days if the goods are in stock; for mass order, it based on your quantity.

Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight,
which can be deducted in following order.

Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shippment. Or 100% L/C at sight. Or 30%deposit, 70% L/C at sight.

Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation,
but the customers need to pay the cost of freight.

Q: How do you make our business long-term and good relationship?
A: Effective communication;
Qualified products, comeptitive prices, timely delivery, considerate service, etc.

Product Tags:


*From:	Your email address is incorrect!
*To:	Anping tenglu metal wire mesh co.,ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Expanded Wire Mesh
Brand Name:	Tenglu
Model Number:	Tenglu EP02
Place of Origin:	Hengshui,China
MOQ:	1 Piece
Price:	According to order quantity negotiated
Supply Ability:	10000 Square Meter/Square Meters per Day
Packaging Details:	In waterproof paper in rolls or in pallet. Custom packing available at request
Material:	Galvanized, Painting, Aluminum
Type:	Expanded Mesh
Application:	Decorative mesh, Fencing, Road
Weave Style:	Plain
Technique:	Perforated
Feature:	Corrosion Resistance,durable
