| Categories | Battery Transfer Cart |
|---|---|
| Brand Name: | BEFANBY |
| Model Number: | KPX-30T |
| Certification: | CE,SGS,ISO9001 |
| Place of Origin: | Xinxiang |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Payment Terms: | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability: | 600 sets one year |
| Delivery Time: | 40-50 days as usual delivery,30-40 days for urgent delivery |

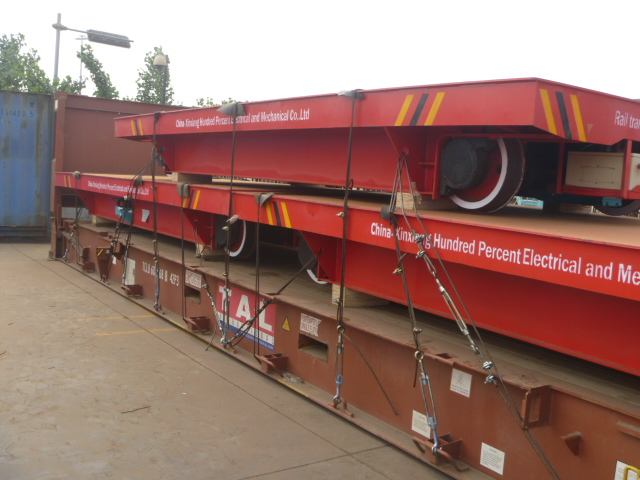

| Packaging Details: | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Shipment Port: | Qingdao/Tianjin/Shanghai |
| Application: | Production line or paper industry |
| Rated load: | 30t |
| Max. capacity: | Up to 500ton |
| Car size: | 8000*3000*500mm |
| Electrical equipment: | Siemens, Schneider, Nord |
| Exported countries: | Mexico, Australia, Singapore |
| Material: | Q235 steel |
| Wheel quantity: | 4 pcs |
| Package: | the whole aluminum rail vehicle is packed with plastic woth, the electric parts is packed by wooden crate |
| Delivery time: | 45-60 days after received advamced payment |
| Payment terms: | T/T, L/C |
| Port: | Qingdao/Tianjin/Shanghai/Ningbo |
| Operation type: | Hand pendant + remote control |
| Company Info. |
| Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
The rail transport carriage is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.
Detailed description of paper making factory rail transport carriage
This kind of rail transport carriage is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.
Production flow of rail transport carriage
Photos of rail transport carriage
Main parts of rail transport carriage
The main parts of rail transport carriage includes frame, cast wheel, motor and reducer, electric control box, and other safety device.
Steel frame Casting wheel Light & sound alarm

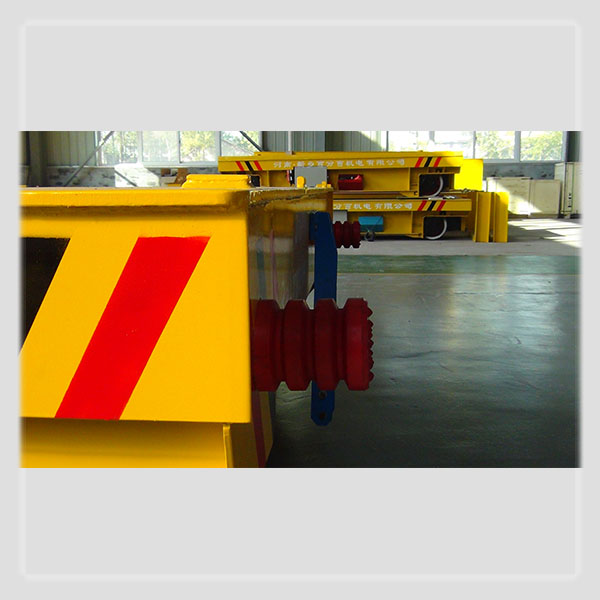

Driving mechanism Reducer Bumper
Technical parameters of rail transport carriage
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Application of paper making factory rail transport carriage

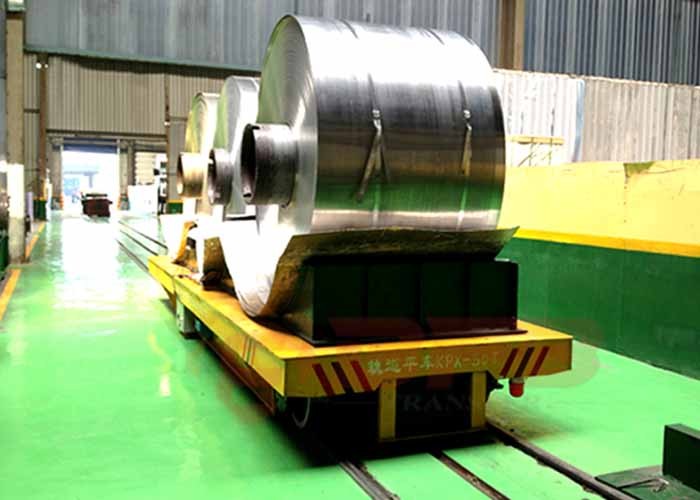

This kind of rail transport carriage is applied in paper industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.
In order to protect security, a V-frame is added on the platform.
Customer feedback
Our company
Our certificate
FAQ
2. Q: What is the using candition?
A: The environment temperature should be in level. such as
production line
3. Q: What is the working speed of the ladle car?
A: The standard running speed is 0-20m/min.
|
