Prefabricated Steel Structure Building Warehouse For Construction Site Anti Seismic

Categories Prefabricated Steel Structures
Brand Name: TPA Housing
Model Number: TPA-PSS8
Certification: ISO,SGS,BV
Place of Origin: Guangdong Foshan Lishui, China
MOQ: 1 unit
Price: Negotiable
Payment Terms: T/T, L/C at sight
Supply Ability: Within 100000 square meters per month
Delivery Time: 5-8 work days
Packaging Details: In bulk
Material: Q235 Q345 Low Carbon Steel
Type: Light steel structure
Application: warehouse
Size: Customized
Wall/Roof: Sandwich panel/Color steel sheet
Life span: Main steel structure frame is more than 50 years
Insulation: EPS, Glass wool, Rock wool, PU
Door: Rollng/sliding door
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Prefabricated Steel Structure Building Warehouse For Construction Site Anti Seismic


Product Description


Product type: Steel structure warehouse

Prefabricated Steel Structure Warehouse For Construction Site Anti Seismic


1) Building material component list

Embedded partsHigh strength boltM20,10.9S
Common boltM20
Galvanized boltM12
Shear studsM16
BraceM12
Main steel frameSteel column(Q235B)HN350X175X6X9
Wind column(Q235B)HN300X150X5.5X8
Roof beam(Q235B)HN350X175X6X9 HN300X150X5.5X8
Roof frame beam(Q235B)HN400*200*7*11
Floor main beam(Q235B)HN350X175X6X9
Floor secondary beam(Q235B)HN250X125X5X8
Tie rodØ89*3.0
Horizontal bracingØ20
Column bracingØ20
Stair[18 channel steel + 2.3mm pattern plate
Partition wall columnSquare tube100*2.0
Wall purlin(Galvanized)C160*50*20*2.0
Roof purlin(Galvanized)C160*50*20*2.0
Connecting plate4mm~20mm steel sheet
Structure steel fabrication
Ancillary materialAcetylene, oxygen, electrode
Resist rustSa2.5
PaintingAlkyd paint
MaintenanceRoof panel50mm sandwich panel(steel sheet thk:0.476+0.426mm,density:80kg/m³ )
Roof tileLighting tile
Wall panel50mm sandwich panel(steel sheet thk:0.476+0.426mm,density:80kg/m³ )
Partition wall panel50mm sandwich panel(steel sheet thk:0.476+0.426mm,density:80kg/m³ )
Floor1.0mm floor deck
Toilet partition10mm
Rolling door(automatic)W4500*H5000
Steel doorW1000*H2100/W850*H2100
Sandwich panel doorW5000*H3500
Aluminum window (thk:1.2mm)W250*H2000/W1130*H1000/W2000*H1000
Aluminum window with security mesh(thk:1.2mm)W500*H500
GutterPVC
Down pipePVC110
Trimming1.0mm galvanized /steel sheet
DecorationOffice floor tile800*800
Bathroom floor tile300*300
Outdoor fenceColumn: 80*80*1.5mm Zinc Steel Pipe
Cross pole: 40*40*1.5mm zinc steel pipe
Vertical pole: 19*19*1.2mm zinc steel pipe
Outdoor electric gate(W:7000mm*H2000mm)Column: 80*80*2.0mm Zinc Steel Pipe
Cross pole: 50*50*1.5mm zinc steel pipe
Small gate(W:800mm*H2000mm)Column: 80*80*2.0mm Zinc Steel Pipe
Cross pole: 50*50*1.5mm zinc steel pipe
Closestool&wash basinFloor-to-floor concealed closestool

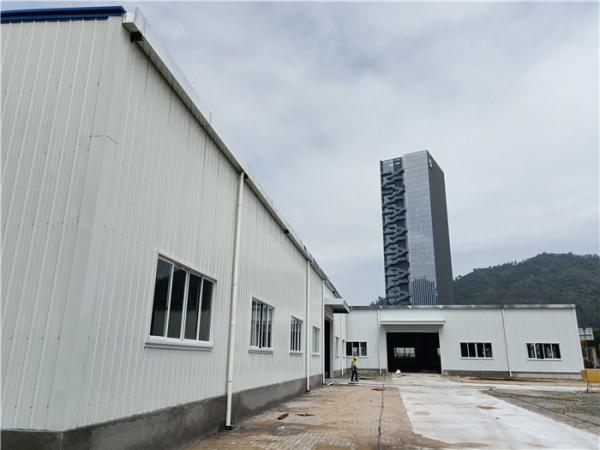

2) Product display

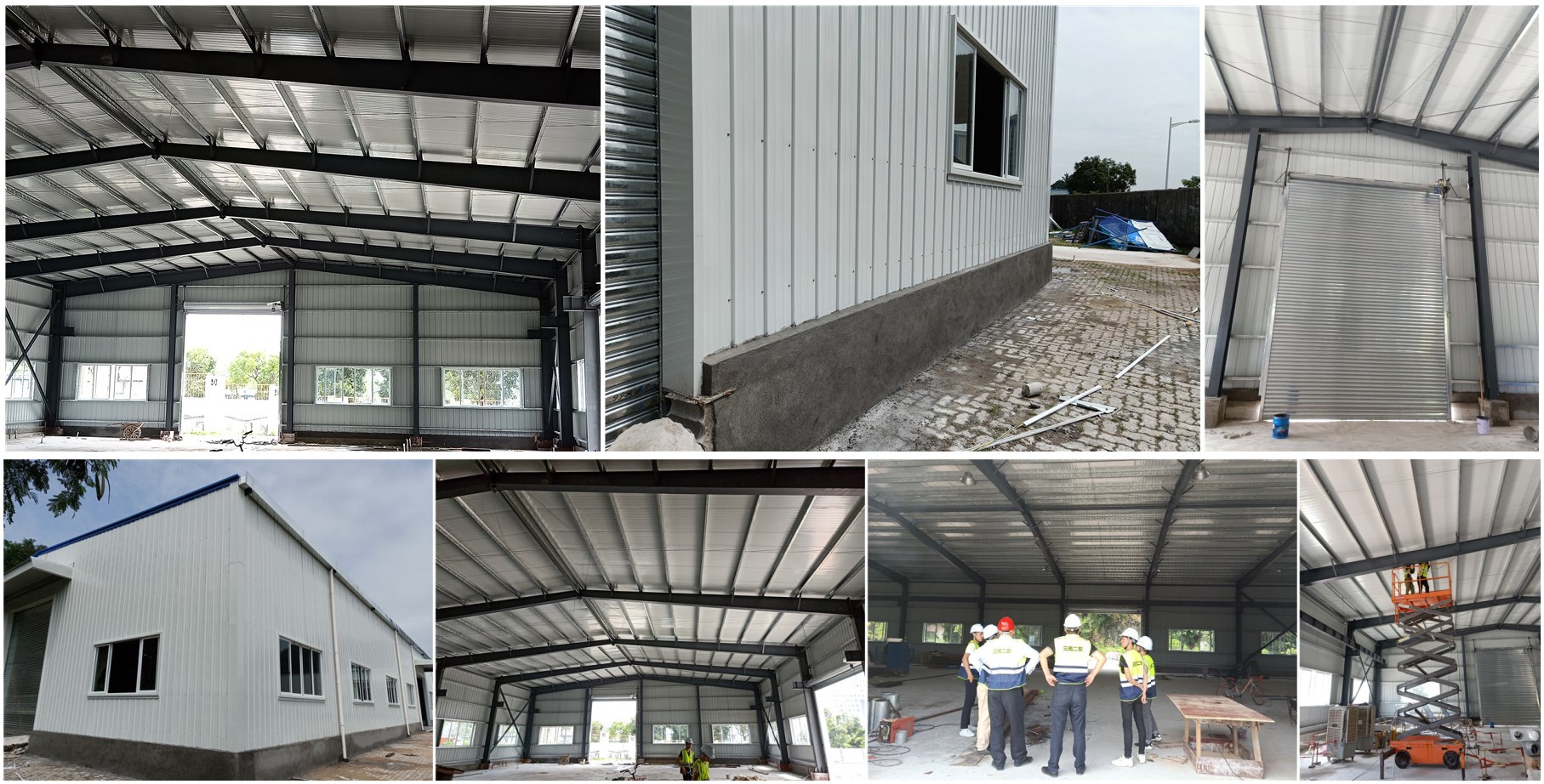

3)Steel Structure Building materials display

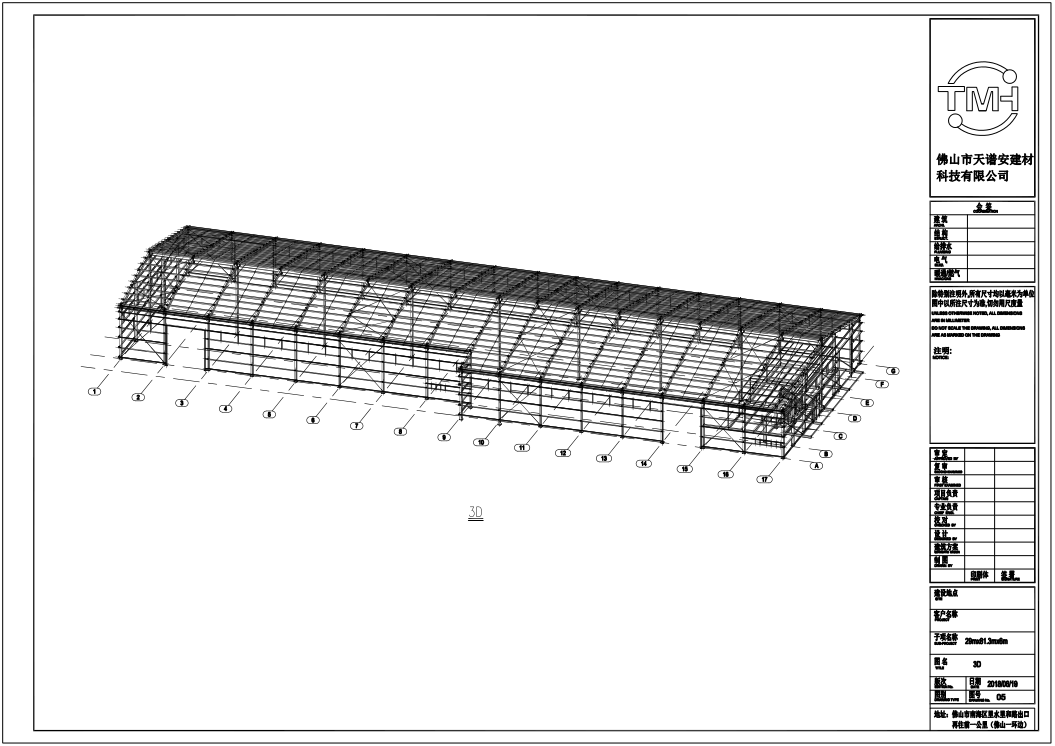

4)Steel structure warehouse plans for reference




5) Steel structure warehouse features


a. Low maintenance costs
b. Environmentally friendly, recycling.
c. Flexibility when fixing doors, windows and interior partitions
d. Steel structure construction is strong, durability and stability.
e. Steel components is resistant to termites and other destructive insects.
f. Long service life for more than 50 years
g. Fast construction ,easy installation and convenient to transport.

6) Applications


The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.




7) About us


Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.




8) Why choose us


1- Customized design service
2- Quality Assurance Service
* Safety packing
* Insurance services
* Inspection before shipment
3- After-sales service
* Engineer guide on site
* Installation team service
* Email/phone call communication

We would love to achieve a longer cooperation with you!
