Accuracy ≤ ±0.2%F•S Pneumatic Bursting Strength Tester Equipped with a Lamp for Clear Observation

Accuracy ≤ ±0.2%F•S Pneumatic Bursting Strength Tester Equipped with a Lamp for Clear Observation​

Application

Pneumatic Bursting Testers to determine the bursting stress of fabrics, including knits, woven fabric, nonwoven fabrics, laminated fabrics and other artisanal textiles, using a pneumatic test method.

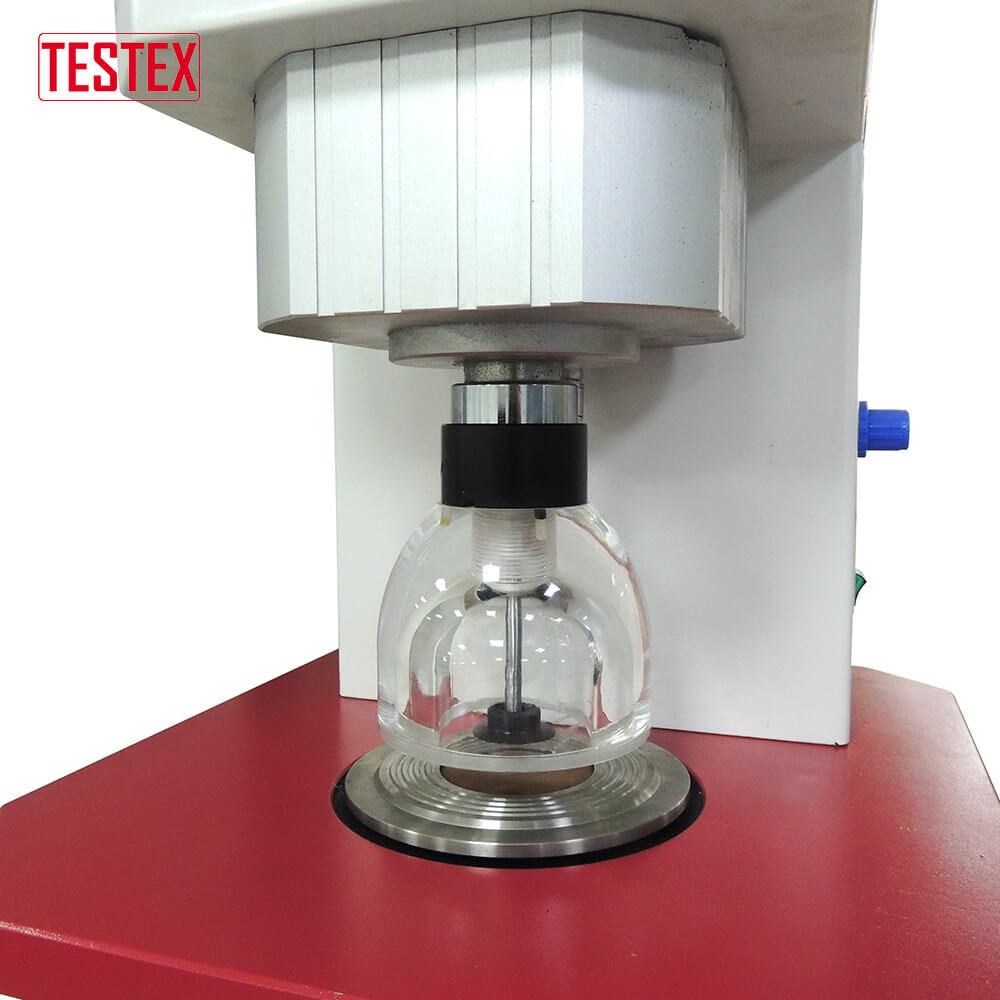

An test sample is clamped on a circular clamping ring over the expansive diaphragm; an increased pressure of air from the compressed air is applied to the underside of a diaphragm, causing the material to distension until it bursts. EOLBREAK On the Bursting software, the real time test curve is displayed. The computer can also be easily controlled with the touchscreen graphics.

Specifications

1. Burst distension up to 70mm

2. Equipped with a lamp for clear observation

3. The transparent acrylic cover ensures safe operation

4. Bursting pressure up to 1100KPa, accuracy ≤ ±0.2%F•S

5. Test Heads 100, 50, 10, 7.3 cm2 (112.8, 79.8, 35.7, 30.5 mm Dia.)

6. 4 most commonly used test areas are available and are easily shifted

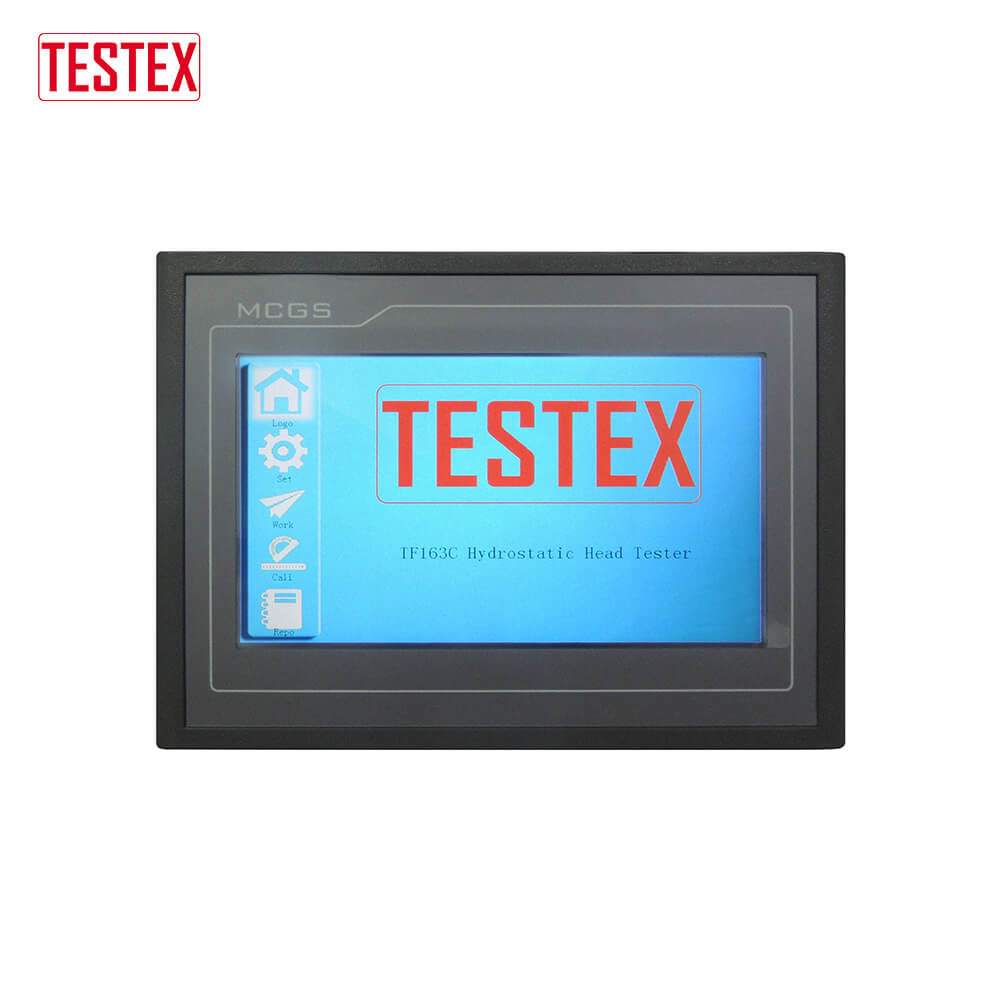

7. It can be controlled by its easy to use graphics touch-screen instead of computer

8. Automatic clamping and burst test, automatic calibration, automatic data processing, and test report output.
