| Categories | Gold Dredge Boat |
|---|---|
| Brand Name: | YONGDELI |
| Model Number: | YLGD-100 |
| Certification: | SGS OR BV |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per year |
| Delivery Time: | 60 working days |
| Packaging Details: | nude packing for the goods.We usually produce and design the dredger based on the shipping container size. |
| colour: | customized |
| Hull Material: | Q235 steel plate |
| deal capacity: | 100 cubic meter per hour |
| dredge depth: | 1---25 meters |
| gold recovery percentage: | 85-90% |
| key part: | pulsating sluice box and fixed sluice box |
| engine brand: | weichai/cummins/caterpillar |
High gold recovery 100m3/hour bucket chain gold dredger for alluvial gold mining
1 .Introduction of gold dredger
The dredging bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed, then trommel classifier, with single layer or double layer screens, will separate the gravels, clay balls, water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the pulsating sluice box and fixed sluice box( which is equipped with gold catching grass and gold catching carpet . After 2 process of gold panning, the gold recovery percentage can be upto 90%.
Our bucket chain gold dredger is very fit for the alluvial sand with gold. If the river sand with a lot of big pebbles, the bucket chain type is one perfect choice.
This kind of bucket chain gold dredger is one kind of very mature and successful products. They are widely exported to and used in Russia,Mongolia,Indonesia, Ecuador,Central Africa and other countries and regions.
2. Technical Parameters
| MODEL | CAPACITY(CBM/H) | POWER(KW) | WATER(M3/H) | DREDGE DEPTH(M) | RECOVERY |
| YLGD-100 | 100 | 65-100 | 100-200 | 1-25 | 85-90% |
| YLGD-150 | 150 | 82-120 | 150-250 | 1-25 | 85-90% |
| YLGD-200 | 200 | 97-150 | 200-300 | 1-25 | 85-90% |
| YLGD-250 | 250 | 108-200 | 250-500 | 1-25 | 85-90% |
3. Requested For Reply
a. How many cubic meter of sand do you want to deal with per hour?
b. How many meters for the dredge depth?
c. In the alluvial sand mining, the sand and stone percentage ratio? the stone size in mm?
d. the gold particle size in mm?
e. which kind of engine brand do you prefer,Weichai,Cummins or Caterpillar?

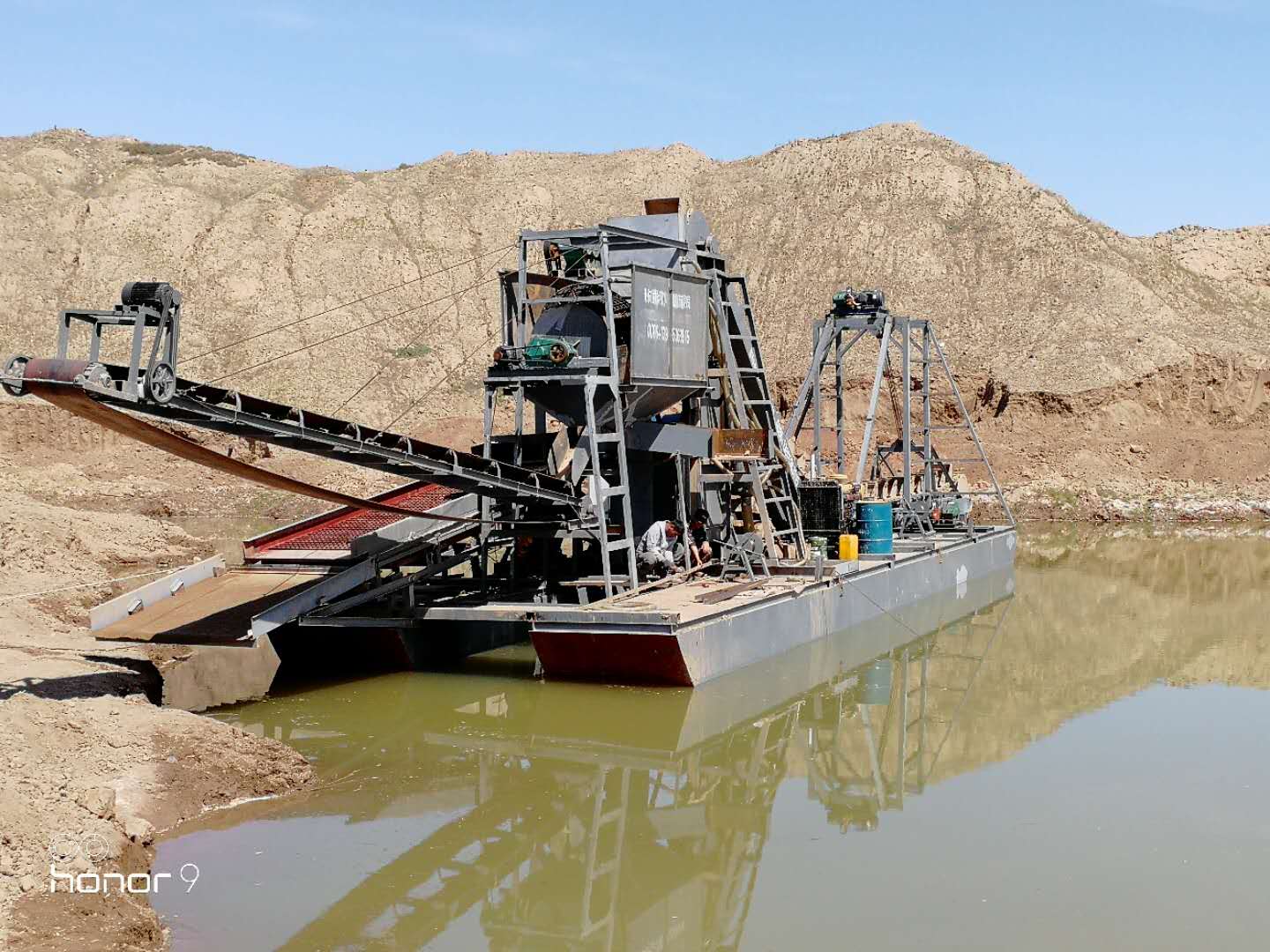

4. Successful Cases In Mongolia
|
