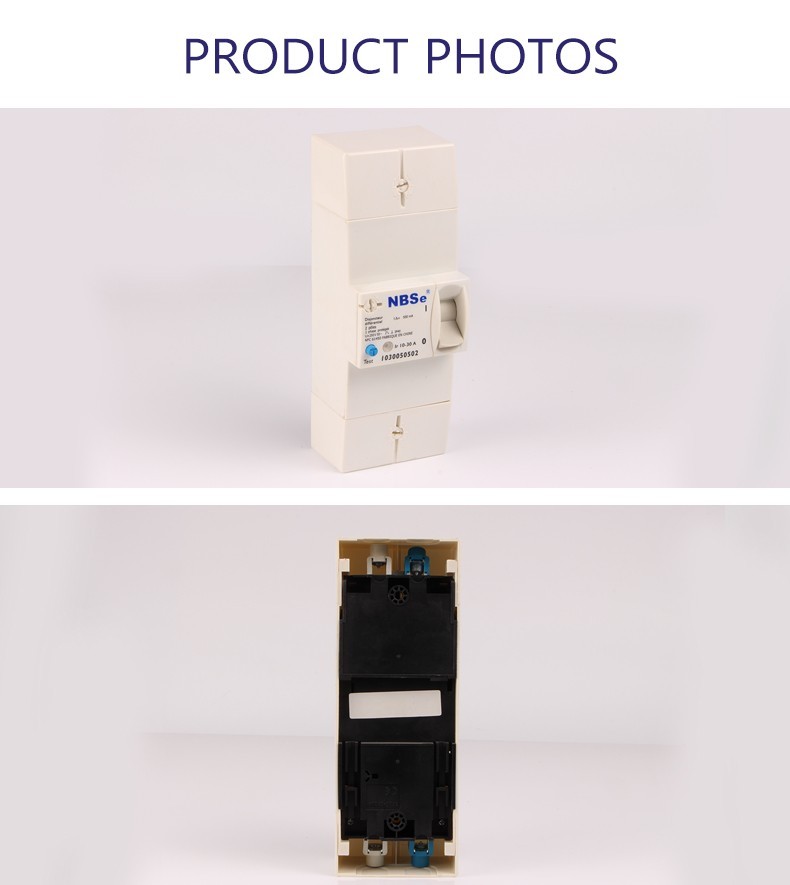

DDC 2P Differential RCBO Breaker Fireproof Shell With Anti Stealing Function

NBSe DDC RCBO 2P Differential Circuit Breaker 10-30A 500mA 10-15-20-25-30A,2 pole rcbo

1. Application

The DDC breaker is divided into 2 poles and 4 poles. It can be applied to the circuit breaker installed on the control panel of the primary equipment, and can also be applied to the control terminal of the shopping mall, base station and home power supply board.

Feature as below:

1)This product has a high level of safety protection.

2)Not affected by ambient temperature.

3)Multi-step adjustable of rated current.

4)Rated current digital display.

5)With anti-stealing function

2.Specification and Configuration

POLE: 2P, 4P
Ue: 230/400V
In: 5-15A(5, 10, 15)A;

10-30A(10, 20, 30)A;

10-30A(10, 15, 20, 25, 30)A;

30-60A(30, 45, 60)A;

60-90A(60, 75, 90)A
Breaking Capacity : 3KA

Residual current: 300mA, 500mA

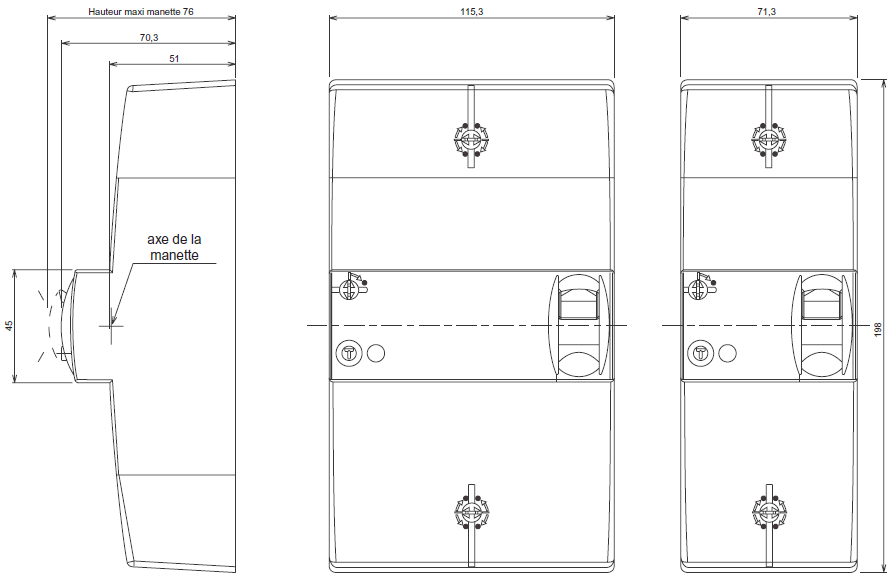

3.Outshell and installation dimensions

DDC BACO Adjustable circuit breaker.pdf
