| Categories | Stainless Steel Tubes |
|---|---|
| Brand Name: | New-Era |
| Model Number: | ASTM A269 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 500kg |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 300tons per month |
| Delivery Time: | 45-50days |
| Packaging Details: | Stainless Steel Capillary Tube Packing: antirust protection, In hexagon bundles, in wooden box |
| Keyword: | Stainless Steel Capillary Tube |
| Surface: | 180G, 320G, 400G Satin / Hairline |
| Material: | 201, 202, 304, 316, 316L Etc |
| OD Size: | 0.5mm--8mm |
| WT Size: | 0.08mm - 2mm |
| Usage: | Medical Chemical Tube |
| Length: | Max11800mm |
| Company Info. |
| NEW-ERA STEEL TUBE TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
| Standard | ASTM A554, A249, A269 and A270, A312 |
| Matrial | 201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%), 301(Ni 5%), 304 (Ni 8%, Cr
18%), 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), 430 |
| Size | OD: 0.5mm--8mm WT: 0.08mm - 2mm Length: According to Customer's Requirement |
| Surface Finish | 180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish |
| Test and Inspection | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT |
| Application | Decoration construction, upholstery, industry instrument |
Tolerance
a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring
Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield
Strength, Elongation, Hardness, Impact, Mictrostruture etc

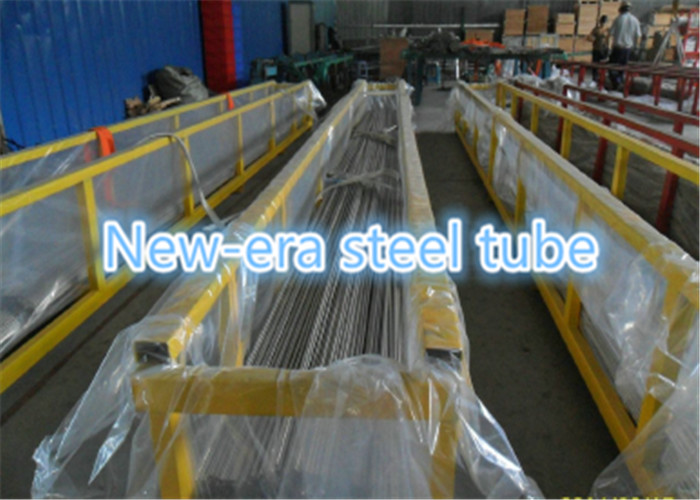

8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a
perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate
longitudinal and transversal defects.
|
