| Brand Name: | BVEM |
| Model Number: | BJV75E-377 |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD 13000-15000 SET |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600 sets per year |
| Delivery Time: | 15 work days |
| Packaging Details: | wooden case |
| Product name: | vibro float machine |
| Power: | 75 kW |
| Vibration power: | 188 kN |
| Rated current: | 75 A |
| Working pile diameters: | 700mm-1200mm |
| Generate power: | 200 KVA |
| Company Info. |
| Beijing Vibroflotation Engineering Machinery Limited Company |
| Verified Supplier |
| View Contact Details |
| Product List |
High capacity electrical vibroflot used for vibroflotation compaction engineering BJV75E-377
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) | Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) | Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV75E-377 | 75 | 148 | 1450 | 17.5 | 188 | 1828 | 377 | 3110 |

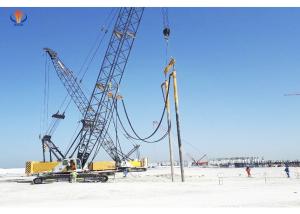

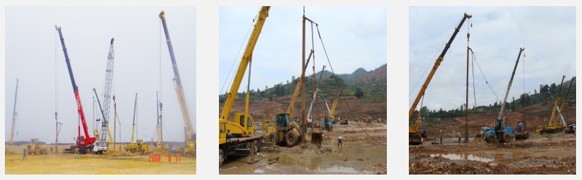

Vibroflotation
Vibroflotation is one of a typical technique which is a widely used
application for foundation soil improvement. In vibroflotation
construction, vibroflot equipment makes a joint action of
horizontal vibration and high pressure water or air shock to
compact the loose sand layer or formed in soft soil of gravel
column to compose the composite foundation with original soil
together, finally achieve the improvement of soil by load capacity,
settlement controlling as well as the anti-seismic capacity.
Vibroflotation is often used in foundation treatment of dams, oil
fields, power plants, ports, airports, bridges, etc.
BVEM profile (Beijing vibroflotation engineer machinery co.,ltd)
BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
|
