Amplitude 0-5mm Vibration Testing Equipment Vertical Electromagnetic Vibration Table

Amplitude 0-5mm Vibration Test Equipment Vertical Electromagnetic Vibration Table

Electromagnetic vibrating table Vertical (Y-axis up and down), PLC

First, the product overview

Electromagnetic vibration tables are widely used in defense, aviation, communications, electronics, automotive, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual working condition assessment and structural strength test. The product has a wide range of applications, wide application range, and remarkable and reliable test results. Sine wave, frequency modulation, frequency sweep, programmable, multiplier, logarithm, time control.

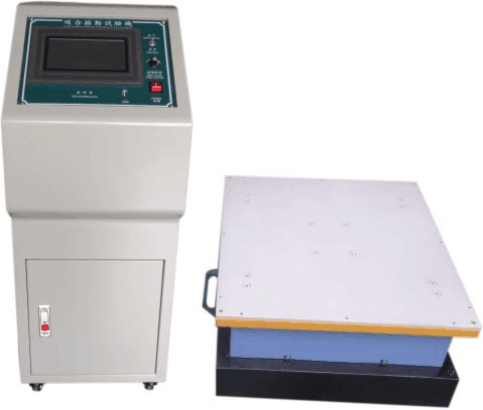

Second, the product picture

Third, technical parameters

1. Maximum test load: 0-60 kg

2. Vibration direction: vertical (up and down Y axis)

3. Countertop size: Please select the appropriate countertop according to the actual size of the tested product.

500×500 mm 750×750 mm 1000×1000 mm 1500×1500 mm

4. Amplitude: 0-5mm (random, change with frequency)

5. Sweep frequency: 1-600Hz can be set arbitrarily, the real standard back and forth frequency sweep (if you need 1 - 3000HZ can be customized price negotiation)

6. Maximum acceleration: 10G

7. Realize functions: frequency modulation, programmable, time control

8. Precision: frequency can be displayed to 0.01Hz, precision 0.1Hz

9. Programmable function: 1-600HZ, 1-8 segment can set the frequency and time arbitrarily, can be cycled

10. Multiplier function (0.01Hz): 8 segments are multiplied by 1 low to high frequency 2 high to low frequency 3 low to high then low frequency / recyclable

11. Logarithmic function (0.01Hz): 1 down to upper frequency 2 up to down frequency 3 down to up to down frequency -3 mode logarithm / recyclable

12. Vibration waveform: sine wave (half wave / full wave)

13. Time control: any time can be set (in seconds)

14. Power: 0.75 Kw

15. Power supply voltage (V): 220V 50HZ

16. Machine weight: about 100kg

Fourth, the instrument operation interface

Directory interface

Running interface

Parameter setting

Setting parameter setting

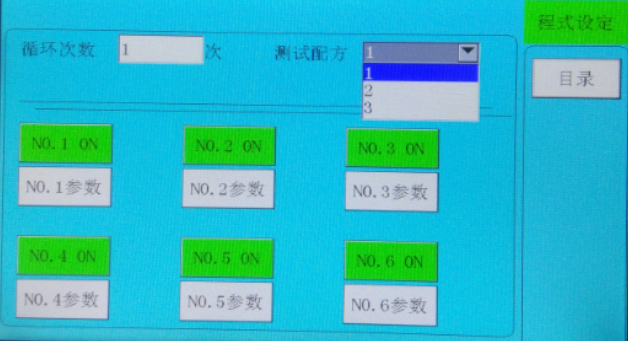

Program parameter setting

Screen setting

calibration

USB download interface
