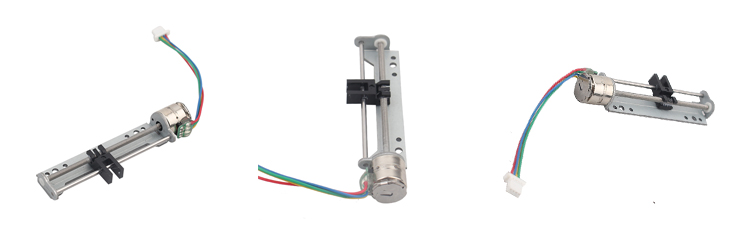

VSM10198 10mm micro stepper motor 2 phase pm stepper motor

VSM10198 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.

​Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

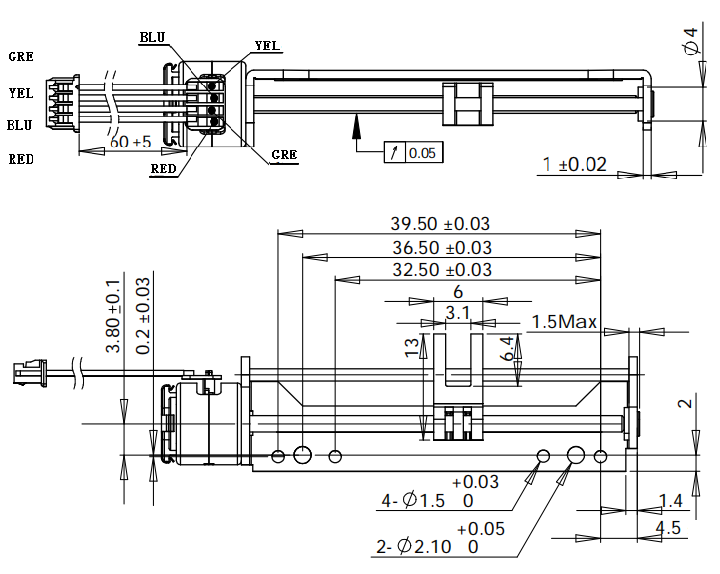

Mechanical Dimension:MM

Typical Applications

• Intelligent Security Products

• Camera Lenses

• Door Locks

• Wearable device




Specifications

Competitive Advantage

• High quality and the best price.
• Fast deliver,storage company and rich inventory
• Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

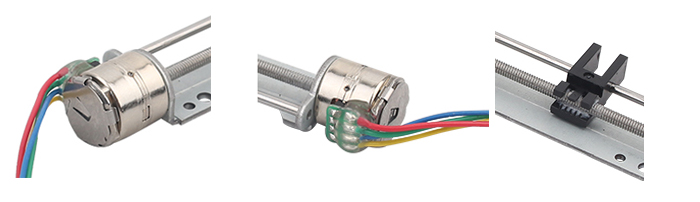

Product Detail Presentation
