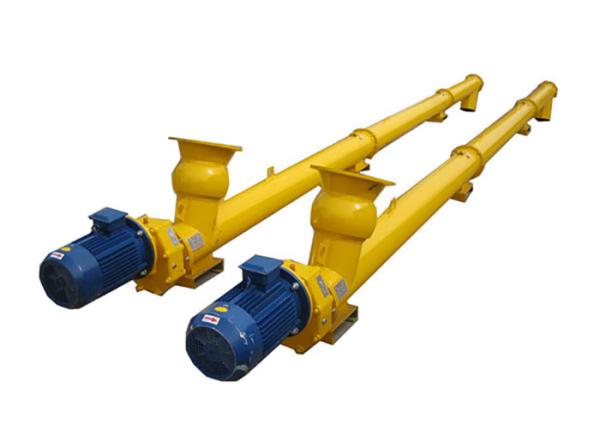

High Efficiency Conveying Equipment Spiral Conveyor Screw Converyor

High Efficiency Conveying Equipment Mineral Processing Equipment Spiral Conveyor Screw Converyor

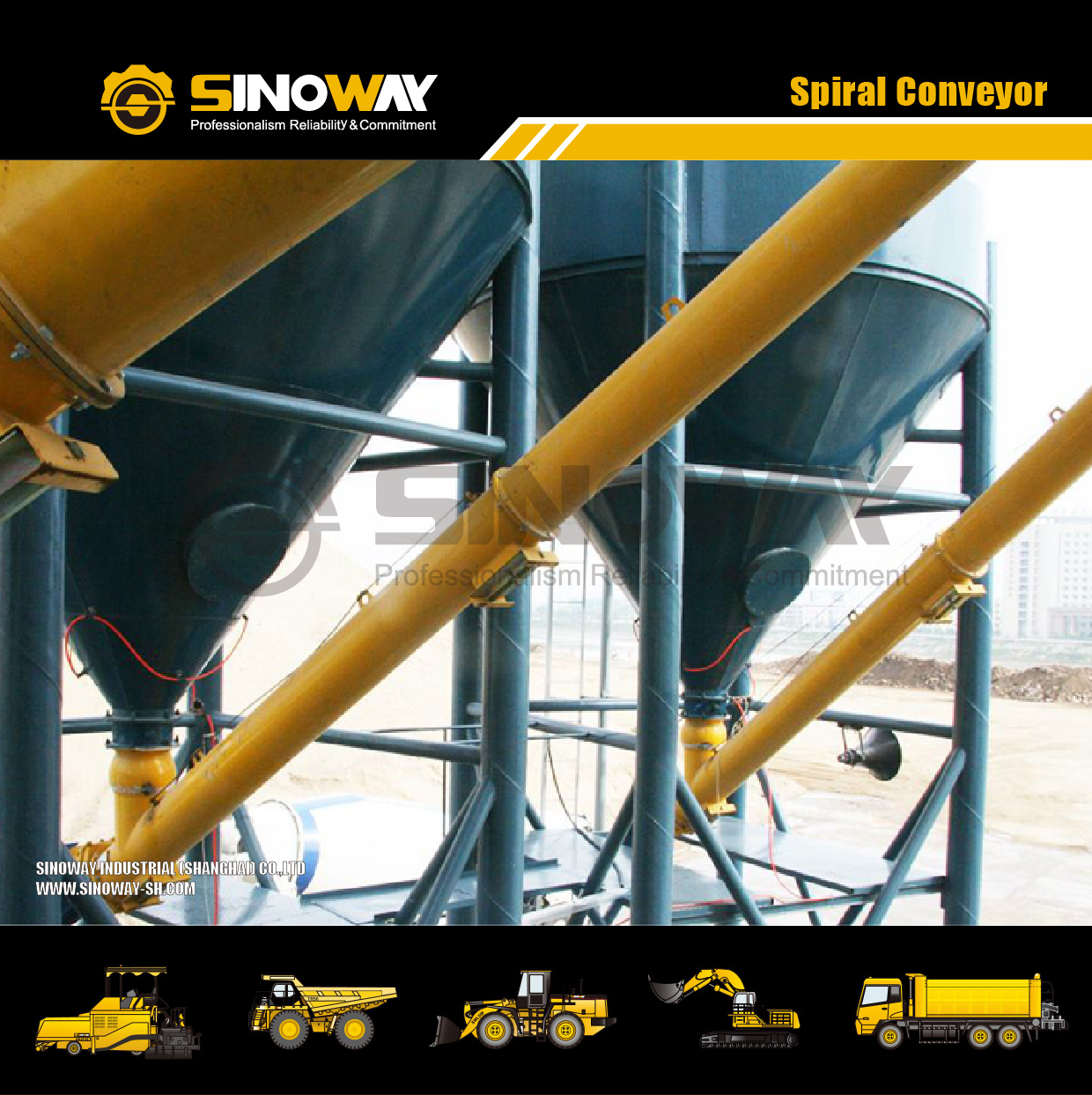

Screw conveyor is suitable for transporting all kinds of powder granular materials and small block, such as coal, gravel, lump coal and sand, cement, cereal, etc, but not suitable for conveying easy-deteriorated, stickiness, and easy-forming materials.Therefore it is always used in cement plant, chemical plant, chemical plant, factory, mine, mill, paper mill, fiber nylon factory, feed, water conservancy and etc.

Features and technology advantages

1.simple structure, small cross section size, good seal, reliable operation, low manufacturing cost,

2.convenience of intermediate loading and unloading, transportation direction can reverse, can also be transmitted at the same time two opposite direction.

3. For material in the process of conveying stirring, mixing, heating and cooling operations.

Working principle

When the material adding machine in the fixed groove, the friction material and the gravity trough, accumulation in the lower part of the slot machine material with rotating, but only in the rotating spiral blade driven by moving forward, as the rotation of the nut is not rotating screw for translational motion, and achieve the delivery the purpose of material

Specification

Model		LSY140	LSY160	LSY200	LSY250	LSY300	LSY400
Spiral Diameter(Mm)		140	163	187	238	290	365
Spiral Speed(R/Min)		300	300	260	200	175	175
Shell Diameter(Mm)		168	194	219	273	325	402
Max. Transport Length (M)		11	12	13	16	18	18
Working Angel (Α°)		0°~60°	0°~60°	0°~60°	0°~60°	0°~55°	0°~55°
Capacity(T/H)		17-9	30-20	50-32	70-53	82-60/120-85	140-110
Power (Kw)	L<7m	5.5	5.5	7.5	11	18.5	18.5
	L>7m	5.5	7.5	11	15	22	22
