High Temperature Glass Tube Instrument Both Open anti-corrosion Test tube For Medical Device Test

Categories Quartz Glass Tube
Brand Name: shengfan
Model Number: T-1
Certification: ISO9001
Place of Origin: China
MOQ: 10
Price: Negotiable
Supply Ability: 100,000 pieces per month
Delivery Time: 15 work days
Packaging Details: plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Material: SIO2>99.99%
OD: 3-300mm
Light Transmittance: >92%
Working Temparature: 1100℃
Hardness: Mose 6.5
Resistance Value: 1000 times than ordinary glass
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

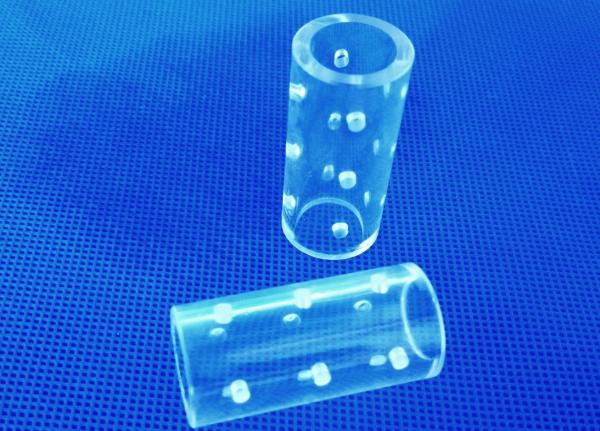

High Temperature Glass Tube Instrument Both Open anti-corrosion Test tube For Medical Device Test

High Temperature Glass Tube Instrument Both Open Anti-Corrosion Test Tube For Medical Device Test


Product Description:


Fused clear silica quartz glass tube is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.


Fused Silica Capillary Tubing Description:


Density2.2x103 kg/m3Hardness5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength4.8x107 Pa (N/m2) (7000 psi)Design Compressive StrengthGreater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus3.7x1010 Pa (5.3x106 psi)Rigidity Modulus3.1x1010 Pa (4.5x106 psi)
Softening Point1730°CAnnealing Point1215°C

1. High purity :SiO2> 99.99%.
2. Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
3. Health care and environmental protection.
4. No air bubble and no air line.
5. Excellent electrical insulator


Shengfan Quartz plate characteristic
SIO299.9%
Density2.2(g/cm³)
Degree of hardness moh’ scale6.6
Melting point1732℃
Working temperature1100℃
Max temperature can reach in a short time1450℃
Visible light transmittanceAbove 93%
UV spectral region transmittance80%
Annealing point1180℃
Softening point1630℃
Strain point1100℃


Application of standard clear quartz tube:

halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.


Company profile:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China.


With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO., LTD
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.

FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
