DF56 Series Micro Coaxial Cable 26P DF56-26-0.3SD Connector to Mating Connector DF56-26S-0.3V

Categories Micro Coaxial Cable
Brand Name: RY
Model Number: DF56
Certification: CE,ROHS
Place of Origin: China
MOQ: Quantity quantity can be negotiable
Price: Most favorable
Payment Terms: L/C, T/T,Paypal, Western Union,
Supply Ability: 10000pcs
Delivery Time: 10-20 days upon receipt of payment
Packaging Details: PE inner, carton outer
Product Name:: Hirose 0.3mm Pitch DF56-26P-0.3SD 30pin Micro Coaxial Lvds EDP Cable
Cable Connector:: DF56-26P-0.3SD
Item:: 30 Pin
Length:: Customize
Contact Pitch:: 0.3mm Pitch
Board Connector:: DF56-26S-0.3V
Service:: Design
Number Of Positions:: 26, 30, 40, 50
High Light:: DF56 Series Micro coaxial cable connector, 26P Micro coaxial cable connector, DF56-26-0.3SD Micro coaxial cable connector
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

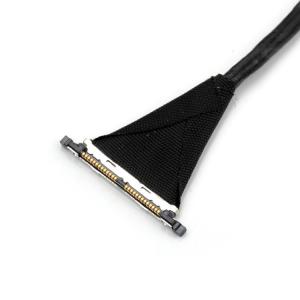

DF56 Series Micro Coaxial Cable 26P DF56-26-0.3SD Connector to Mating Connector DF56-26S-0.3V


DF56 Series Micro Coaxial Cable 26P DF56-26-0.3SD Connector to Mating Connector DF56-26S-0.3V


ItemSpecificationConditions
1. Insulation resistance50MΩ min.100V DC
2. Withstanding voltageNo flashover or insulation breakdown100Vrms AC / 1 minute
3. Contact resistanceSignal: 80mΩ max, Ground: 80mΩ max100mA (DC or 1,000Hz)
4. VibrationNo electrical discontinuity of 1μs or longerFrequency: 10 to 55Hz, amplitude of 0.75mm, 10 cycles on each of 3 axes
5. HumidityContact resistance (change from initial value): 50mΩ max, Insulation resistance: 25MΩ min.96 hours at 40 ±2°C, humidity of 90 to 95%
6. Temperature cycleContact resistance: 50mΩ max, Insulation resistance: 25MΩ min.-55°C → 5 to 35°C → 85°C → 5 to 35°C, 5 cycles
7. DurabilityContact resistance (change from initial value): 50mΩ max.20 cycles
8. Resistance to soldering heatNo deformation or affecting performanceReflow: Recommended temperature profile, Manual soldering: 350°C for 3 seconds

Product advantages:
Board-to-thin wire coaxial connector with 0.3 mm pin pitch, small assembly height, small board footprint, enhanced shielding and ground connection.
application:
1.Digital video camera
2.Drone
3. Surveillance camera
Recommended models:
DF56-26P-0.3SD (51)
DF56-30P-0.3SD (51)
DF56-40P-0.3SD (51)
DF56-50P-0.3SD (51)

Our Company:


RY Electronic Technology Co., Ltd., with ten years of rich experience, is a company focusing on the design, development and production of customized cable and connector products. Our product range covers: FFC/FPC cables, flat flexible ribbon cables, LVDS cables, custom wiring harnesses, JST wiring harnesses Molex cable assemblies, circular connectors, ISOBUS connectors, micro coaxial connectors, etc.


We have been deeply involved in the industry for many years and have accumulated rich experience and expertise. We are committed to providing customers with high-quality and reliable customized solutions. If you need personalized customized cable and connector products, please contact us, we look forward to providing you with excellent service and product quality.


Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. You'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
