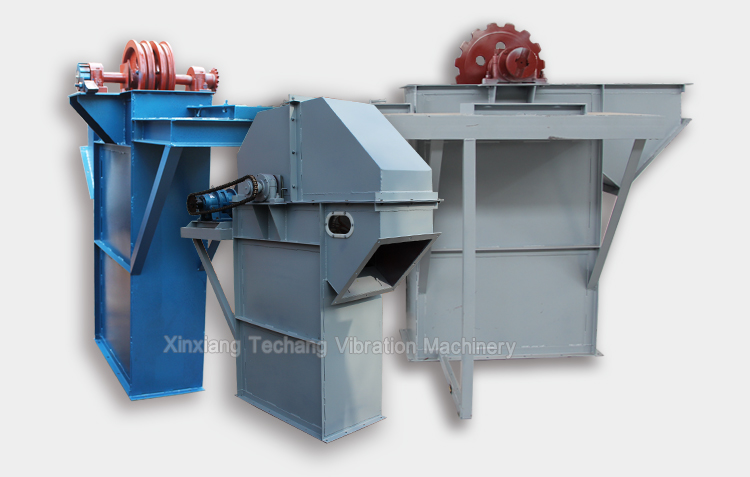

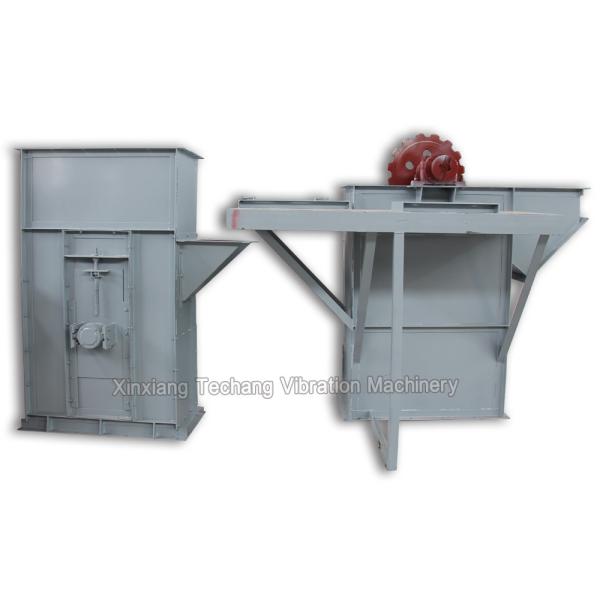

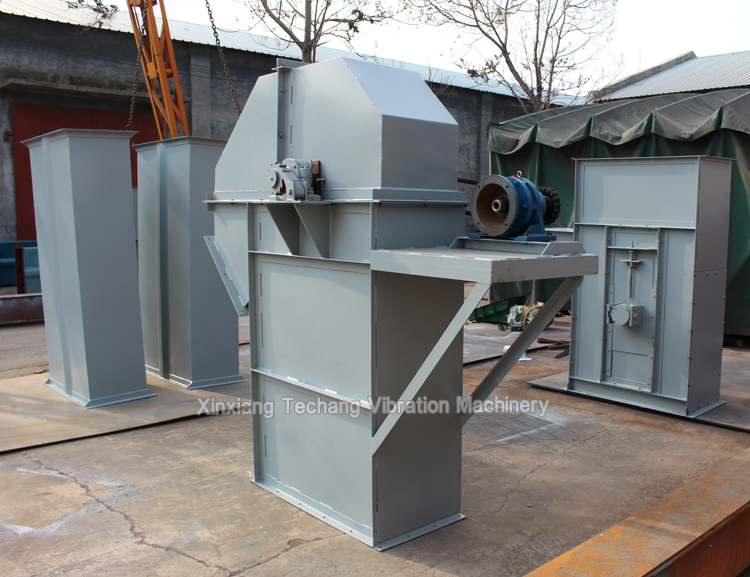

Non Standard NE Type Plate Chain Bucket Elevator With Low Energy Consumption

Non-standard Design NE Plate Chain Type Hoisting Height Bucket Elevator is designed for vertical elevating for bulk materials of powders, granular, small blocks, and abrasive rough materials, such as fly ash, slag, limestone, cement raw materials, cement clinker, cement, coal, dry clay, etc. The materials temperature is lower than 250℃ generally, elevating height reach to 40 meters.

Non-standard Design NE Plate Chain Type Hoisting Height Bucket Elevator adopts plate chain as the traction part, plate chain is made of high strength alloy steel plate chain which is Wear resistant and reliable material.

Introduction

Non-standard Design NE Plate Chain Type Hoisting Height Bucket Elevator is a continuous conveying machine that vertically lifts materials by using a series of hoppers fixed uniformly on the unended traction members.

Non-standard Design NE Plate Chain Type Hoisting Height Bucket Elevator is one of the most widely used vertical lifting equipment, this machine is suitable for medium, large and abrasive materials (such as limestone, cement clinker, gypsum, coal) vertical transport, material temperature in 250℃ below.

Non-standard Design NE Plate Chain Type Hoisting Height Bucket Elevator consisits of hoppers, actuators, top and bottom rollers (or sprockets, tape, traction chains), tensioning devices and casings, etc.

Advantages

1. Large elevating capacity of 50~ 800m3/h.
2. Application widely, Not only can elevate general powder, the small particle material, but also can elevate abrasive rough materials.
3. Low driving power, low energy consumption, bucket elevator adopts inflow feeding, gravity induced discharging, and use large volume bucket, no returning and digging materials, less reactive power.

Main Features

1. Good tightness, less environmental pollution.
2. Easy to operate and maintain with few wearing parts.
3. Low operating cost, very low operating cost due to less energy saving and maintenance.
4. Reliable operation and advanced design principle ensure the reliability and good airtightness of the whole machine.Less environmental pollution.
5. Structure port model, high precision.The shell is flanged and pressed in the middle, and then welded, with good rigidity and beautiful appearance.
6. Small mechanical size, compared with the same amount of other kinds of hoist, this hoist mechanical size is small.
7. Large conveying capacity, this series of elevator has more than NE15~NE800 specifications.Lifting capacity range is 15~800m3/h.
8. Easy to operate, less maintenance and wearing parts.The conveying chain is sleeve roller chain, which is used for vertical lifting of all kinds of powder and lumps.
