| Categories | Diamond Aluminum Sheet |
|---|---|
| Brand Name: | Dongchong |
| Model Number: | 1060 1050 |
| Certification: | ISO,MTC,MSDS,ROHS,REACH,SGS |
| Place of Origin: | Chongqing ,Dongchong |
| MOQ: | 500-5000kg for different product |
| Price: | negotiable |
| Payment Terms: | TT/LC |
| Supply Ability: | 10000 Tons per month |
| Delivery Time: | 2-3days for stock , 7-10days for normal size .25-30days for customized size |
| Packaging Details: | Wooden pallet , Wooden Box |
| Grade: | 1050 1060 |
| Temper: | O-H112, H12. H14. H16. H18. H24. H26 |
| Usage: | Anti-slip plate |
| Standard: | GB/T3880,GB/T3190,ASTM-B209 |
| Surface finish: | Plain,Anodized,Polish,Mill finish,Powder Coated |
| Packing: | Wooden Pallet |

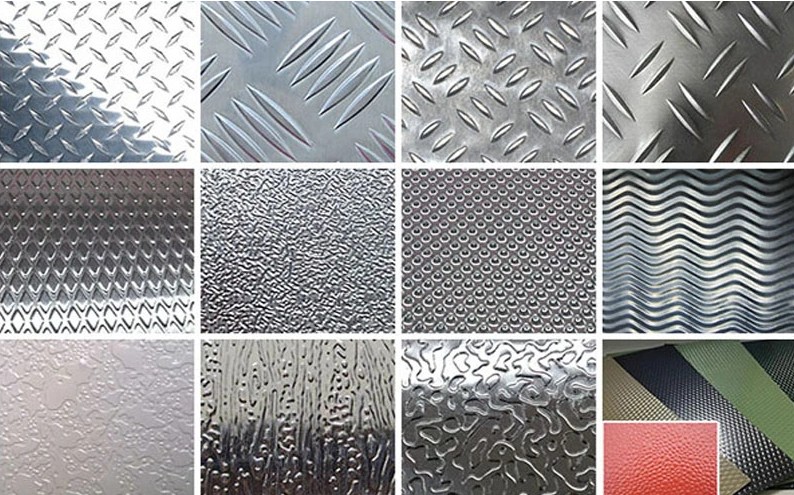

Well Designed Diamond Stucco Embossed Aluminum sheet 0.8mm for
Wholesale
Production Description
| Aluminium Tread plate | |||||||||
| Alloy | 1050/1060/1100/3003/5754/5083/6061/6063/6060/6082/8011 | ||||||||
| Temper | H14,H18,H24,H32 ,H112, H114, T4,T6 ,T651,O | ||||||||
| Thickness (mm) | 0.4mm to 20mm | ||||||||
| Width (mm) | Up to 1800mm | ||||||||
| Length (mm) | Up to 6000mm | ||||||||
| Standard | GB/T3880-2012 | ||||||||
| MOQ | 5ton | ||||||||
| Application | 1)Decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall | ||||||||
| 2)Household appliances: refrigerators, microwave ovens, audio equipment, etc. | |||||||||
Technical Property
| Alloy | Temper | Thickness(mm) | Tensile strength(Mpa) | Yeild strength(Mpa) | Elongation(%) |
| Min | |||||
| 1060 | 0 | >0. 20 — 0, 30 | 60—100 | 15 | 15 |
| >0.30—0,50 | 18 | ||||
| >0. 50-1. 50 | 23 | ||||
| >1. 5-6.00 | 25 | ||||
| >6. 00 — 80, 00 | 25 | ||||
| H12 H22 | >0.50 —1,50 | 80 — 120 | 60 | 6 | |
| >1. 50 — 6,00 | 12 | ||||
| H14 H24 | >0. 30 — 0, 50 | 95-135 | 70 | 2 | |
| >0.50 — 0. 80 | 2 | ||||
| >0. 80—1. 50 | 4 | ||||
| >1.50 — 3.00 | 6 | ||||
| >3.00 — 6. 00 | 10 | ||||
| H16 H26 | >0.20-0. 30 | 110 — 155 | 75 | 1 | |
| >0. 30 — 0.50 | 2 | ||||
| >0. 50 — 0. 80 | 2 | ||||
| >0.80 〜1.50 | 3 | ||||
| >1. 50 — 4. 00 | 5 | ||||
| H18 | >0. 20 — 0.30 | 125 | 85 | 1 | |
| >0. 30 — 0, 50 | 2 | ||||
| >0.50 — 1.50 | 3 | ||||
| >1,50-3.00 | 4 | ||||
| H112 | >4. 50〜5. D0 | 75 | 10 | ||
| >6. 00 — 12. 50 | 75 | 10 | |||
| >12*50 — 40.00 | 70 | —— | |||
| >40.00-80.00 : | 60 | ||||
| Alloy | Temper | Thickness(mm) | Tensile strength(Mpa) | Yeild strength(Mpa) | Elongation(%) |
| Min | |||||
| 1O5OA | 0 | >0. 20—0.50 | 60-100 | 15 | |
| >0,50 — 1,50 | 20 | ||||
| >0.8-1.5 | 20 | 25 | |||
| >1.5-6.0 | 28 | ||||
| >6. 00—50, 00 | 30 | ||||
| H12 | >0.20 — 0. 50 | 80-120 | 2 | ||
| >0.50 — 1.50 | 65 | 4 | |||
| >1. 50 — 3.00 | 5 | ||||
| >3.00 — 6.00 | 7 | ||||
| H22 | >0. 20 — 0. 50 | 80 | 4 | ||
| >0. 50—1. 50 | 65 | 5 | |||
| >1. 50 — 3. 00 | 6 | ||||
| >3. 00 — 6. 00 | 11 | ||||
| H14 | >0. 20 — 0.50 | 95-130 | 2 | ||
| >0. 50 — 1. 50 | 75 | 3 | |||
| >1.50 — 3.00 | 4 | ||||
| >3.00 — 6. 00 | 5 | ||||
| H24 | >0. 20—G. 50 | 95 | 3 | ||
| >0. 50—1.50 | 75 | 4 | |||
| >1.50 — 3.00 | 5 | ||||
| >3.00—6. 00 | 8 | ||||
| H16 | >0.20 — 0. 50 | 120-150 | 85 | 1 | |
| >0, 50 — 1.50 | 2 | ||||
| >1. 50 — 4. 00 | 3 | ||||
| H26 | >0.20 — 0. 50 | 120 | 2 | ||
| >0, 50 — 1.50 | 3 | ||||
| >1. 50 — 4. 00 | 85 | 4 | |||
| H18 | >0. 20—0.50 | 130 | 1 | ||
| >0. 50 — 1. 50 | 2 | ||||
| >1. 50 — 3. 00 | 3 | ||||
| H112 | >4. 50— 12. 50 | 85 | 45 | 10 | |
| >12,50—75,00 | 80 | 45 | 10 | ||
| Alloy | Temper | Thickness(mm) | Tensile strength(Mpa) | Yeild strength(Mpa) | Elongation(%) |
| Min | |||||
| 3003 | O H111 | >0. 20—0. 50 | 95-135 | 35 | 15 |
| >0. 50 — 1. 50 | 17 | ||||
| >1. 50 — 3. 00 | 20 | ||||
| >3.00 — 6. 00 | 23 | ||||
| >6.0-12.5 | 24 | ||||
| >12.5-50 | |||||
| H12 | >0. 20—0. 50 | 120-160 | 90 | 3 | |
| >0. 50 — 1. 50 | 4 | ||||
| >1.50 — 3.00 | 5 | ||||
| >3. 00 — 6. 00 | 6 | ||||
| H14 | >0. 20 — 0. 50 | 145-195 | 125 | 2 | |
| >0. 5- 50 | 2 | ||||
| >1. 50 — 3. 00 | 3 | ||||
| >3. 00—6.0 | 4 | ||||
| H16 | >0. 20 — 0. 50 | 170-210 | 140 | 2 | |
| >0.50 — 1.50 | 3 | ||||
| >1. 50—4. 00 | 3 | ||||
| H18 | >0. 20 — 0. 50 | 190 | 170 | 1 | |
| >0. 50—1. 50 | 2 | ||||
| >1. 50 — 3. 00 | 2 | ||||
| H22 | >0. 20—0. 50 | 120-160 | 80 | 6 | |
| >0. 50 — 1.50 | 7 | ||||
| >1.50 — 3.00 | 8 | ||||
| >3. 0—6.0 | 9 | ||||
| H24 | >0. 20—0. 50 | 145-195 | 115 | 4 | |
| >0. 50 — 1.50 | 4 | ||||
| >1.50 —3. 00 | 5 | ||||
| H26 | >0. 20 — 0. 50 | 170-210 | 140 | 2 | |
| >0.50—1.50 | 3 | ||||
| >1.50 — 3. 00 | 3 | ||||
| H28 | >0,20 — 0,50 | 190 | 160 | 2 | |
| >0. 50〜L 50 | 2 | ||||
| >1. 50—3. 00 | 3 | ||||
Aluminum Diamond Sheet Advantages
1. Accurate size, good anti-slip effect,wide range of applications
2. Strong plasticity, easy forming and excellent processing performance.
3. Embossed aluminum sheet can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability
5. The surface quality of aluminum checker plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.
Application
1, The advantages of tread plate are slip resistant, corrosion
resistant, hygienic, protective and attractive.
2, Tread plate can be found in parking lots, garages, stairways,
step ladders, elevators, loading docks, warehouses, distribution
centers, hospitals, factories, ships, floating docks, refrigerator
trucks, walk-in freezers, elevators, walkways, handicapped access
ramps, truck tool boxes, trailers, and much more.

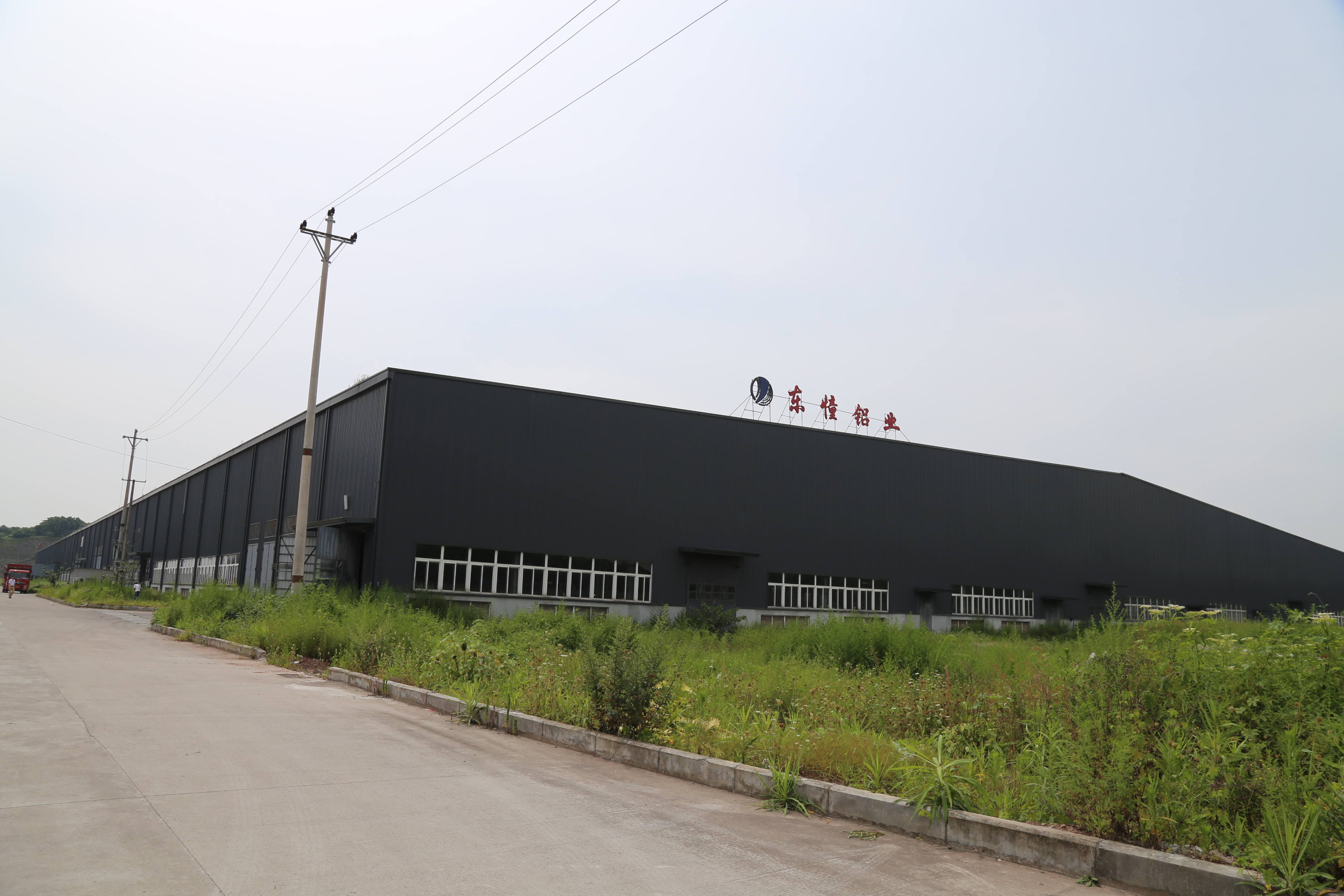

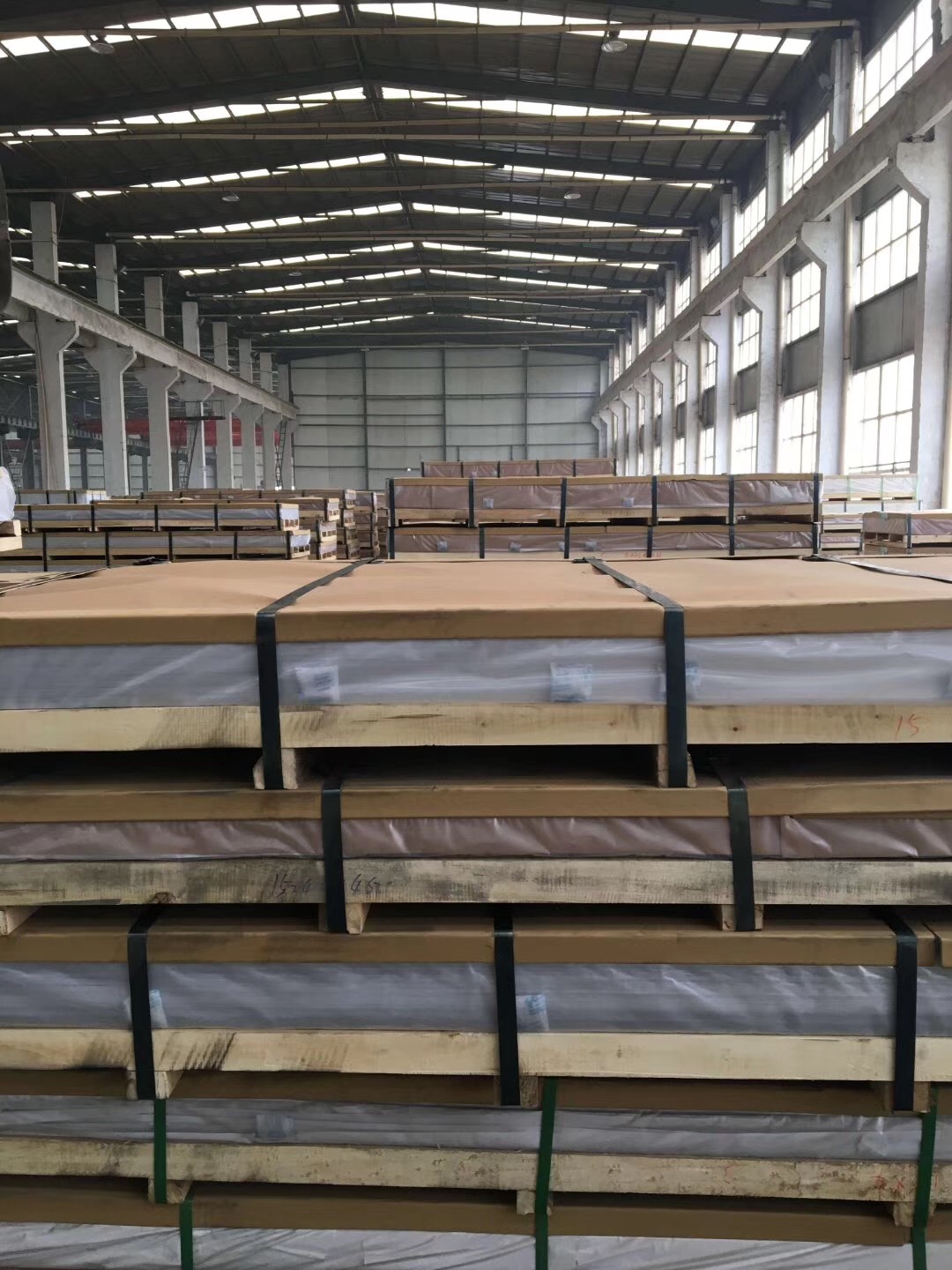

Company Introduction
Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium
products with well-equipped,experienced work team.Our company is
equipped with international advanced aluminum production lines. We
also own press machine, double-sided milling, cutting machine,
recoiler, grinding machine, quenching furnace, tension
pre-stretching machine, annealing furnace, smelting furnace machine
and so on. We mainly provide aluminum and its alloy sheets, plates,
strips, circles, foils, embossed coils, colorful painted aluminum
coils, sheet products, etc.With a wide range, good quality,
reasonable prices and stylish designs, our products can meet most
of all customer needs.Our company established in 2002 and have been
in aluminium indurstry for more than 15 years.We have our own brand
and customized services are available too.We are an ISO9001:2008
certified company and our QC staff members have ten years'
experience in this area. To maintain a strict QC system, we not
only utilize precision testing instruments but also continuously
train our QA personnel regarding the latest testing principles.We
have established long term business relationships with customers in
many countries and areas in the world, including the USA, Canada,
Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue
providing high quality products and better services for our
customers, and welcome you to visit our company and establish good
business relationships with us.
|
