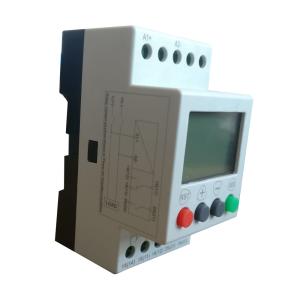

12V / 24 - 48V / 110 - 240V Single Phase Voltage Monitoring Relay For Compressors

GINRI Over Under Voltage Relay 24V overvoltage under voltage protection relay

The Features of SVR10000

-- Powered by the measuring circuit

-- Built-in LCD and keypad afford a precise,digital setting

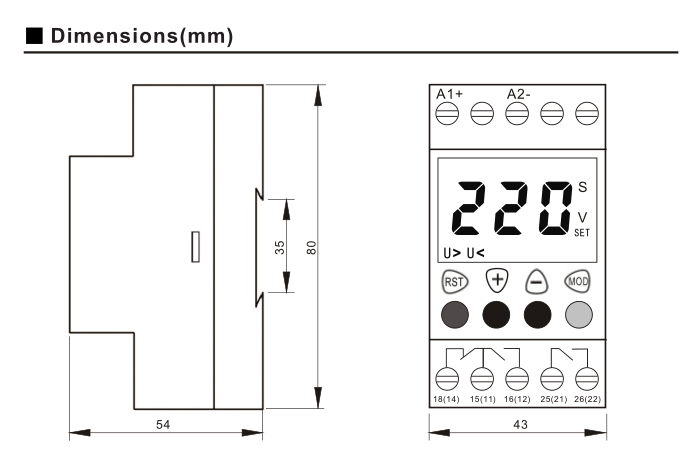

-- Compact modular 43mm housing

-- Adjustable over- and undervoltage threshold

-- Independent adjustable delay time for overvoltage, undervoltage

-- 1 CO & 1NC contacts

-- Fault recording with last 3 faults

♦ Protective Functions

-- Overvoltage

-- Undervoltage

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Approvals

• CE • CCC

♦ Technical data

Due to short-circuit faults and other reasons, the line voltage will be greatly reduced or even disappeared in a short time. It can cause damage to wiring and electrical equipment. For example, the motor is fatigued and blocked, thereby generating an overcurrent that is several times the rated current, and the motor is burned out; when the voltage is restored, the self-starting of a large number of motors causes the voltage of the motor to be greatly reduced, causing a hazard.

The voltage that causes the motor to sink is called the threshold voltage. When the line voltage is reduced to the threshold voltage, the action of the protection device is called undervoltage protection, and its task is mainly to prevent the device from being burnt due to overload. When the voltage of this circuit is lower than the threshold voltage protection device, it is called voltage loss protection. Its main task is to prevent the motor from starting.

GINRI POWER AUTOMATION CO.,LTD. is a professional production voltage phase sequence protection device (and name: three-phase power monitor), and PLC output zoom Board, and smart type motor integrated protection device, and industrial parts manufacturers, technology development team in elevator industry, and refrigeration industry, and crane industry, environmental equipment, mechanical NC industry and the industrial following insurance industry, field has more than 10 years practice experience, has development out variety price economic and function excellent of products. CQC product quality system by China Quality Centre (3C) certification and CE certification, products in the manufacturing process in strict accordance with the ISO9001 quality assurance system requirements and professional technical and service support.

Voltage phase-sequence protection for many years (equipment, refrigeration equipment, crane (passenger and goods) elevators, control of DC power supply system (Cabinet) screens, precision air conditioners, room air conditioners, electric hoist, boiler equipment, laser equipment, parking equipment, cranes, compressors) and so on using the run.

PLC output amplifiers (environmental protection equipment, numerical control and automation equipment, automobile, plastic machinery, hydraulic machinery, ceramic foam machinery, woodworking machinery, machinery) and so on using the run.

Years of integrated Intelligent motor protector (power plants, paper mills, steel mills, aluminium plants, cement plants, sewage treatment plants, coal preparation plants, refineries, petrochemical plants), and so on using the run.

Product quality is stable and safe, reliable, and earned a solid market position in the market and a high reputation in the industry, received unanimous recognition and praise of our customers.

Ginri company always adhere to "scientific management as the core, the user needs for the Centre to focus on product quality, meticulous service is sincere," the spirit of enterprise, please call us from all walks of life, thank you!
